RM Stelflow 300L High Gain Indirect Cylinder - TRSMVH-0300LFC
Shipping time: 2–7 days
Please call us for precise delivery dates.
Description
The RM Stelflow 300L High Gain Indirect Cylinder (TRSMVH-0300LFC) is a robust indirect hot water cylinder designed to deliver large, reliable hot water stores for domestic and light-commercial systems. It pairs with external boilers or heat sources via a high-performance stainless-steel coil to provide efficient heat transfer and consistent hot water delivery. Built with strong insulation and corrosion-resistant materials, it’s suitable for homes, multi-bathroom properties and small commercial installations seeking lower heat loss and long-term reliability.
Key Features
- 269 L actual hot water capacity — ample usable volume for family or multi-point use
- High-gain indirect design compatible with boilers, heat pumps and central heating systems
- Single 316L stainless-steel coil (25.4 kW rating, 2.5 m² surface) for efficient heat exchange
- LDX 2101 stainless-steel cylinder for corrosion resistance and extended service life
- Dense PU foam insulation (50 mm) with coated mild steel outer casing to minimise standby losses
- Low heat loss (2.04 kWh/24h) for improved energy efficiency and reduced running costs
- Safety tested to BS EN 12897:2016 and safety valve rated to 90 °C
- High-pressure capability: max mains 10 bar, operating pressure 7 bar (coil max primary 6 bar)
- Single immersion port (immersion spec 3) and one heat exchanger for simplified installation
- 25-year warranty for long-term peace of mind
Ideal Use Cases
- Larger residential homes or family properties with high hot water demand
- Multi-bathroom homes, apartments or properties with simultaneous draws
- Small commercial sites, staff facilities or hospitality back-of-house applications
- Integration with external boilers or heat pumps as an indirect cylinder in central heating systems
- Renovation projects replacing older cylinders for better insulation and capacity
- Kitchens, bathrooms and utility areas requiring dependable hot water performance

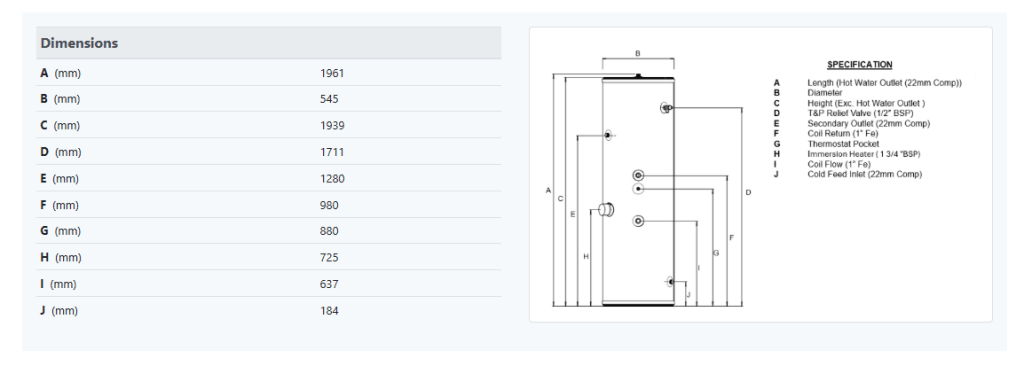

Product Specifications
| Specification | Value |
|---|---|
| Product model | RM Stelflow 300L High Gain Indirect Cylinder (TRSMVH-0300LFC) |
| Actual capacity (Ltr) | 269 |
| Unit weight empty (kg) | 61.6 |
| Unit weight full (kg) | 331 |
| No immersions | 1 |
| Immersion spec | 3 |
| No heat exchangers | 1 |
| Coil 1 rating (kW) | 25.4 |
| Coil 1 surface area (m²) | 2.5 |
| Coil 1 max prim pressure (Bar) | 6 |
| Coil 1 resistance (Bar) | 0.08 |
| Max mains water pressure (Bar) | 10 |
| Operating pressure (Bar) | 7 |
| Operating temp (°C) | 60 |
| Safety valve temp (°C) | 90 |
| Thermal insulation | Dense PU foam |
| Foam thickness (mm) | 50 |
| Cylinder material | LDX 2101 |
| Outer casing | Coated mild steel |
| Coil material | 316L stainless steel |
| Heat loss (kWh/24h) | 2.04 |
| Tested to standard | BS EN 12897:2016 |
| Warranty terms (Year) | 25Y |
