RM Stelflow 210L High Gain Slimline Indirect Cylinder - TRSMVH-0210SFC
Shipping time: 2–7 days
Please call us for precise delivery dates.
Description
The RM Stelflow 210L High Gain Slimline Indirect Cylinder (TRSMVH-0210SFC) is a compact, high‑performance indirect unvented hot water cylinder engineered for rapid heat‑up in space‑restricted installations. Built with a high‑output stainless‑steel coil and dense PU foam insulation, it delivers dependable on‑demand hot water for larger homes and light‑commercial sites while minimising standby losses and installation footprint.
Key Features
- Capacity: 185 litres actual usable hot water.
- Slimline design: space‑saving profile for cupboards and tight plant rooms.
- High‑gain coil: single 316L stainless‑steel heat exchanger rated 27.8 kW for very fast heat transfer.
- Large coil surface: 2.0 m² coil area to maximise heat exchange from the primary circuit.
- Low coil resistance: 0.03 bar to reduce pump load and improve flow efficiency.
- High primary limit: coil max primary pressure 6 bar.
- Robust construction: LDX 2101 cylinder material with coated mild steel outer casing.
- Thermal insulation: dense PU foam, 50 mm thickness, to reduce standby loss (heat loss 2.0 kWh/24h).
- Immersion heater: single 3 kW auxiliary immersion for electric boosting.
- Pressure & safety: max mains water pressure 10 bar; operating pressure 7 bar; safety valve temp 90°C.
- Standards & warranty: tested to BS EN 12897:2016 and backed by a 25‑year warranty.
Ideal Use Cases
- Larger homes and multi‑bath properties needing rapid replenishment of hot water in limited space.
- Installations where fast heat‑up from a boiler or heat pump is required.
- New builds and renovations replacing bulkier cylinders with a slim, high‑performance unit.
- Light‑commercial sites (guesthouses, small offices) requiring reliable on‑demand hot water.
- Systems with higher primary pressures or where low pump load and fast recovery are priorities.

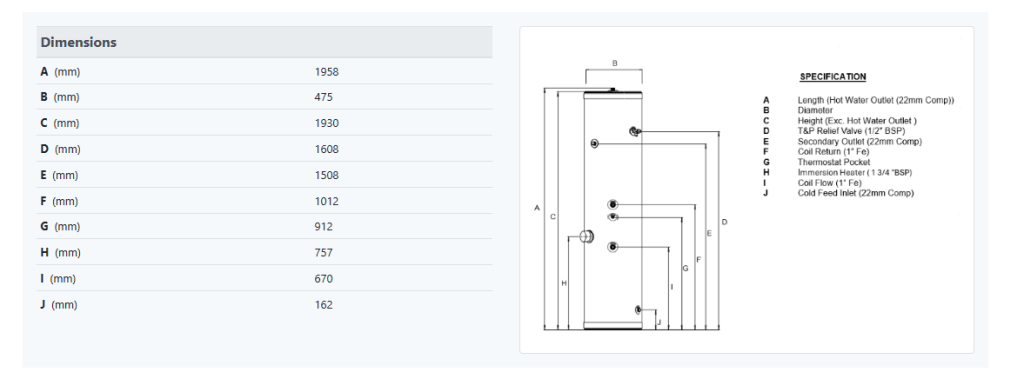

Product Specifications
| Specification | Value |
|---|---|
| Model | TRSMVH-0210SFC |
| Actual capacity (L) | 185 |
| Unit weight empty (kg) | 52.8 |
| Unit weight full (kg) | 237.4 |
| Number of immersions | 1 |
| Immersion spec (kW @ 230 V) | 3 kW |
| Thermal insulation | Dense PU foam |
| Foam thickness (mm) | 50 |
| Cylinder material | LDX 2101 |
| Outer casing | Coated mild steel |
| Coil material | 316L stainless steel |
| Number of heat exchangers | 1 |
| Coil 1 rating (kW) | 27.8 |
| Coil 1 surface area (m²) | 2.0 |
| Coil 1 max primary pressure (Bar) | 6 |
| Coil 1 resistance (Bar) | 0.03 |
| Max mains water pressure (Bar) | 10 |
| Operating pressure (Bar) | 7 |
| Operating temperature (°C) | 60 |
| Safety valve temperature (°C) | 90 |
| Heat loss (kWh/24h) | 2.0 |
| Tested to standard | BS EN 12897:2016 |
| Warranty terms (Years) | 25 Y |
