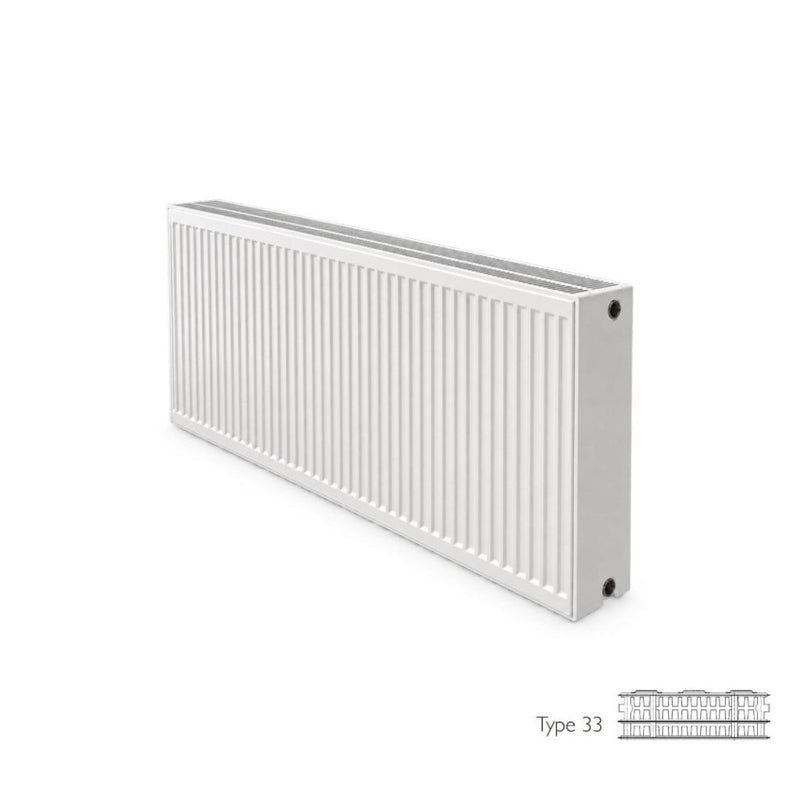

The Kartell K-Rad Kompact T609K is a Type 33 triple panel, triple convector radiator, 600 × 900 mm, giving 2263 W (7720 BTU/h) at ΔT50. Three panels and three banks of convector fins in a 160 mm case: 2263 W against 1651 W for a Type 22 the same size — the highest output per width Kartell make. Nett weight is 42.48 kg and it holds 7.47 litres of system water.
Applications & suitability
Key specifications
| Brand | Kartell |
| Model | K-Rad Kompact T609K |
| Radiator type | Type 33 — triple panel, triple convector |
| Heat output | |
| Output at ΔT50 | 2263 W (7720 BTU/h) |
| Output at ΔT60 | 2864 W (9771 BTU/h) |
| Size and weight | |

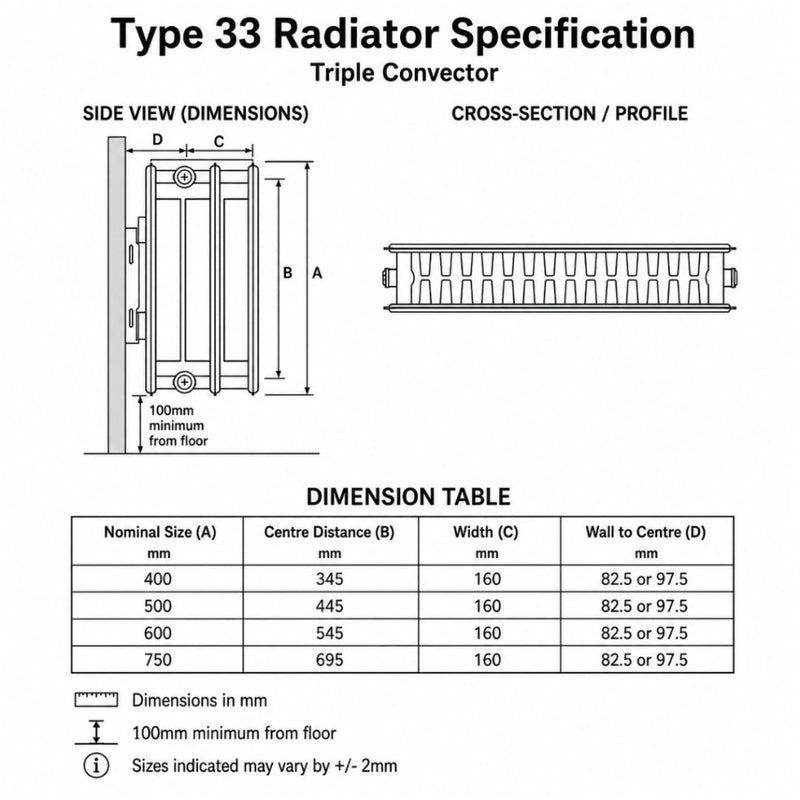

| Dimensions (H × W × D) | 600 × 900 × 160 mm |
| Centre distance | 545 mm |
| Wall to centre | 82.5 or 97.5 mm |
| Weight | 42.48 kg |
| Water content | 7.47 l |
| Build and rating | |
| Max working pressure | 10 bar |
| Max working temperature | 120 °C |
| Finish | White enamel, RAL 9016 |
| Standard | EN 442 |
| Warranty | 10 years |
Installation & compatibility

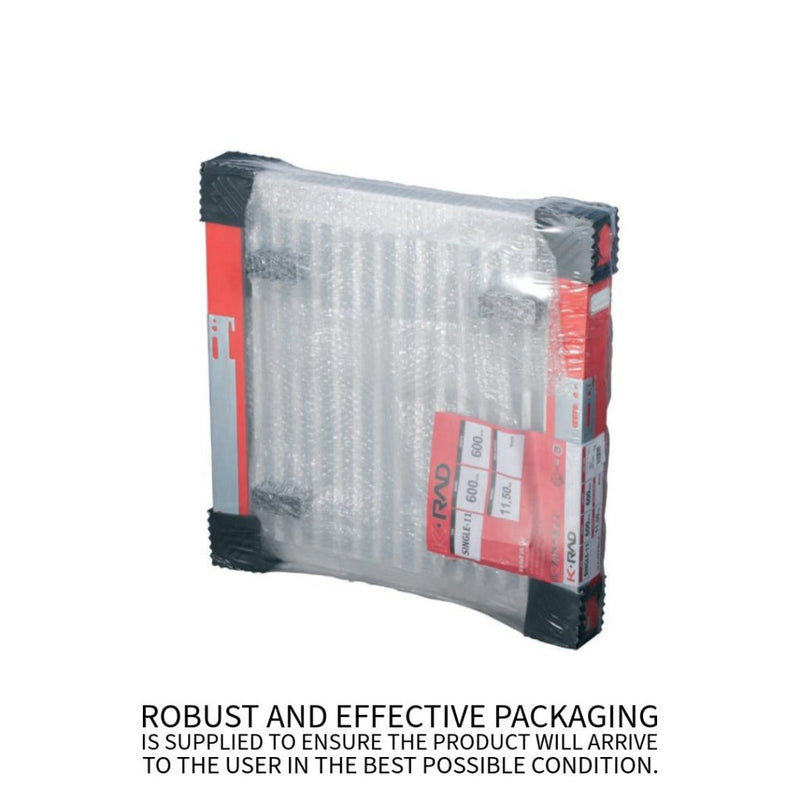

Fix no lower than 100 mm from the finished floor. Allow 35 mm from the wall to pipe centre for a manual valve, or 45 mm for a TRV. Kartell requires the system to be cleansed and dosed with inhibitor to BS 7593:2019 — skipping it invalidates the guarantee, which covers product replacement only. Leave the protective packaging on until the radiator is fixed and the tappings are cut.
