Kartell K-Rad Type 22 Double Panel Double Convector Radiator 300mm x 2000mm

by Kartell
SKU D320K
£151.52 - £151.52
£151.52
£151.52 - £151.52
£151.52

Need Help Choosing the Right Radiator?

Calculate the correct BTU output for your room in under a minute.

Calculate Your BTU →

Free Local Shipping

Free Local Shipping on orders over £100. Standard delivery to most UK postcodes within 2-3 working days. Express options available at checkout.

Contact Us

Give Us A Call +44 118 958 8882 Our team is here to help. We will provide expert advice on specifications, compatibility, and delivery options.

30-day Easy Return

30 days Easy Return — no questions asked. If you're not completely satisfied, send it back within 14 days for a full refund.

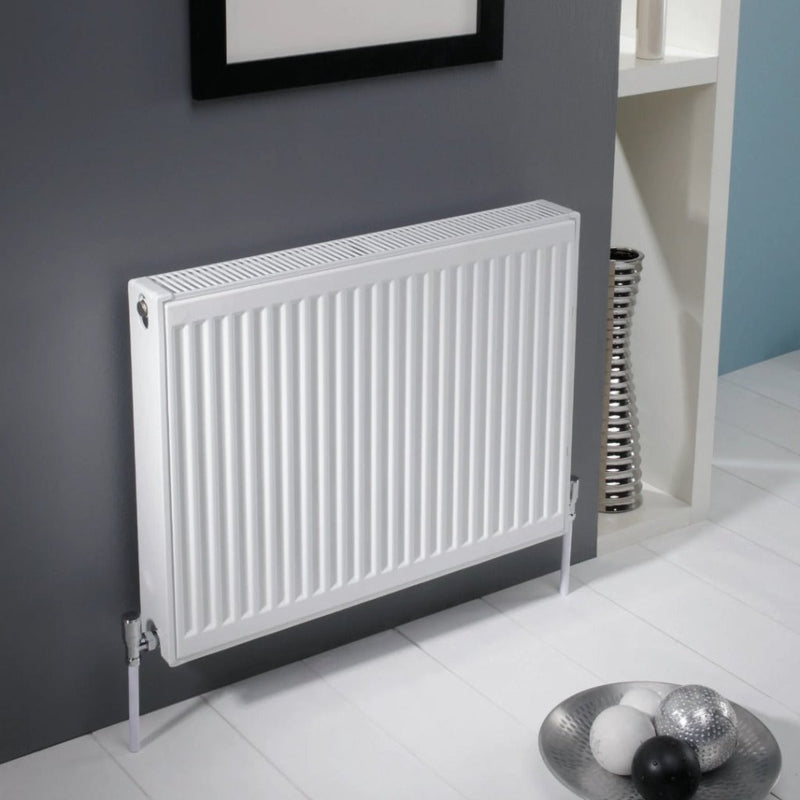

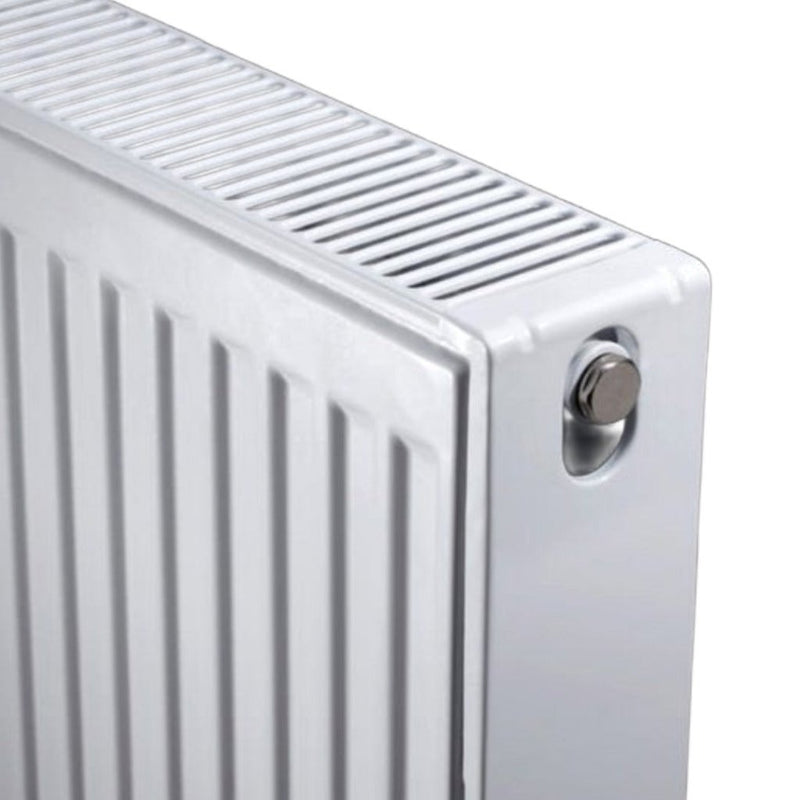

The Kartell K-Rad Kompact D320K is a Type 22 double panel, double convector radiator, 300 × 2000 mm, giving 2098 W (7159 BTU/h) at ΔT50. Two panels, each backed by its own bank of convector fins, fill a 105 mm case: 2098 W against 1046 W for a Type 11 the same size. At 2000 mm wide it is a long radiator — check the run of clear wall before ordering.

Type 22 double panel300 × 2000 × 105 mm2098 W at ΔT50EN 442 testedWhite enamel RAL 901610-year guarantee
7159 BTU/h
Output at ΔT50 — 2098 W
34.8 kg
Nett weight — holds 6.4 l
EN 442
Tested and certified
10 years
Manufacturer guarantee

Applications & suitability

Where it goes
Wall-hung on a sealed or open-vented wet heating system, fixed no lower than 100 mm off the finished floor. At 300 mm high it tucks under low sills and full-height glazing.
Typical job
A room needing roughly 2098 W on a 70 °C mean water temperature, or 2688 W where the system runs at 80 °C. Straight swap for a tired 300 × 2000 panel of the same size.
Works with / replaces
Pipe centres are 245 mm with a wall-to-centre of 82.5 or 97.5 mm, so it lines up with most existing 300 mm-high panels. Case depth is 105 mm against 70 mm for a Type 21 and 160 mm for a Type 33.
When not to choose this
The 2098 W figure is at ΔT50. Run a heat pump at low flow temperatures and it falls hard — Kartell’s own correction factor at ΔT30 is 0.515, so you would get about 1080 W from this radiator. Size at the ΔT you will actually run, and step up to a Type 33 where the size allows, or split the load across two radiators.

Key specifications

Brand Kartell
Model K-Rad Kompact D320K
Radiator type Type 22 — double panel, double convector
Heat output
Output at ΔT50 2098 W (7159 BTU/h)
Output at ΔT60 2688 W (9172 BTU/h)
Size and weight
Dimensions (H × W × D) 300 × 2000 × 105 mm
Centre distance 245 mm
Wall to centre 82.5 or 97.5 mm
Weight 34.8 kg
Water content 6.4 l
Build and rating
Max working pressure 10 bar
Max working temperature 120 °C
Finish White enamel, RAL 9016
Standard EN 442
Warranty 10 years

Installation & compatibility

Fix no lower than 100 mm from the finished floor. Allow 35 mm from the wall to pipe centre for a manual valve, or 45 mm for a TRV. Kartell requires the system to be cleansed and dosed with inhibitor to BS 7593:2019 — skipping it invalidates the guarantee, which covers product replacement only. Leave the protective packaging on until the radiator is fixed and the tappings are cut.

Related & next steps

Tight on space?
The Type 11 is 56 mm deep and gives 1046 W at ΔT50 — slimmer, but less heat.
View Type 11
Other sizes
Type 22 runs 300–900 mm high and up to 3000 mm wide, from 420 W to 5504 W at ΔT50.
