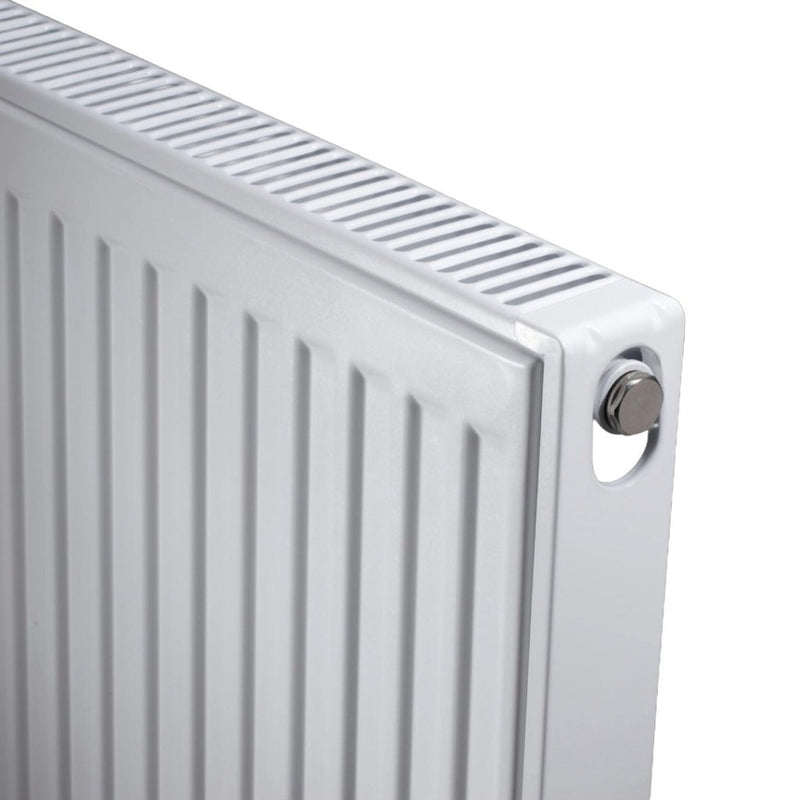

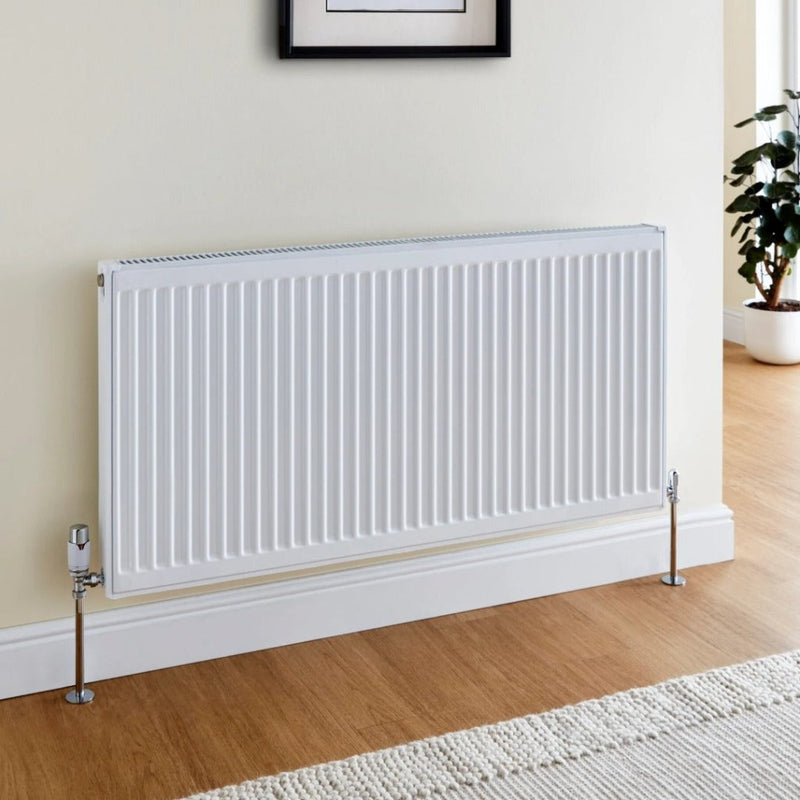

Kartell K-Rad Type 11 Single Panel Single Convector Radiator 300mm x 2000mm
Need Help Choosing the Right Radiator?
Calculate the correct BTU output for your room in under a minute.
Calculate Your BTU →The Kartell K-Rad Kompact S320K is a Type 11 single panel, single convector radiator, 300 × 2000 mm, giving 1046 W (3569 BTU/h) at ΔT50. A single water-carrying panel with one bank of convector fins in a 56 mm case — the slimmest panel in the Kompact range, and the easiest to fit alongside pipework, furniture and door swings. At 2000 mm wide it is a long radiator — check the run of clear wall before ordering.
Applications & suitability
Key specifications
| Brand | Kartell |
| Model | K-Rad Kompact S320K |
| Radiator type | Type 11 — single panel, single convector |
| Heat output | |
| Output at ΔT50 | 1046 W (3569 BTU/h) |
| Output at ΔT60 | 1340 W (4572 BTU/h) |
| Size and weight | |
| Dimensions (H × W × D) | 300 × 2000 × 56 mm |
| Centre distance | 245 mm |
| Wall to centre | 40 or 55 mm |
| Weight | 17.2 kg |
| Water content | 3.4 l |
| Build and rating | |
| Max working pressure | 10 bar |
| Max working temperature | 120 °C |
| Finish | White enamel, RAL 9016 |
| Standard | EN 442 |
| Warranty | 10 years |
Installation & compatibility
Fix no lower than 100 mm from the finished floor. Allow 35 mm from the wall to pipe centre for a manual valve, or 45 mm for a TRV. Kartell requires the system to be cleansed and dosed with inhibitor to BS 7593:2019 — skipping it invalidates the guarantee, which covers product replacement only. Leave the protective packaging on until the radiator is fixed and the tappings are cut.
