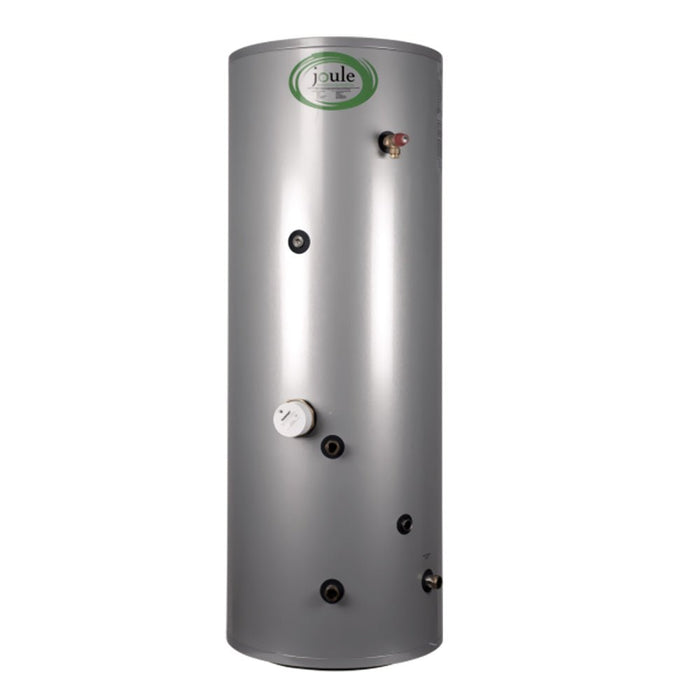

Joule Cyclone Platinum Unvented 300L Indirect Tall Cylinder - TCEMVI-0300LFD
Shipping time: 2–7 days
Please call us for precise delivery dates.
Description
The Joule Cyclone Platinum Unvented 300L Indirect Tall Cylinder (TCEMVI-0300LFD) is a high-capacity stainless‑steel hot water cylinder engineered for indirect unvented heating systems. With 290 L usable volume and a 23 kW primary coil, it provides consistent, rapid hot water up to 60°C while reducing standby losses. Constructed from corrosion‑resistant LDX 2101 stainless steel with dense PU foam insulation and a coated mild‑steel outer casing, it’s ideal for large homes and light‑commercial installations where vertical space allows a taller profile.
Key Features
- Capacity: 300 L (actual 290 L) — for high domestic or light‑commercial demand
- Cylinder material: LDX 2101 stainless steel for long‑term corrosion resistance
- Coil: 316L stainless steel heat exchanger; 23 kW rating, 0.77 m² surface area
- Single immersion heater option (3 kW @ 230 V) for electric boost/backup
- Thermal insulation: dense PU foam to minimise standby heat loss (heat loss 2.21 kWh/24h)
- Outer casing: coated mild steel for a durable, serviceable finish
- Pressure ratings: max mains water pressure 10 bar; operating pressure 7 bar
- Safety tested to BS EN 12897:2016; safety valve set to 90°C
- Installation weights: empty 64 kg; full 360 kg — for siting and handling planning
- Low primary resistance: coil resistance 0.08 bar; coil max primary pressure 3.5 bar
Ideal Use Cases
- Large residential properties with multiple bathrooms and heavy hot‑water use
- Small commercial premises (guesthouses, salons, offices) needing reliable stored hot water
- Renovation or replacement projects where a tall cylinder fits plant‑room vertical space
- Systems requiring a 23 kW primary coil for efficient heat transfer from boilers or heat pumps
- Installations with higher mains pressure where a stainless‑steel, low‑loss cylinder is preferred
Product Specifications
| Specification | Value |
|---|---|
| Model | TCEMVI-0300LFD |
| Brand | CYCLONE |
| Capacity | 300 L (actual 290 L) |
| Item Category Code | IndirectUnvented |
| Product Group Code | CYCLONE |
| Product Type | Stainless Indirect Cylinder |
| Cylinder material | LDX 2101 stainless steel |
| Outer casing | Coated mild steel |
| Thermal insulation | Dense PU foam |
| Foam thickness | 0 |
| No. of immersions | 1 |
| Immersion spec | 3 kW @ 230 V |
| No. heat exchangers | 1 |
| Coil material | 316L stainless steel |
| Coil 1 rating | 23 kW |
| Coil 1 surface area | 0.77 m² |
| Coil 1 max primary pressure | 3.5 bar |
| Coil 1 resistance | 0.08 bar |
| Max mains water pressure | 10 bar |
| Operating pressure | 7 bar |
| Operating temperature | 60 °C |
| Safety valve temperature | 90 °C |
| Tested to standard | BS EN 12897:2016 |
| Heat loss | 2.21 (kWh/24h) |
| Unit weight empty | 64 kg |
| Unit weight full | 360 kg |
| Warranty terms | 1 year |
