Joule Cyclone Platinum 200L Indirect Short C Unvented Cylinder - TCEMVI-0200NFC
Shipping time: 2–7 days
Please call us for precise delivery dates.
Description

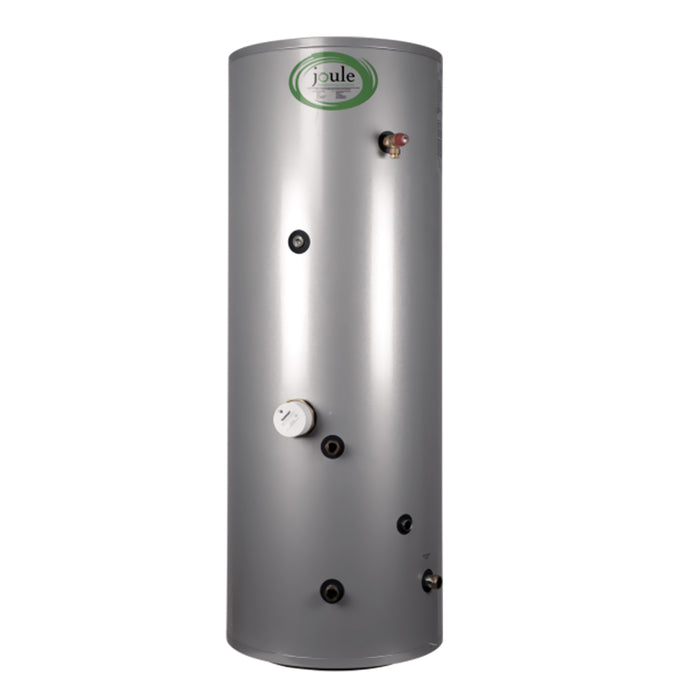

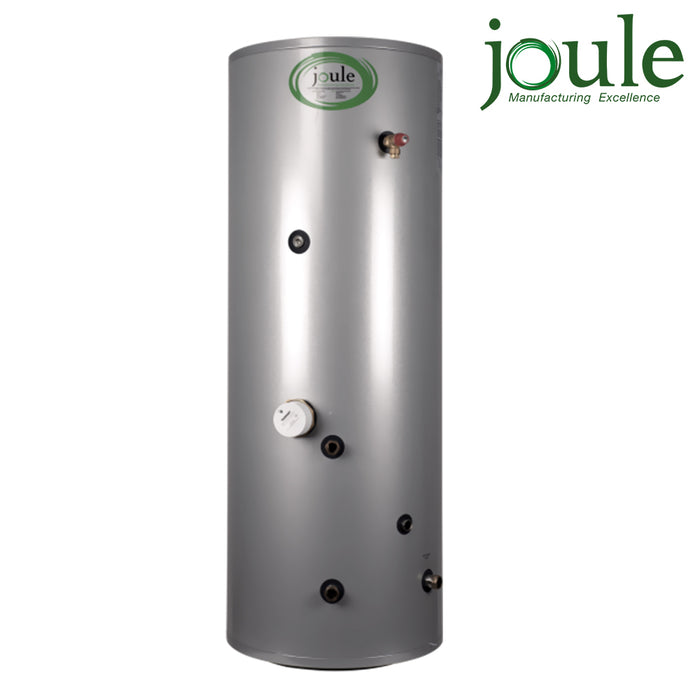

The Joule Cyclone Platinum 200L Indirect Short C Unvented Cylinder (TCEMVI-0200NFC) is a robust stainless‑steel hot water storage cylinder for indirect unvented systems. With a usable capacity of 194 L and a high‑performance 23.1 kW primary coil, it provides fast, reliable hot water up to 60°C while maintaining low standby losses. Designed for durability and straightforward installation, it suits larger homes and light‑commercial installations that demand consistent hot‑water supply.
Key Features
- Capacity: 200 L (actual 194 L) — ideal for large households or light commercial use
- Cylinder material: LDX 2101 stainless steel for long‑term corrosion resistance
- Coil: 316L stainless steel heat exchanger; 23.1 kW rating, 0.58 m² surface area
- Single immersion heater option (3 kW @ 230 V) for electric backup boosting
- Thermal insulation: dense PU foam to reduce standby heat loss (heat loss 1.87 kWh/24h)
- Outer casing: coated mild steel for a durable, serviceable finish
- High pressure capability: max mains water pressure 10 bar; operating pressure 7 bar
- Safety tested to BS EN 12897:2016; safety valve set to 90°C
- Installation weights: empty 41 kg; full 241 kg for planning and handling
- Low primary resistance: coil resistance 0.06 bar; coil max primary pressure 3.5 bar
Ideal Use Cases
- Larger residential homes with multiple bathrooms and high hot‑water demand
- Small commercial properties requiring reliable stored hot water (e.g., offices, guesthouses)
- Renovation or upgrade projects needing a compact "short" cylinder profile for limited plant rooms
- Systems requiring a higher‑rated primary coil (23.1 kW) for rapid heat-up
- Installations with higher mains pressure where a robust, stainless solution is preferred
Product Specifications
| Specification | Value |
|---|---|
| Model | TCEMVI-0200NFC |
| Brand | CYCLONE |
| Capacity | 200 L (actual 194 L) |
| Item Category Code | IndirectUnvented |
| Product Group Code | CYCLONE |
| Product Type | Stainless Indirect Cylinder |
| Cylinder material | LDX 2101 stainless steel |
| Outer casing | Coated mild steel |
| Thermal insulation | Dense PU foam |
| Foam thickness | 0 |
| No. of immersions | 1 |
| Immersion spec | 3 kW @ 230 V |
| No. heat exchangers | 1 |
| Coil material | 316L stainless steel |
| Coil 1 rating | 23.1 kW |
| Coil 1 surface area | 0.58 m² |
| Coil 1 max primary pressure | 3.5 bar |
| Coil 1 resistance | 0.06 bar |
| Max mains water pressure | 10 bar |
| Operating pressure | 7 bar |
| Operating temperature | 60 °C |
| Safety valve temperature | 90 °C |
| Tested to standard | BS EN 12897:2016 |
| Heat loss | 1.87 (kWh/24h) |
| Unit weight empty | 41 kg |
| Unit weight full | 241 kg |
| Warranty terms | 1 year |
