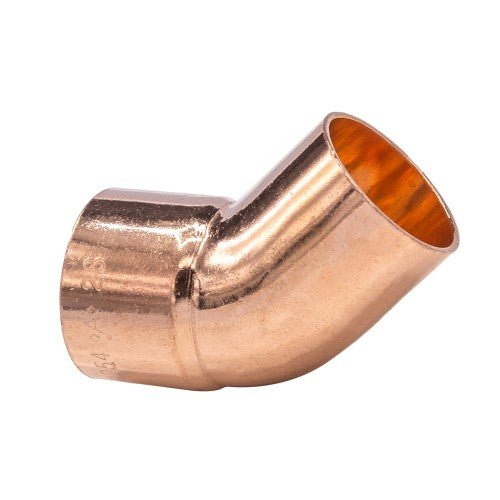

The 54mm End Feed 45° Obtuse Street Elbow turns a run of 54mm copper tube through 45°, with one male (spigot) end and one female (socket) end. The largest obtuse street elbow in the range — the male end pushes straight into another fitting while the female end takes tube, giving a gentle 45° offset without adding a coupler on 54mm plant room headers and commercial risers. Soldered capillary joint. Manufactured from copper to BS EN 1254-1 and fits copper tube to BS EN 1057.

Also known as: obtuse street elbow, 45 degree street elbow, obtuse street bend, male female obtuse elbow, MxF 45 elbow, spigot obtuse elbow, 54mm obtuse street elbow, endfeed 45 street elbow.

• Manufactured to BS EN 1254-1 for capillary (solder) fittings
• 45° obtuse street elbow — one male end, one female end
• Fits copper tube to BS EN 1057
• WRAS approved
• Solder and flux required — not supplied
• Sold individually — buy exactly what the job needs
• Suitable for hot and cold water and heating services

End feed means a capillary joint: clean the tube and fitting, apply flux, heat evenly and feed lead-free solder to the mouth of the fitting until a ring forms. See our guide: How to solder end feed fittings.

Also in this range: standard elbows, couplers and the full end feed range. Ordering for a whole job? Use the bulk fittings matrix.
