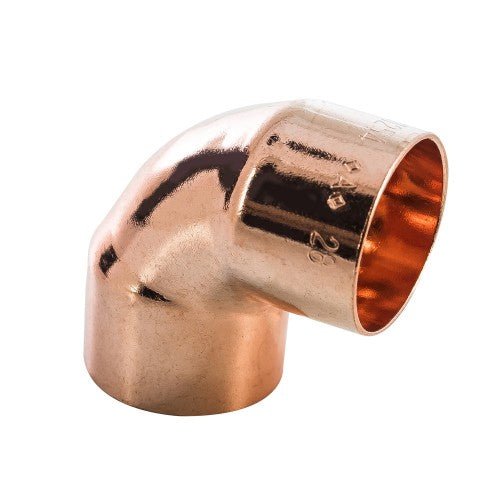

The 22mm End Feed 90° Elbow turns a run of 22mm copper tube through a right angle with a soldered capillary joint. Used on 22mm main hot and cold runs, cylinder pipework and heating flow and return. Manufactured from copper to BS EN 1254-1 and fits copper tube to BS EN 1057.

Also known as: 90 degree elbow, 90° bend, right angle elbow, quarter bend, capillary elbow, 22mm elbow, endfeed elbow.

• Manufactured to BS EN 1254-1 for capillary (solder) fittings
• Changes direction of 22mm tube by 90°
• Fits copper tube to BS EN 1057
• WRAS approved
• Solder and flux required — not supplied
• Sold individually — buy exactly what the job needs
• Suitable for hot and cold water and heating services

End feed means a capillary joint: clean the tube and fitting, apply flux, heat evenly and feed lead-free solder to the mouth of the fitting until a ring forms. See our guide: How to solder end feed fittings.
