McAlpine Untrapped Shower Gully - 22mm Horizontal Outlet, Stainless Steel Cover Plate - USG1SS
Free Local Shipping
Free Local Shipping on orders over £100. Standard delivery to most UK postcodes within 2-3 working days. Express options available at checkout.
Contact Us
Give Us A Call +44 118 958 8882 Our team is here to help. We will provide expert advice on specifications, compatibility, and delivery
30-day Easy Return
30 days Easy Return — no questions asked. If you're not completely satisfied, send it back within 30 days for a full refund.
Description
McAlpine USG1SS

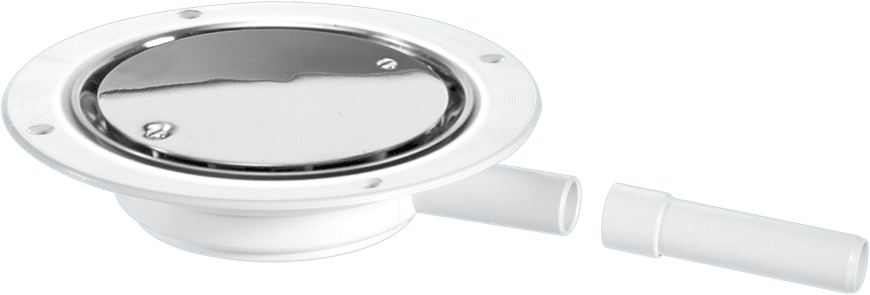

The McAlpine USG1SS is an untrapped shower gully with a 22mm horizontal outlet, for use with pumped waste where a separate trap is fitted downstream. Supplied with a polished stainless steel cover plate with securing screws.
Specification
| Manufacturer part number | USG1SS |
|---|---|
| Water seal | Untrapped - for use with pumped waste |
| Outlet | 22mm horizontal |
| Cover plate / grating | Polished stainless steel cover plate with securing screws |
| Flow rate | 10 litres per minute |
| Overall depth | 45mm |
| Body material | High quality ABS |
| Standards | BS EN 1253-1:2015 and BS EN 1253-2:2015 |
Features
- Top access for cleaning without lifting the gully.
- Removable sediment cup and dip tube assembly.
- Clamp ring secured by four M6 stainless steel screws.
- Temporary cover plate included for air testing and protection during the build.
- Suitable for concrete and suspended timber floors.
Trap seal depth is the responsibility of the installer or specifier under Building Regulations. Check the required seal depth before installation.
Do not pour drain cleaner into this product. Do not use acetoxy silicone with this product.
