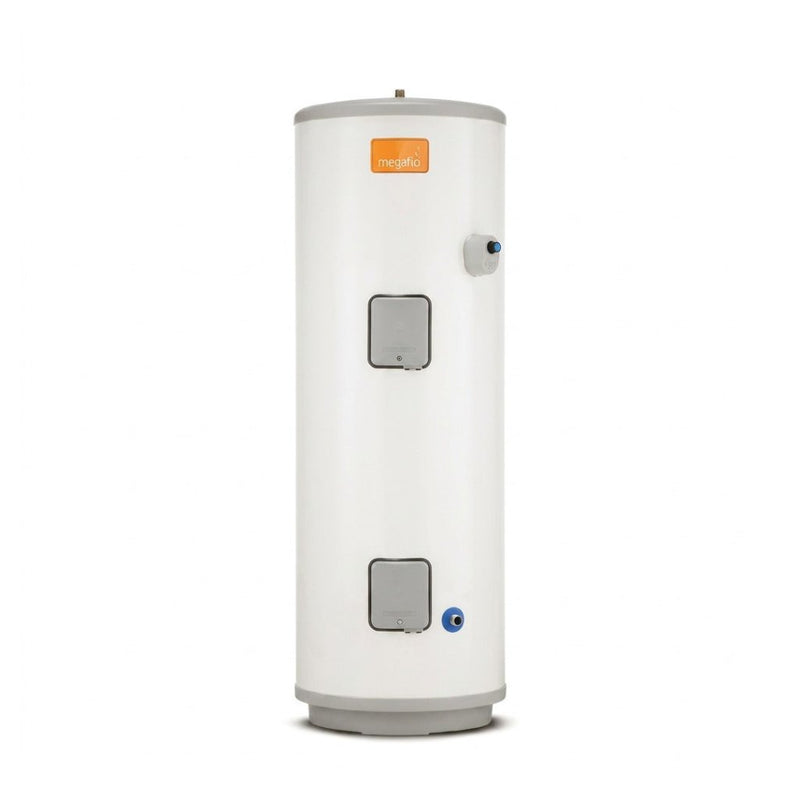

The Megaflo Eco Direct 250L provides mains-pressure hot water with flow rates of up to 76 l/min at 3 bar, while its internal floating baffle eliminates the need for an external expansion vessel. The cylinder features 60mm CFC-free polyurethane foam insulation, factory-fitted unvented safety components and a lifetime domestic guarantee.
250 Litre Capacity
3 Γ 3kW Titanium Elements
9kW Total Output
Lifetime Domestic Guarantee
Immersion Output
9 kW Total
Max Flow
76 L/min @ 3 bar
Applications & suitability
Large Households
The 250-litre capacity provides substantial stored hot water for larger households with higher domestic hot-water requirements.
High Hot-Water Demand
Three titanium immersion elements provide 9kW total output for faster recovery when all available elements are operating.
Direct Unvented Systems
Designed to provide mains-pressure hot water without requiring a separate pump or header tank.
High Flow Applications
Specified for flow rates of up to 76 l/min at 3 bar, supporting demanding domestic hot-water installations.
Key specifications
| Product Code |
95050471 |
| Type |
Direct Unvented |
| Nominal Capacity |
250 Litres |
| Height |
1738 mm |
| Width Γ Depth |
579 Γ 600 mm |
| Weight Empty / Full |
47 kg / 282 kg |
| Standing Heat Loss |
1.61 kWh/24h |
| Maximum Flow at 3 bar |
76 l/min |
| Immersion Heaters |
3 Γ 3kW Titanium @ 240V (9kW total) |
| Heat-Up Time (All Elements) |
81 min |
| Operating Pressure |
3 bar |
| ErP Rating |
C |
Installation & compatibility
The Megaflo Eco Direct 250L is a direct unvented hot water cylinder with three factory-fitted titanium immersion elements rated at 3kW each @ 240V. The combined 9kW immersion output provides an 81-minute heat-up time when all elements are available. The internal floating baffle means no external expansion vessel is required, while the cylinder is supplied with a factory-fitted T&P valve, 3 bar PRV, tundish and full unvented kit.
Design & performance benefits
Three Titanium Elements
Three 3kW titanium immersion elements provide a combined 9kW heating output for faster hot-water recovery.
60mm PU Insulation
60mm CFC-free polyurethane foam insulation helps minimise heat loss from the stored hot water.
Internal Floating Baffle
The internal floating baffle eliminates the need for a separate external expansion vessel.
Mains-Pressure Hot Water
The direct unvented configuration provides mains-pressure hot water with a specified maximum flow of 76 l/min at 3 bar.
Additional installation features
Factory-Fitted Safety Components
Includes a factory-fitted T&P valve, 3 bar pressure reducing valve, tundish and full unvented kit.
No External Expansion Vessel
The internal floating baffle removes the requirement for an external expansion vessel.
Made in the UK
Manufactured in the UK and specified with a lifetime domestic guarantee and ErP C rating.
Ideal for
Large Family Homes
250 litres of stored hot water for larger households with increased domestic hot-water requirements.
High-Demand Properties
Three immersion elements and 9kW total output provide faster recovery when all elements are available.
Mains-Pressure Installations
Suitable for properties requiring direct unvented hot water without a separate pump or header tank.
Replacement & New Installations
A high-capacity direct unvented cylinder option for domestic replacement and new-build installations.
The Megaflo Eco Direct 250L (3-Immersion) combines 250-litre storage with three 3kW titanium immersion elements for a total 9kW heating output and an 81-minute heat-up time when all elements are available. With 60mm CFC-free polyurethane insulation, an internal floating baffle, factory-fitted unvented safety components and up to 76 l/min flow at 3 bar, it is designed for large households and high-demand domestic hot water applications.
