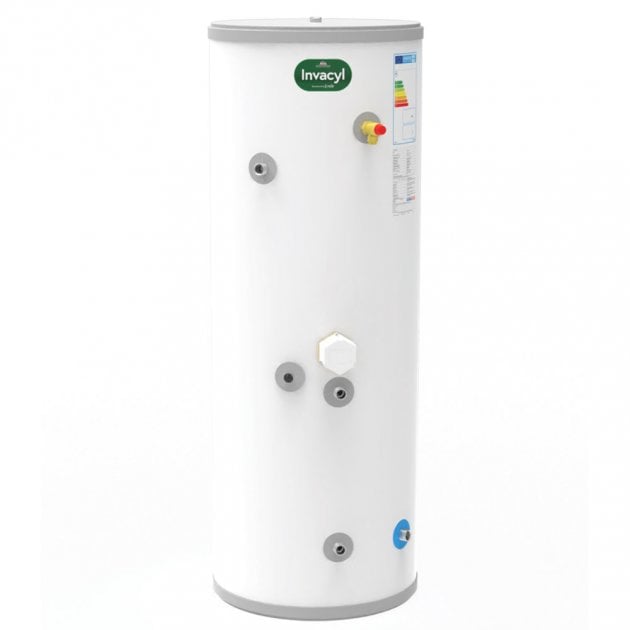

Joule Invacyl Slimline In-Direct Unvented Cylinder 210 Litre - Stainless Steel - TRBMVI-0210SFC
Shipping time: 2–7 days
Please call us for precise delivery dates.
Get Free Delivery on Orders Over £60
For more details, please refer to our Shipping Information.
Description
The Joule Invacyl Slimline In-Direct Unvented Cylinder 210 Litre (TRBMVI-0210SFC) is a slim, high-performance stainless‑steel hot water storage cylinder for unvented mains‑pressure systems. It stores 202.04 L of usable hot water and heats indirectly via a robust stainless‑steel coil, delivering reliable mains‑pressure hot water for homes and compact plant rooms. Designed for space‑restricted installations, it offers efficient insulation, low standby heat loss and long‑term reliability backed by a 25‑year warranty.
Key Features
- Capacity: 202.04 L actual usable hot water.
- Slimline stainless steel construction: LDX 2101 cylinder for corrosion resistance and durability.
- Indirect coil: 316L stainless‑steel coil rated 18.15 kW with 0.76 m² surface area for efficient heat transfer.
- High insulation: Dense PU foam to reduce heat loss (1.8 kW/24h).
- Mains‑pressure performance: Max mains water pressure 10 bar; operating pressure 7 bar for strong delivery.
- Immersion ready: 3 kW @ 230 V immersion specification.
- Safety & compliance: Tested to BS EN 12897:2016; safety valve set to 90 °C.
- Low primary resistance: Coil resistance 0.2 bar; coil max primary pressure 6 bar for efficient circulation.
- Durable finish: Coated mild steel outer casing for added protection.
- Warranty: 25‑year warranty for long service life.
Ideal Use Cases
- Family homes and apartments where space is limited but mains‑pressure hot water is required.
- Renovation or new‑build projects needing a compact unvented cylinder.
- Systems using boilers, heat pumps or solar thermal as the primary heat source.
- Utility rooms or plant rooms with constrained footprints.
- Properties requiring a reliable, low‑loss hot water store with high heat‑exchange capacity.
Product Specifications
| Specification | Value |
|---|---|
| Product model | Joule Invacyl Slimline In-Direct Unvented Cylinder 210 Litre - TRBMVI-0210SFC |
| Actual capacity (Ltr) | 202.04 |
| Max mains water pressure (Bar) | 10 |
| Operating pressure (Bar) | 7 |
| Operating temperature (°C) | 60 |
| Safety valve temperature (°C) | 90 |
| Unit weight empty (kg) | 45 |
| Unit weight full (kg) | 242 |
| Cylinder material | LDX 2101 |
| Outer casing | Coated mild steel |
| Thermal insulation | Dense PU foam |
| Foam thickness | 0 |
| Heat loss (kW/24h) | 1.8 |
| Coil material | 316L stainless steel |
| Coil 1 rating (kW) | 18.15 |
| Coil 1 surface area (m²) | 0.76 |
| Coil 1 max primary pressure (Bar) | 6 |
| Coil 1 resistance (Bar) | 0.2 |
| Immersion spec | 3 kW @ 230 V |
| No immersions | 1 |
| No heat exchangers | 1 |
| Tested to standard | BS EN 12897:2016 |
| Warranty terms (Year) | 25Y |
