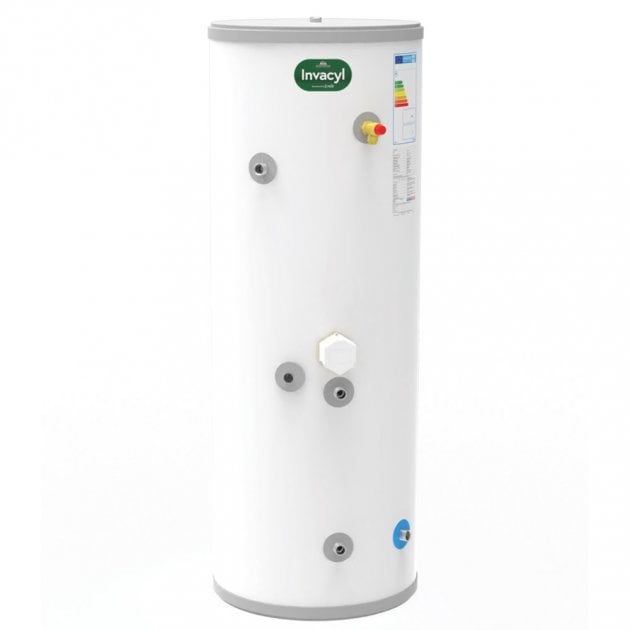

Joule Invacyl Slimline In-Direct Unvented Cylinder 150 Litre - Stainless Steel
Shipping time: 2–7 days
Please call us for precise delivery dates.
Get Free Delivery on Orders Over £60
For more details, please refer to our Shipping Information.
Description
The Joule Invacyl Slimline In-Direct Unvented Cylinder 150 Litre is a compact, high-performance stainless‑steel hot water storage cylinder designed for unvented mains‑pressure systems. With 139.78 L usable capacity and a powerful stainless‑steel heat coil, it delivers reliable mains‑pressure hot water in space‑restricted installations. Dense PU foam insulation and corrosion‑resistant LDX 2101 construction minimise heat loss and maintenance, while a 25‑year warranty ensures long‑term confidence.
Key Features
- Actual capacity: 139.78 L usable hot water.
- Slimline stainless‑steel cylinder: LDX 2101 for corrosion resistance and durability.
- Indirect heating coil: 316L stainless‑steel coil rated 16.33 kW with 0.76 m² surface area for efficient heat transfer.
- High insulation: Dense PU foam to reduce standby heat loss (1.608 kW/24h).
- Mains‑pressure operation: Max mains water pressure 10 bar; operating pressure 7 bar for strong delivery.
- Immersion ready: 3 kW @ 230 V immersion specification.
- Robust outer finish: Coated mild steel casing for added protection.
- Low primary resistance: Coil resistance 0.2 bar; coil max primary pressure 6 bar for efficient circulation.
- Safety & standards: Tested to BS EN 12897:2016; safety valve set to 90 °C.
- Warranty: 25‑year warranty for long service life.
Ideal Use Cases
- Family homes and apartments where space is limited but mains‑pressure hot water is required.
- Renovation or new‑build projects needing a compact unvented cylinder.
- Systems using boilers, heat pumps or solar thermal as the primary heat source.
- Utility rooms or plant rooms with constrained footprints.
- Properties requiring reliable, low‑loss hot water storage with high heat‑exchange capacity.
Product Specifications
| Specification | Value |
|---|---|
| Product model | Joule Invacyl Slimline In-Direct Unvented Cylinder 150 Litre |
| Actual capacity (Ltr) | 139.78 |
| Max mains water pressure (Bar) | 10 |
| Operating pressure (Bar) | 7 |
| Operating temperature (°C) | 60 |
| Safety valve temperature (°C) | 90 |
| Unit weight empty (kg) | 38 |
| Unit weight full (kg) | 177 |
| Cylinder material | LDX 2101 |
| Outer casing | Coated mild steel |
| Thermal insulation | Dense PU foam |
| Foam thickness | 0 |
| Heat loss (kW/24h) | 1.608 |
| Coil material | 316L stainless steel |
| Coil 1 rating (kW) | 16.33 |
| Coil 1 surface area (m²) | 0.76 |
| Coil 1 max primary pressure (Bar) | 6 |
| Coil 1 resistance (Bar) | 0.2 |
| Immersion spec | 3 kW @ 230 V |
| No immersions | 1 |
| No heat exchangers | 1 |
| Tested to standard | BS EN 12897:2016 |
| Warranty terms (Year) | 25Y |
