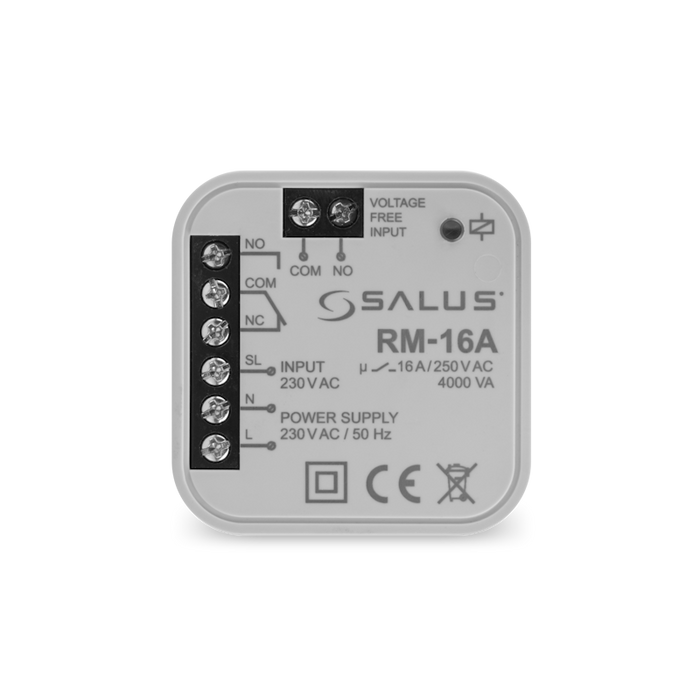

Salus RM-16A Relay Module – 16A Switching for Boilers, Pumps & UFH
The Salus RM-16A is a versatile relay module designed to extend the switching capability of thermostats and wiring centres. Rated up to 16 A / 250 V AC (4000 VA), it is ideal when a thermostat or receiver cannot handle the electrical load directly.
Compact and flush-mountable (Ø60 mm box), the RM-16A provides a safe and reliable way to connect boilers, pumps, electric underfloor heating mats, or other high-demand devices. It supports both voltage-free (NO/NC/COM) and 230 V inputs, ensuring compatibility across a wide range of heating systems.
Applications
The Salus RM-16A can be used in a variety of heating and electrical setups where extra switching power or volt-free contacts are required. Typical applications include:
-

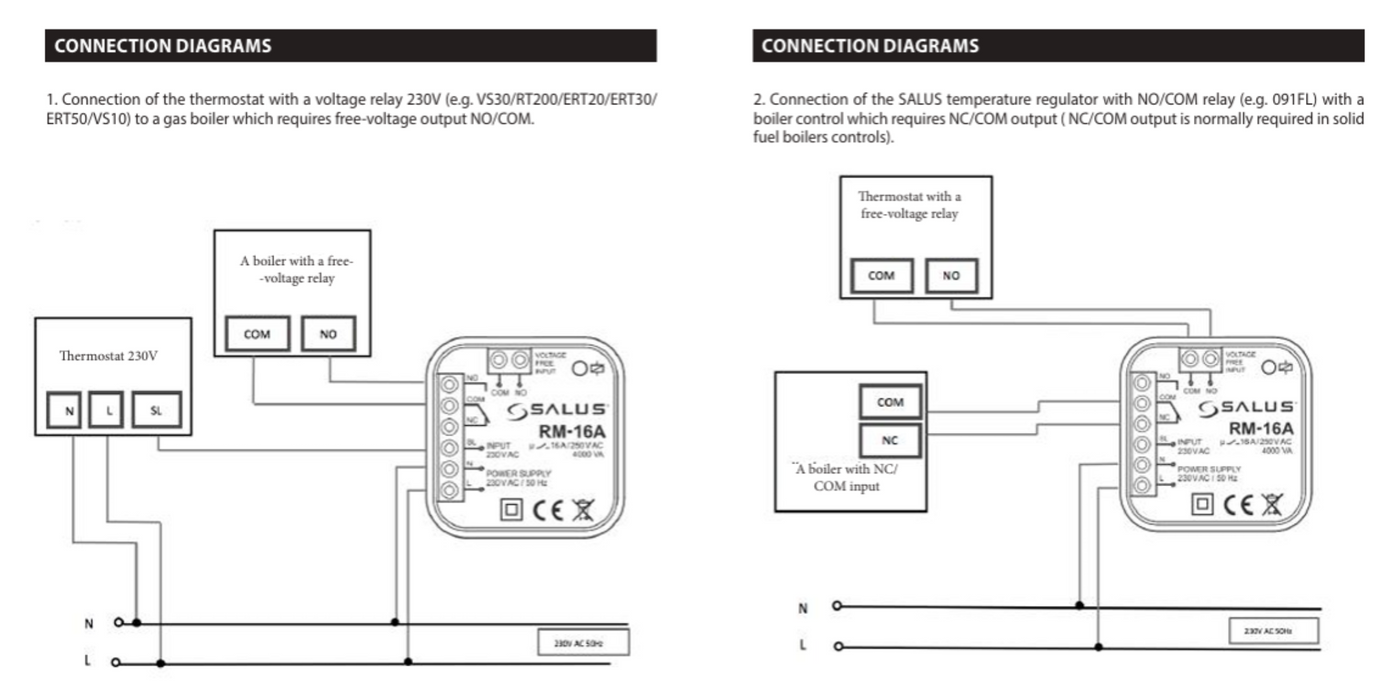

Gas boilers – when a thermostat with a 230 V output needs to be connected to a boiler that requires volt-free NO/COM or NC/COM contacts.
-

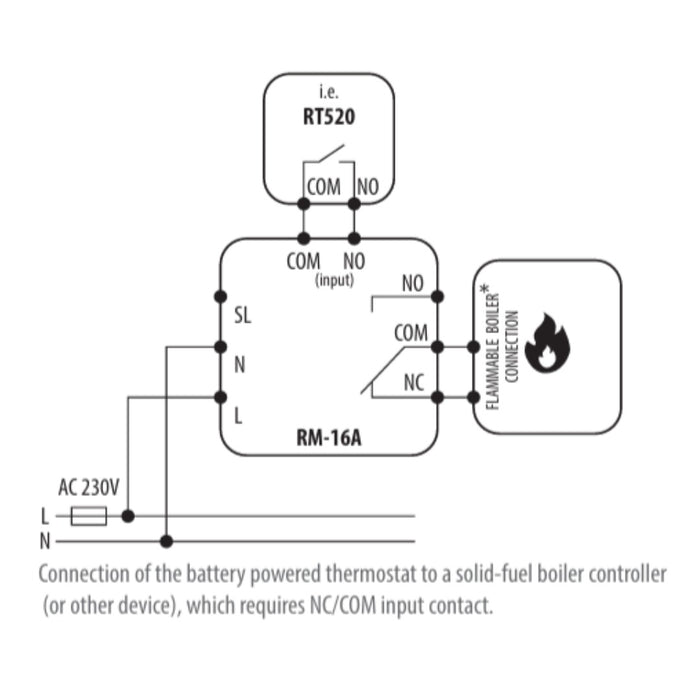

Solid fuel boilers – provides the required NC/COM input for boilers that cannot be switched directly by a standard thermostat.
-

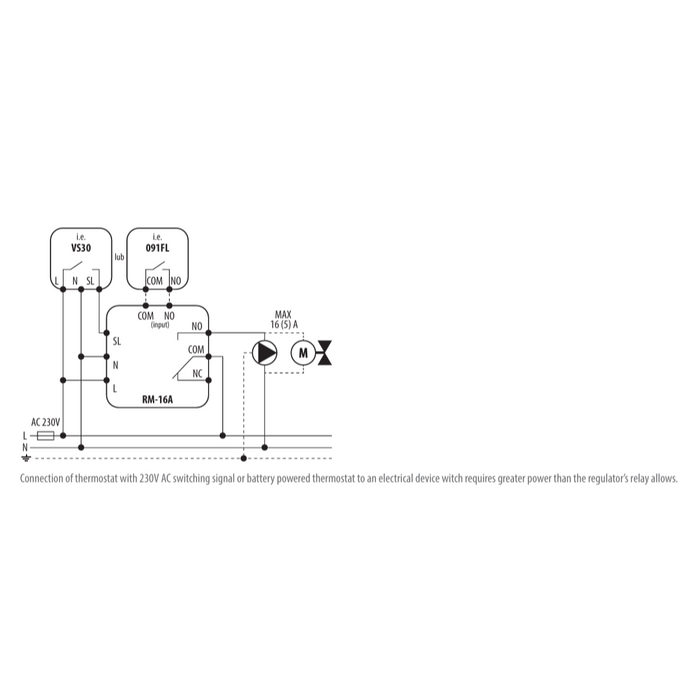

Pumps and circulators – enables thermostats or wiring centres to safely switch pump loads up to 16 A.
-
Electric underfloor heating mats – allows thermostats to control high-power UFH elements without overloading their internal relay.
-

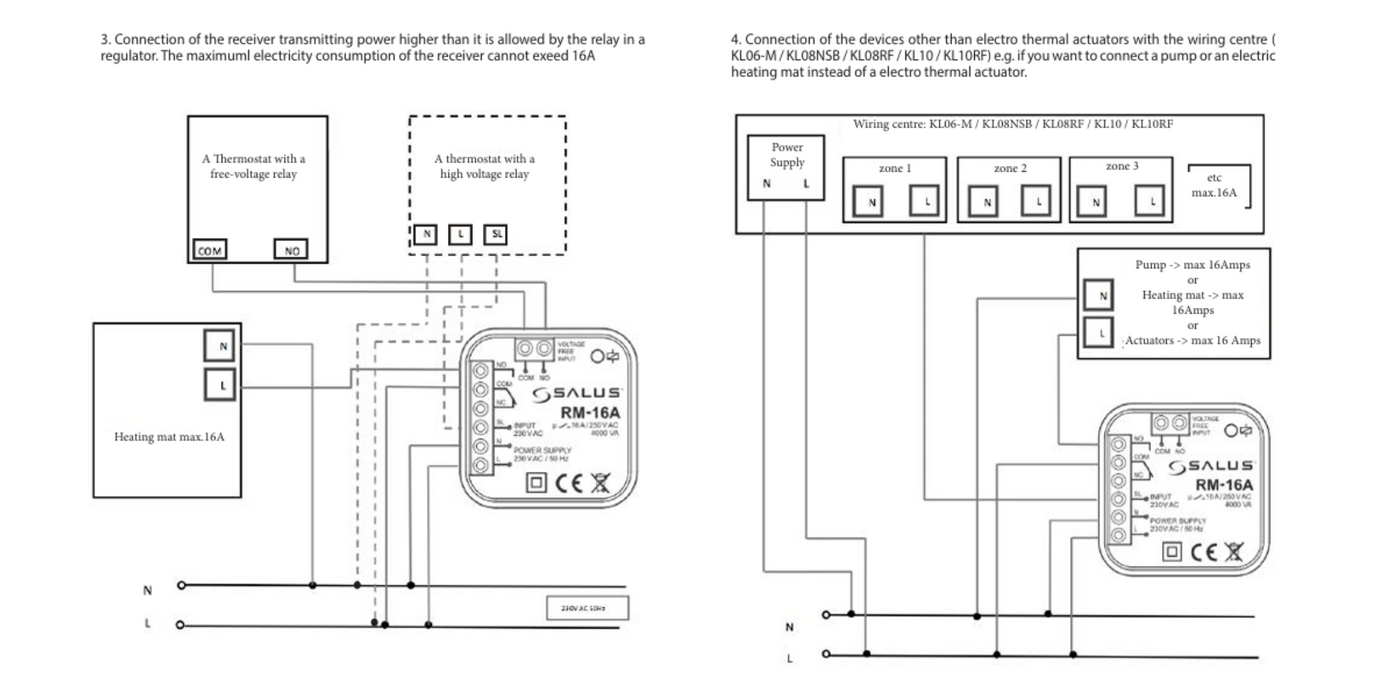

Wiring centres (e.g. KL06-M, KL08NSB, KL10, KL10RF) – adds flexibility by allowing connection of devices other than electro-thermal actuators, such as pumps or heating mats.
-
General high-load switching – useful in any installation where the controlled device exceeds the relay capacity of a thermostat or receiver (up to 16 A).
Whether you are linking a thermostat to a gas boiler requiring volt-free outputs, a solid fuel boiler needing NC/COM control, or you simply need a way to switch larger loads like pumps or UFH mats, the RM-16A offers the flexibility and protection installers demand.
Product Specifications
| Feature | Details |
|---|---|
| Product Code | RM-16A |
| EAN (Barcode) | 5903669502401 |
| Brand | Salus Controls |
| Type | Relay Module |
| Mounting | Flush-mounted in Ø60 mm box |
| Supply Voltage | 230 V AC, 50 Hz |
| Maximum Load | 16 A / 250 V AC (up to 4000 VA) |
| Contacts | NO, NC, COM (volt-free output) |
| Applications | Boilers (gas/solid fuel), pumps, UFH mats, valves, high-load switching |
| Dimensions | 47 × 47 × 21 mm |
| Warranty | 5 years (manufacturer) |
| Country of Origin | Poland |
Key Features
-
High load handling – safely controls devices up to 16 A, ideal for heavy-duty heating components.
-
Multi-application design – commonly used for:
-
Linking thermostats to boilers requiring volt-free switching (gas boilers).
-
Connecting solid fuel boilers that require NC/COM input.
-
Controlling UFH electric heating mats up to 16 A.
-
Switching pumps or valves when connected via a wiring centre.
-
-
Expands thermostat capability – ensures safe operation when the thermostat’s own relay is not sufficient.
-
Compact flush-mount unit – neat installation into a Ø60 mm wall box.
-
Reliable and durable – built for long service life with robust safety features.
The Salus RM-16A is a compact, powerful, and flexible relay module that covers multiple heating applications — from gas and solid fuel boilers to pumps, UFH mats, and valves. It’s a go-to accessory for installers who need to safely manage higher loads and ensure full system compatibility.
