DN32 Gas Pipe
75m Spool
Pre-Sleeved CSST
BSI Kitemark Certified
Pipe Size
DN32 / 32mm
Spool Length
75 metres
Max Pressure
0.5 bar
Certification
BSI Kitemark KM 598726 / EN 15266

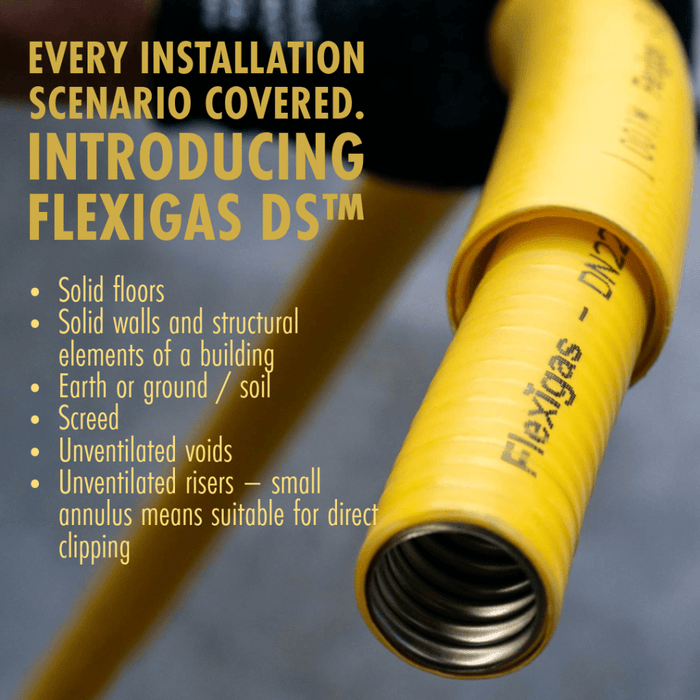

Applications & suitability
Commercial Gas Mains
Suitable for commercial contractors running 32mm gas mains across larger installation sites.
Solid Walls & Floors
Designed to pass through solid walls, floors and structural elements without additional on-site sleeving.
Screed & Soil
The pre-sleeved construction is designed for runs through screed and earth or soil applications.
Unventilated Voids
Suitable for specified runs through unventilated voids and risers, subject to installation requirements.
Key specifications
| Manufacturer / MPN |
FlexiGas™ / DS-32-75 |
| Size |
DN32 (32mm) |
| Length |
75 metres – spool |
| CSST Outer / Internal Diameter |
38mm / 33mm |
| Total Maximum Diameter Including Sleeve |
51mm |
| Maximum Operating Pressure |
0.5 bar (BS/EN 15266) |
| Tubing Material |
1.4404 / 1.4541 stainless steel (BS/EN 10088) |
| Fire Performance |
EN 1775 Annex A & B passed; jacket B-s1 d0, UV resistant |
| Certification |
BSI Kitemark KM 598726, EN 15266 |
| Colour |
Yellow |
| Warranty |
1 year, subject to manufacturer's T&Cs |
Installation & compatibility

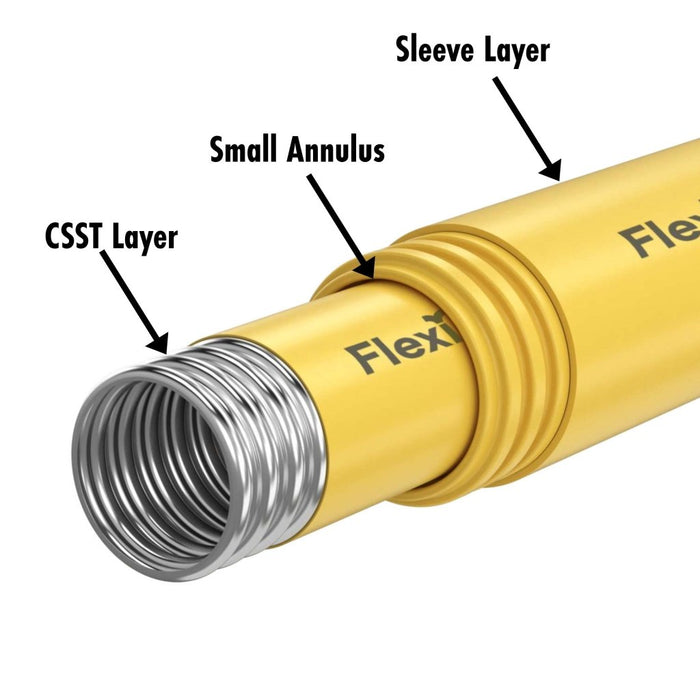

The FlexiGas DS-32 uses a patent-pending pipe-in-pipe construction, combining an inner corrugated stainless steel gas pipe with a yellow PE cover inside a V0 fire-rated corrugated sleeve. The components are designed in a slidable configuration, allowing the CSST to be inserted and withdrawn. The built-in sleeve is designed to meet the definition of a sleeve under the stated UK regulations and standards, including BS 6891 and IGEM/UP/2, 3 & 7. Always ensure installation is carried out in accordance with applicable regulations and manufacturer requirements.
Design & performance benefits
Patent-Pending Pipe-in-Pipe Design
The inner corrugated stainless steel gas pipe sits within a PE cover and V0 fire-rated corrugated sleeve in a slidable configuration.
Flexible Installation
The CSST bends by hand to support long continuous runs with fewer joints and no soldering, sealants or specialist tools.
Fire-Tested Construction
The system has passed EN 1775 Annex A & B fire testing, with a B-s1 d0 UV-resistant jacket.
Metal-to-Metal Connections
Compatible with the FlexiGas FGLink™ range of 130+ dezincification-resistant brass fittings.
Additional installation features
FGLink™ Compatible
Works with the FlexiGas FGLink™ range of more than 130 compatible fittings.
FG Bond™ Ready
Features an integrated earthing terminal certified to BS 951:2009 for electrical bonding applications.
Easy Site Identification
Metre-marked tubing and a high-visibility yellow jacket support easier identification and measurement during installation.
Ideal for
The FlexiGas 32mm Double Sleeved Flexible Gas Pipe DS-32 – 75m Spool is ideal for commercial contractors and larger gas installation projects requiring long 32mm gas runs. The 75m spool supports continuous installation with minimal wastage, while the pre-sleeved construction, flexible CSST design, FGLink™ compatibility and BSI Kitemark certification provide a practical solution for a wide range of specified installation scenarios.
