The patent-pending pipe-in-pipe design combines a corrugated stainless steel gas pipe with a yellow PE cover inside a V0 fire-rated corrugated sleeve. With a built-in sleeve, 130+ compatible FGLink™ fittings and a free roll of silicone tape included, the FlexiGas DS-28 provides a practical solution for professional gas installation projects.
DN28 (28mm)
100m Spool
BSI Kitemark KM 598726
1 Year Warranty
Max Operating Pressure
0.5 Bar
Applications & suitability

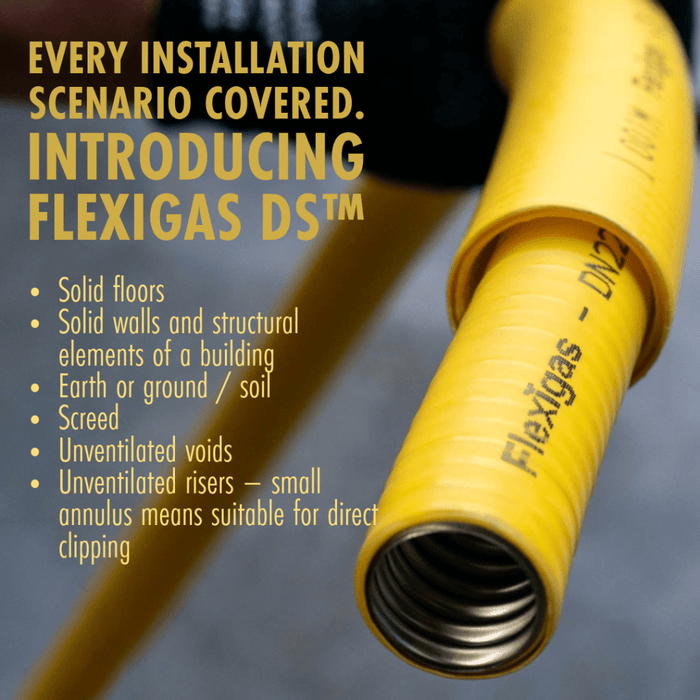

Solid Walls & Floors
The built-in sleeve allows installation through solid walls, solid floors and structural elements without additional sleeving on site.
Screed & Soil
Suitable for routing through screed and earth or soil as part of the installation requirements described for the product.
Unvented Voids & Risers
The integrated sleeve is designed for use through unventilated voids and unventilated risers.
Long Continuous Runs
The flexible CSST construction allows long continuous runs with fewer joints and potential leak points.
Key features

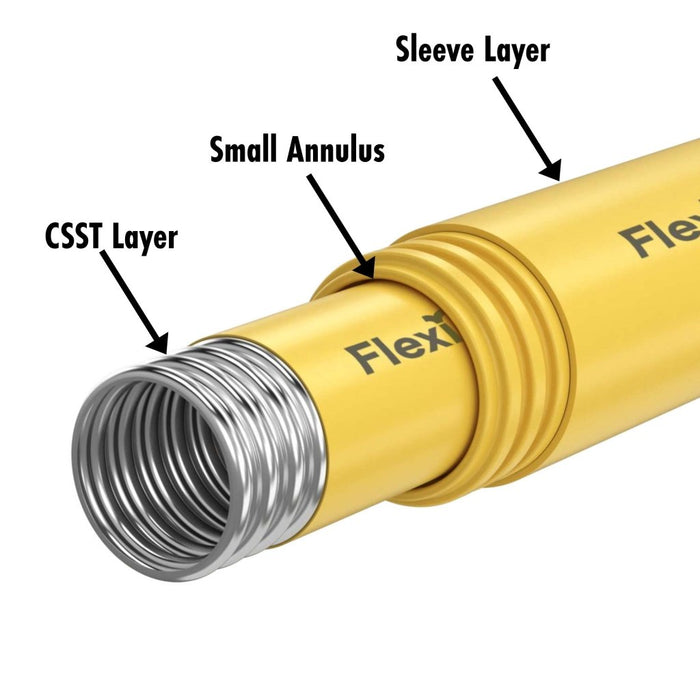

Patent-Pending Pipe-in-Pipe Design
Features an inner corrugated stainless steel gas pipe with yellow PE cover inside a V0 fire-rated corrugated sleeve in a slidable configuration, allowing the CSST to be inserted and withdrawn.
Built-In Sleeve
The integrated sleeve is designed to meet the sleeve requirements described under BS 6891 and IGEM/UP/2, 3 & 7.
Fast, Flame-Free Installation
Bends by hand for continuous runs, with no soldering, sealants or specialist tools required.
130+ FGLink™ Fittings
Compatible with the FlexiGas™ FGLink™ range of 130+ dezincification-resistant brass fittings for secure metal-to-metal connections.
Key specifications
| Manufacturer / MPN |
FlexiGas™ / DS-28-100 |
| Size |
DN28 (28mm) |
| Length |
100 metres – spool |
| CSST Outer / Internal Diameter |
32mm / 27mm |
| Total Max Diameter Including Sleeve |
41mm |
| Max Operating Pressure |
0.5 bar (BS/EN 15266) |
| Tubing Material |
1.4404 / 1.4541 Stainless Steel (BS/EN 10088) |
| Fire Performance |
EN 1775 Annex A & B passed; jacket B-s1 d0, UV resistant |
| Certification |
BSI Kitemark KM 598726, EN 15266 |
| Colour |
Yellow |
| Warranty |
1 year (subject to manufacturer's T&Cs) |
Installation & compatibility
The FlexiGas DS-28 incorporates its own sleeve, allowing the pipe to be installed through solid floors, solid walls, structural elements, earth/soil, screed, unventilated voids and unventilated risers without additional sleeving on site. The small annulus allows direct clipping, while the flexible CSST construction supports long continuous runs. The pipe is compatible with the FlexiGas™ FGLink™ range of 130+ dezincification-resistant brass fittings.
Design & performance benefits
Flexible Installation
The CSST pipe bends easily by hand, helping create long continuous runs with fewer joints.
Reduced Installation Requirements
The built-in sleeve eliminates the need for additional sleeving on site across the specified installation scenarios.
Fire Tested
The system has passed EN 1775 Annex A & B fire testing, with a B-s1 d0 UV-resistant jacket.
Secure Connections
The pipe is compatible with the FGLink™ range of 130+ dezincification-resistant brass fittings for metal-to-metal sealing.
Additional installation features
FG Bond™ Ready
Features an integrated earthing terminal certified to BS 951:2009 for electrical bonding.
Metre-Marked Tubing
The tubing is metre-marked to assist with measuring and cutting during installation.
Silicone Tape Included
Each 100m spool includes one free roll of silicone tape.
Ideal for
Commercial Installers
Suitable for professional installers working on larger gas pipework projects using 28mm CSST.
Multi-Plot Developments
The 100m spool is suited to volume installation work requiring longer lengths of 28mm gas pipe.
Long Gas Runs
Flexible CSST construction supports long continuous runs with fewer joints and minimal wastage through exact cuts.
FGLink™ Installations
Pairs with FlexiGas spool rollers, DS end caps and the FGLink™ range of compatible fittings.
The FlexiGas 28mm Double Sleeved Flexible Gas Pipe DS-28 – 100m Spool provides a pre-sleeved CSST solution for professional gas installation projects. With a built-in V0 fire-rated sleeve, BSI Kitemark certification, 100m spool length, flexible hand-bending design and compatibility with 130+ FGLink™ fittings, it is designed for efficient installation across a wide range of specified applications.
