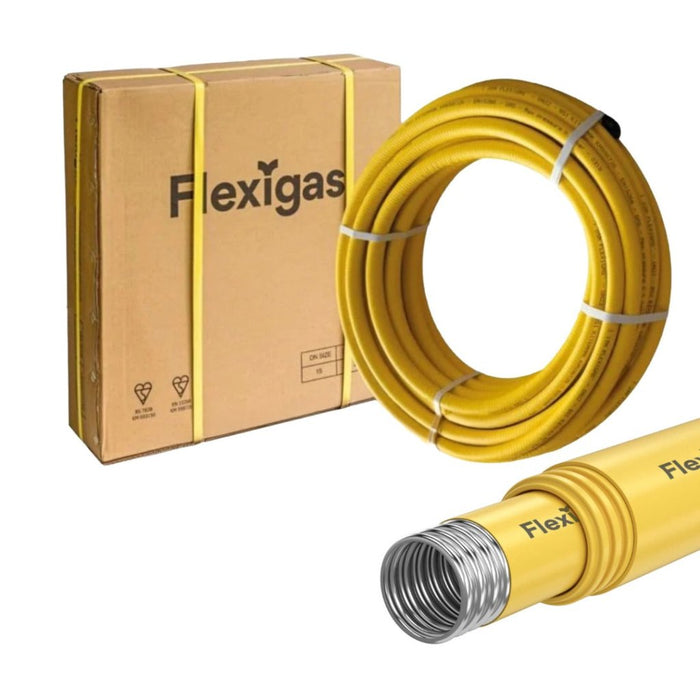

Flexigas 22mm Flexible Gas Pipe 15M Box

by FlexiGas
SKU DS-22-15
£177.82 - £177.82
£177.82
£177.82 - £177.82
£177.82

Free Local Shipping

Free Local Shipping on orders over £100. Standard delivery to most UK postcodes within 2-3 working days. Express options available at checkout.

Contact Us

Give Us A Call +44 118 958 8882 Our team is here to help. We will provide expert advice on specifications, compatibility, and delivery options.

30-day Easy Return

30 days Easy Return — no questions asked. If you're not completely satisfied, send it back within 14 days for a full refund.

The FlexiGas 22mm Double Sleeved Flexible Gas Pipe (DS-22) – 15m Box is a pre-sleeved, twin-layer CSST gas pipe designed to pass through a wide range of installation scenarios straight out of the box, including solid walls, solid floors, screed, soil and unvented voids. With no additional sleeving required on site, it provides a practical solution for domestic gas installations where efficient routing and installation are important.

Certified under the BSI Kitemark scheme KM 598726 and manufactured to BS/EN 15266, the 22mm FlexiGas DS-22 bends easily by hand for long continuous runs and is designed to install up to 4x faster than copper or rigid steel. The 15-metre boxed coil is particularly suited to individual boiler and appliance installations, with a free roll of silicone tape included in every box.

22mm DN22 15m Boxed Coil BSI Kitemark Certified 1 Year Warranty
Pipe Size
DN22 / 22mm
Length
15 Metres
Max Operating Pressure
0.5 bar
Certification
KM 598726 / EN 15266

Applications & suitability

Boiler Installations

Suitable for 22mm gas feeds to boilers and appliances where flexible routing is required.

Walls & Floors

The built-in sleeve allows installation through solid walls, solid floors and structural elements without separate sleeving.

Screed & Soil

Designed for routing through screed and soil as part of the stated installation scenarios.

Unvented Areas

Suitable for unvented voids and unventilated installation areas without requiring additional site-applied sleeving.

Key specifications

Manufacturer / MPN FlexiGas™ / DS-22-15
Size DN22 (22mm)
Length 15 metres — boxed coil
CSST Outer / Internal Diameter 25.6mm / 21.4mm
Total Max Diameter Including Sleeve 35mm
Max Operating Pressure 0.5 bar (BS/EN 15266)
Tubing Material 1.4404 / 1.4541 Stainless Steel (BS/EN 10088)
Fire Performance EN 1775 Annex A & B passed; jacket B-s1 d0, UV resistant
Certification BSI Kitemark KM 598726, EN 15266
Colour Yellow
Warranty 1 year (subject to manufacturer's T&Cs)

Installation & compatibility

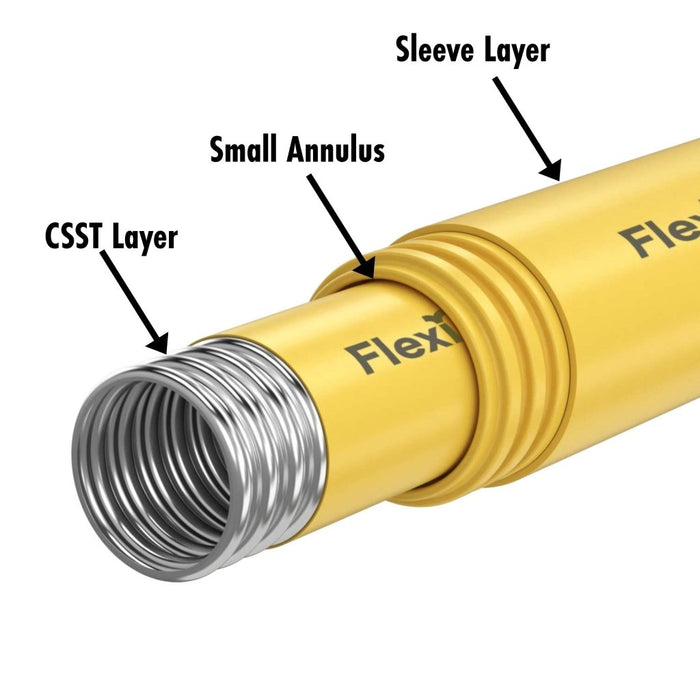

The FlexiGas DS-22 features a built-in sleeve manufactured to BS 6891 and IGEM/UP/2, 3 & 7, allowing the pipe to be routed through the stated installation scenarios without additional sleeving on site. The inner corrugated stainless steel gas pipe sits within a yellow PE cover and V0 fire-rated corrugated sleeve in a slidable pipe-in-pipe configuration. The small annulus also allows direct clipping.

Design & performance benefits

Patent-Pending Pipe-in-Pipe Design

The corrugated stainless steel gas pipe and protective sleeve use a slidable configuration, allowing the CSST to be inserted and withdrawn.

Fast, Flame-Free Installation

The pipe bends by hand for continuous runs, with no soldering, sealants or specialist tools required.

Reduced Joints

Long continuous runs can reduce the number of joints and potential leak points compared with conventional rigid pipework.

130+ FGLink™ Fittings

Compatible with the FlexiGas FGLink range of 130+ dezincification-resistant brass fittings for secure metal-to-metal connections.

Additional installation features

Built-In Sleeve

Sleeving is integrated into the product and is designed to meet the stated BS 6891 and IGEM/UP requirements.

FG Bond™ Ready

The integrated earthing terminal is certified to BS 951:2009 and supports the FG Bond system.

Ready for On-Site Use

Metre-marked tubing, a high-visibility yellow jacket and one free roll of silicone tape are supplied with every 15m box.

Ideal for

Gas Safe Engineers

Designed for Gas Safe engineers installing 22mm boiler and appliance gas feeds.

Domestic Gas Installations

The compact 15m box is suited to individual domestic installations requiring flexible gas routing.

Walls, Floors & Screed

Suitable for routing through the stated solid wall, floor and screed applications without additional sleeving.

Single-Install Requirements

The 15-metre boxed coil provides a convenient length for individual boiler and appliance feed installations.

The FlexiGas 22mm Double Sleeved Flexible Gas Pipe DS-22 – 15m Box combines a pre-sleeved CSST gas pipe, flexible installation, BSI Kitemark certification and compatibility with 130+ FGLink™ fittings. With its built-in sleeve, V0 fire-rated corrugated sleeve, yellow UV-resistant jacket, integrated earthing terminal and supplied silicone tape, it is designed for efficient 22mm gas pipework installations across the stated domestic applications.

Specifications

BrandFlexiGas
Part NumberDS-22-15
