Megaflo Eco Slimline 125l Direct Unvented Hot Water Cylinder

by Megaflo
SKU 7034083
Original price £964.80 - Original price £964.80
Original price
£964.80
£964.80 - £964.80
Current price £964.80

Free Local Shipping

Free Local Shipping on orders over £100. Standard delivery to most UK postcodes within 2-3 working days. Express options available at checkout.

Contact Us

Give Us A Call +44 118 958 8882 Our team is here to help. We will provide expert advice on specifications, compatibility, and delivery options.

30-day Easy Return

30 days Easy Return — no questions asked. If you're not completely satisfied, send it back within 14 days for a full refund.

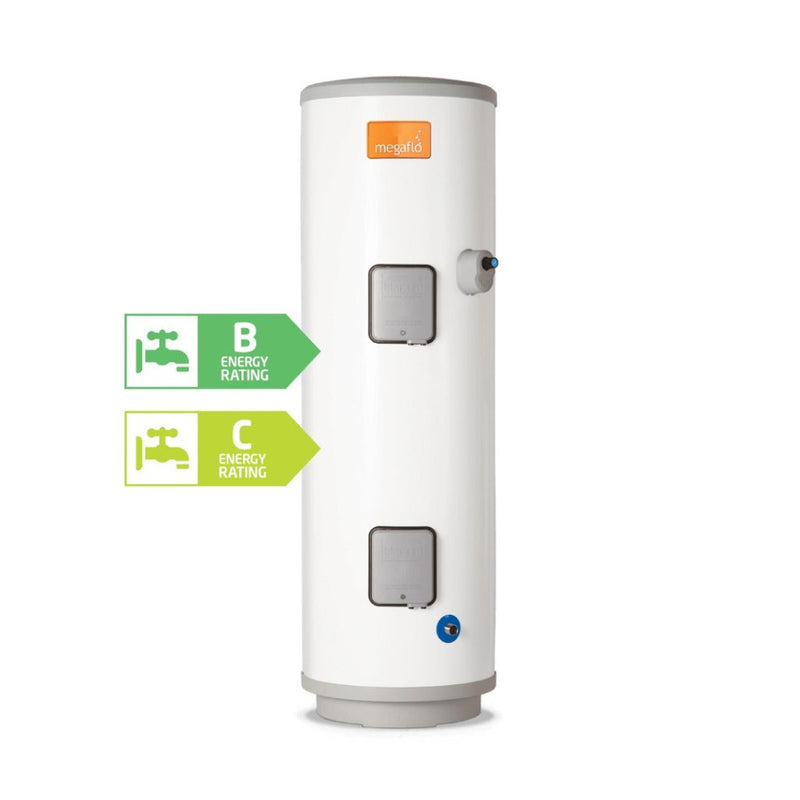

The Megaflo Eco Slimline Direct 125L is a compact unvented hot water cylinder designed for homes where a standard-width cylinder may not fit. With a slimline 491mm diameter, it provides up to 70 l/min at 3 bar and uses two titanium immersion elements for reliable performance. The internal floating baffle eliminates the need for an external expansion vessel, while 50mm CFC-free polyurethane foam insulation helps reduce standing heat loss.

125L Capacity Slimline 491mm Diameter 2 × 3kW Titanium Immersions Kiwa Approved
Capacity
125 Litres
Diameter
491mm
Maximum Flow
70 l/min @ 3 bar
ERP Rating
C

Applications & suitability

Compact Homes

Suitable for homes where a standard-width hot water cylinder cannot be accommodated.

Slimline Installations

The 491mm diameter provides a narrow footprint for space-conscious installations.

Direct Hot Water

Uses two 3kW titanium immersion elements to heat the stored hot water.

Hard Water Areas

Titanium immersion elements are supplied as standard for hard water durability.

Key specifications

Nominal Capacity 125 litres
Height 1440mm
Diameter 491mm
Weight Empty / Full 33kg / 162kg
Standing Heat Loss 1.38 kWh/24h
Maximum Flow at 3 Bar 70 l/min
Immersion 2 × 3kW @ 240V Titanium
Operating Pressure 3 bar
Maximum Mains Pressure 16 bar
ERP Rating C
Product Code 7034083

Installation & compatibility

The Megaflo Eco Slimline Direct 125L is an unvented hot water cylinder designed for direct heating using its integrated immersion elements. It includes a factory-fitted T&P valve, 3 bar PRV, tundish and unvented kit. The internal floating baffle means no external expansion vessel is required.

Design & performance benefits

Slimline Footprint

The 491mm diameter is designed for installations where available width is limited.

Titanium Immersions

Two 3kW titanium immersion elements are supplied as standard.

High Flow Rate

Delivers up to 70 l/min at 3 bar for mains-pressure hot water delivery.

Insulated Construction

50mm CFC-free polyurethane foam insulation helps limit standing heat loss.

Additional installation features

Factory-Fitted Safety Components

Includes T&P valve, 3 bar PRV, tundish and unvented kit.

Internal Expansion Arrangement

Internal floating baffle removes the need for a separate external expansion vessel.

UK Manufactured

Made in the UK and Kiwa approved, with an ERP rating of C.

Ideal for

The Megaflo Eco Slimline Direct 125L is ideal for homes requiring a compact 125 litre unvented hot water cylinder with a slim 491mm footprint. Its two titanium immersion elements, internal floating baffle, factory-fitted unvented components and 50mm insulation make it a practical option for space-conscious direct hot water installations.

Specifications

BrandMegaflo
Part Number7034083
Capacity125 litres
Height1440mm
Diameter491mm
Weight (empty)33kg
Weight (full)162kg
Standing Loss58W
ErP Energy ClassC
Power240V
ModesElectric Immersion Heating
MountingFloor Standing
DimensionsH: 1440mm × W: 491mm × D: 516mm
Warranty30 years inner tank, 2 years product
