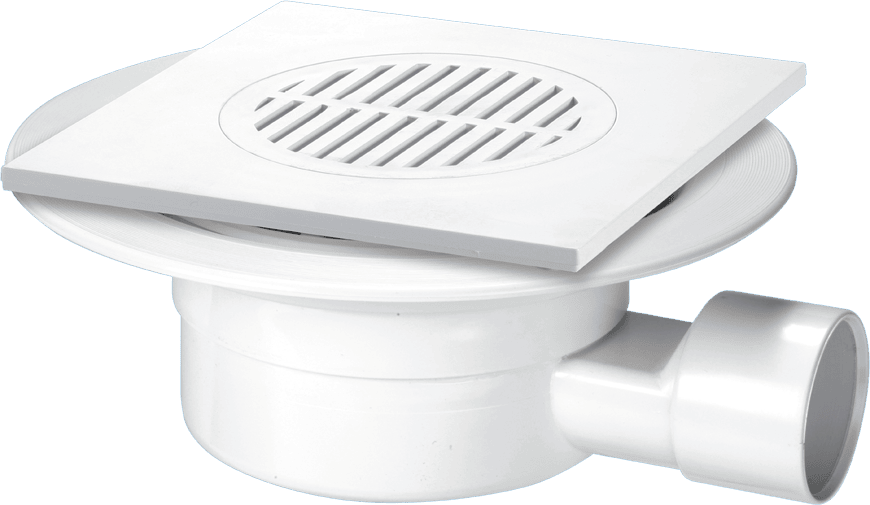

McAlpine VSG1T6WH Non Return Valve Gully

The McAlpine VSG1T6WH is a non-return valve gully designed for effective drainage in tiled or stone floor applications. Here are the key features and specifications:

Specifications

• Model: VSG1T6WH
• Outlet Size: 1½” horizontal outlet (BS EN 1329-1:2020 solvent weld).
• Material: Manufactured from high-quality ABS plastic.
• Cover Plate Options: Available with a 150mm polished stainless steel or white ABS tile.
• Overall Height: Approximately 75mm, making it suitable for installations where depth is restricted.

Features

• Non-Return Valve: The valve opens with the weight of the water discharge and reseals when the discharge ceases, preventing foul air from entering the dwelling.
• Flow Rate: Capable of handling flow rates of up to 36 liters per minute when tested under a constant 15mm head of water, in accordance with BS EN 274-2:2002.
• Easy Cleaning: The valve can be easily removed for maintenance and cleaning.
• Versatile Installation: Suitable for installation in concrete and suspended timber floors, making it ideal for a range of applications.

Applications

• Perfect for use in shower areas, domestic wet rooms, and other applications where efficient drainage is required.

Installation

• The gully is designed for straightforward installation, making it user-friendly for both professionals and DIY enthusiasts.

For detailed installation instructions and technical drawings, you can refer to the manufacturer's documentation available on their website. If you're looking to purchase, check local plumbing supply stores or online retailers that stock McAlpine products.
