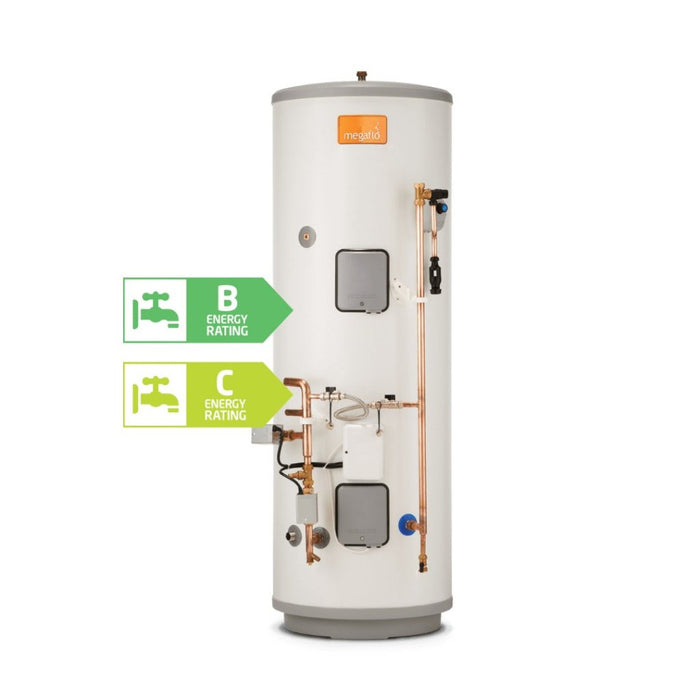

Megaflo Eco SystemReady 210SB Indirect Unvented Hot Water Cylinder
Free Local Shipping
Free Local Shipping on orders over £100. Standard delivery to most UK postcodes within 1-2 working days. Express options available at checkout for more information, see here
Contact Us
Give Us A Call +44 118 958 8882 Our team is here to help. We will provide expert advice on specifications, compatibility, and delivery
30-day Easy Return
30 days Easy Return — no questions asked. If you're not completely satisfied, send it back within 30 days for a full refund.
Description
The Megaflo Eco SystemReady 210SB is a 210-litre indirect unvented hot water cylinder designed specifically for system boiler installations. It combines the performance of the Megaflo Eco range with factory-fitted plumbing and wiring, helping reduce installation time while providing a consistently neat and organised installation.
Designed for mains-pressure domestic hot water, the SystemReady 210SB features a high-grade duplex stainless steel inner vessel, 60mm CFC/HCFC-free polyurethane foam insulation and an internal floating baffle expansion vessel built into the cylinder shell. It is factory fitted with key electrical, safety and control components, including a 3kW immersion heater, T&P valve, tundish, wiring centre and 22mm 2-port motorised valve.
Key Highlights
Applications & Suitability
- Designed specifically for system boiler installations.
- Suitable for domestic hot water systems requiring 210-litre storage capacity.
- Factory-fitted plumbing and wiring helps simplify installation.
- Suitable for mains-pressure unvented hot water systems.
- Internal floating baffle eliminates the need for a separate external expansion vessel.
- Suitable for installations requiring a factory-fitted wiring centre and motorised valve.
Key Specifications
| Specification | Value |
|---|---|
| Nominal Capacity | 210 litres |
| Height | 1486 mm |
| Width | 579 mm |
| Depth | 710 mm |
| Weight Empty / Full | 51 kg / 250 kg |
| Standing Heat Loss | 1.42 kWh/24h |
| Max Flow at 3 Bar | 76 l/min |
| Max Flow at 1 Bar | 45 l/min |
| Heat-Up Time | 28 min (15 l/min, 80°C primary, 15°C–60°C) |
| Recovery 70% Draw-Off | 19 min |
| Backup Immersion | 1 × 3kW @ 240V |
| Operating Pressure | 3 bar (0.3 MPa) |
| Max Mains Pressure | 16 bar (1.6 MPa) |
| Min Recommended Supply Pressure | 1.5 bar / 20 l/min |
| Inner Vessel | High Grade Duplex Stainless Steel |
| Insulation | 60mm CFC/HCFC-free Polyurethane Foam |
| ERP Rating | B |
| Product Code | 95050500 |
System Boiler Ready Design
The Megaflo Eco SystemReady 210SB is purpose-built for system boiler installations. Factory-fitted plumbing and wiring helps reduce the amount of component preparation required during installation while providing an organised cylinder arrangement.
Factory-Fitted Components
The cylinder is supplied with a range of key components already fitted and wired. These include 1 × 3kW immersion heater with cylinder thermostat and high-limit overheat cut-out, a temperature and pressure relief valve, 15/22mm tundish, wiring centre and 22mm 2-port motorised valve.
- Immersion heater: 1 × 3kW with thermal controls, pre-wired.
- T&P relief valve: Set at 90°C / 10 bar with T&P insulation kit.
- Tundish: 15/22mm, factory fitted.
- Wiring centre: Factory fitted and ready for connection.
- 2-port motorised valve: 22mm, pre-fitted and wired.
Internal Floating Baffle Expansion System
An internal floating baffle expansion vessel is built into the cylinder shell. This means a separate external expansion vessel is not required for the cylinder's expansion arrangement, helping maintain a cleaner installation.
Supplied Cold Water Inlet Control Kit
The cold water inlet control kit is supplied with the cylinder for the installer to fit on site. The kit comprises the components required for the specified cold water inlet arrangement:
- 3 bar (0.3 MPa) pressure reducing valve.
- 8 bar (0.8 MPa) pressure relief valve.
- ¼-turn isolating valve.
- Line strainer.
- Non-return valve.
- Drain valve.
The supplied pressure relief valve components are specified to BS EN 1567, BS EN 1491 and EN 13959.
Installer Connections
The installer connects the required services on site, including the cold mains supply via the supplied inlet control kit, hot water outlet to the distribution pipework, primary flow and return from the system boiler, tundish discharge pipe to a compliant termination point and a 230V electrical supply to the wiring centre.
- Cold mains supply to cylinder inlet via supplied inlet control kit.
- Hot water outlet to distribution pipework.
- Primary flow and return from the system boiler.
- Tundish discharge pipe to a compliant termination point in accordance with Building Regulations Part G.
- 230V electrical supply to the wiring centre.
High-Flow Mains-Pressure Hot Water
The SystemReady 210SB provides a stated maximum flow of 76 litres per minute at 3 bar and 45 litres per minute at 1 bar. The 210-litre storage capacity provides a substantial domestic hot water store for system boiler installations.
Heat-Up & Recovery Performance
Under the specified test conditions of 15 l/min flow, 80°C primary temperature and a 15°C–60°C temperature increase, the stated heat-up time is 28 minutes. The recovery time for a 70% draw-off is stated as 19 minutes.
Duplex Stainless Steel & Insulation
The inner vessel is manufactured from high-grade duplex stainless steel. The cylinder is insulated using 60mm CFC/HCFC-free polyurethane foam, with a stated standing heat loss of 1.42 kWh per 24 hours and an ErP rating of B.
Ideal For
- System boiler installations.
- Domestic properties requiring 210-litre hot water storage.
- Mains-pressure unvented hot water systems.
- Installations where factory-fitted plumbing and wiring can simplify installation.
- Systems requiring an integrated expansion arrangement.
- Installations requiring a factory-fitted 2-port motorised valve and wiring centre.
Frequently Asked Questions
The cylinder has a 210-litre nominal capacity.
It is designed specifically for system boiler installations.
Yes. The cylinder has factory-fitted plumbing and wiring components including the wiring centre, 22mm 2-port motorised valve, tundish and immersion heater controls.
No separate external expansion vessel is required for the cylinder's expansion arrangement because an internal floating baffle expansion vessel is built into the cylinder shell.
The cylinder has 1 × 3kW immersion heater at 240V, with a cylinder thermostat and high-limit overheat cut-out.
The stated maximum flow is 76 litres per minute at 3 bar and 45 litres per minute at 1 bar.
The cylinder measures 1486mm high × 579mm wide × 710mm deep.
The Megaflo Eco SystemReady 210SB has an ErP rating of B.
The Megaflo Eco SystemReady 210SB (95050500) is a 210-litre indirect unvented cylinder designed for system boiler installations. With factory-fitted plumbing and wiring, 76 l/min maximum flow at 3 bar, a 3kW backup immersion heater, internal floating baffle expansion arrangement, high-grade duplex stainless steel construction and 60mm CFC/HCFC-free insulation, it provides a practical and organised solution for mains-pressure domestic hot water systems.
Order Now!
Upgrade your system boiler installation with the Megaflo Eco SystemReady 210SB 210L Indirect Unvented Hot Water Cylinder for factory-fitted plumbing, wiring and reliable mains-pressure hot water performance.
