Megaflo Eco SystemReady 170SB Indirect Unvented Hot Water Cylinder
Shipping time: 2–7 days
Please call us for precise delivery dates.
Description

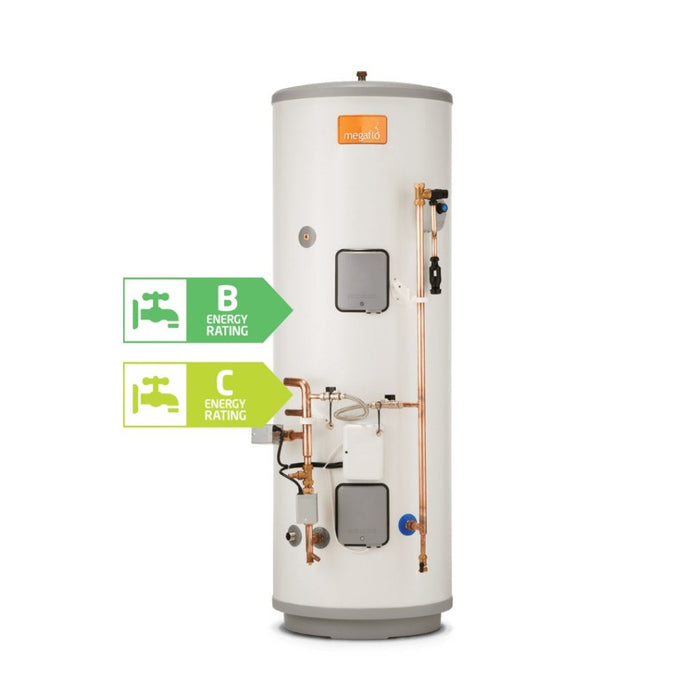

The Megaflo Eco SystemReady 170SB is a 170-litre indirect unvented hot water cylinder built for system boiler installations. It provides all the performance of the Megaflo Eco range with the addition of factory-fitted plumbing and wiring — reducing installation time and delivering a consistently neat finish.
Factory fitted on the cylinder:
- Immersion heater (1 × 3kW) with thermal controls — cylinder thermostat and high-limit overheat cut-out, pre-wired
- Temperature & pressure relief valve — set at 90°C / 10 bar (BS EN 1490), with T&P insulation kit fitted
- 15/22mm tundish — factory fitted
- Wiring centre and 22mm 2-port motorised valve — pre-fitted and wired
- Internal floating baffle expansion vessel — built into the cylinder shell; no separate external expansion vessel required
Supplied with the cylinder — fitted on site by installer:
- Cold water inlet control kit comprising: 3 bar (0.3 MPa) pressure reducing valve, 8 bar (0.8 MPa) pressure relief valve (BS EN 1567, BS EN 1491, EN 13959), ¼-turn isolating valve, line strainer, non-return valve, drain valve
Installer connects on site:
- Cold mains supply to cylinder inlet (via supplied inlet control kit)
- Hot water outlet to distribution pipework
- Primary flow and return from system boiler
- Tundish discharge pipe to a compliant termination point (Building Regs Part G)
- 230V electrical supply to wiring centre
| Specification | Value |
|---|---|
| Nominal capacity | 170 litres |
| Height | 1384mm |
| Width | 579mm |
| Depth | 710mm |
| Weight empty / full | 48 kg / 230 kg |
| Standing heat loss | 1.20 kWh/24h |
| Max flow at 3 bar | 76 l/min |
| Max flow at 1 bar | 45 l/min |
| Heat-up time (15 l/min, 80°C primary, 15°C–60°C) | 22 min |
| Recovery 70% draw-off | 16 min |
| Backup immersion | 1 × 3kW @ 240V |
| Operating pressure | 3 bar (0.3 MPa) |
| Max mains pressure | 16 bar (1.6 MPa) |
| Min recommended supply pressure | 1.5 bar / 20 l/min |
| Inner vessel | High grade duplex stainless steel |
| Insulation | 60mm CFC/HCFC-free polyurethane foam |
| ERP rating | B |
| Product code | 95050499 |
