Megaflo Eco SystemFit 170SF Indirect Unvented Hot Water Cylinder
Shipping time: 2–7 days
Please call us for precise delivery dates.
Description

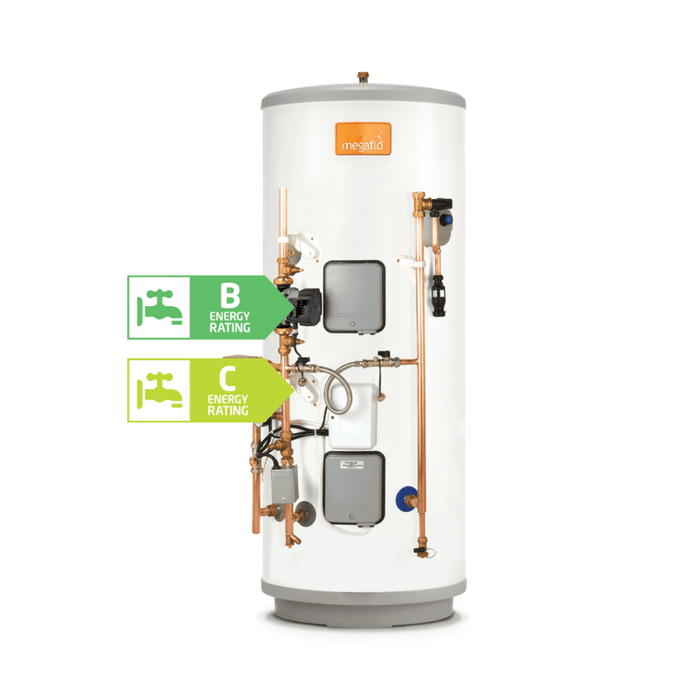

The Megaflo Eco SystemFit 170SF is a 170-litre indirect unvented hot water cylinder designed for installation with a heat-only (regular) boiler. It goes one step further than the standard Megaflo Eco by adding factory-fitted plumbing and wiring — reducing installation time and delivering a consistently neater appearance.
Factory fitted on the cylinder:
- Immersion heater (1 × 3kW) with thermal controls — long-life Superloy 825 alloy sheathed element, pre-wired
- Temperature & pressure relief valve — set at 90°C / 10 bar (BS EN 1490), with T&P insulation kit and 15/22mm tundish
- 8 bar pressure relief valve — incorporating check valve
- Drain valve
- Wiring centre
- 3 × 22mm 2-port motorised valves — pre-fitted and wired for CH zone 1, CH zone 2 and DHW
- Primary circulation pump — Grundfos UPM3 Auto L 25-70, factory fitted
- Lock shield flow balancing valve
- Automatic differential bypass valve
- Internal floating baffle expansion vessel — built into the cylinder shell; no separate DHW expansion vessel required
Supplied with the cylinder:
- Cold water inlet control kit — 3 bar (0.3 MPa) pressure reducing valve incorporating strainer, with check valve (BS EN 1567, BS EN 1491, EN 13959)
| Specification | Value |
|---|---|
| Nominal capacity | 170 litres |
| Height | 1384mm |
| Width | 630mm |
| Depth | 720mm |
| Weight empty / full | 52 kg / 234 kg |
| Standing heat loss | 1.20 kWh/24h |
| Max flow at 3 bar | 76 l/min |
| Max flow at 1 bar | 45 l/min |
| Heat-up time (15 l/min, 80°C primary, 15°C–60°C) | 22 min |
| Recovery 70% draw-off | 16 min |
| Backup immersion | 1 × 3kW @ 240V |
| Operating pressure | 3 bar (0.3 MPa) |
| Max mains pressure | 16 bar (1.6 MPa) |
| Min recommended supply pressure | 1.5 bar / 20 l/min |
| Inner vessel | High grade duplex stainless steel |
| Insulation | 60mm CFC/HCFC-free polyurethane foam |
| ERP rating | B |
| Product code | 95050452 |
