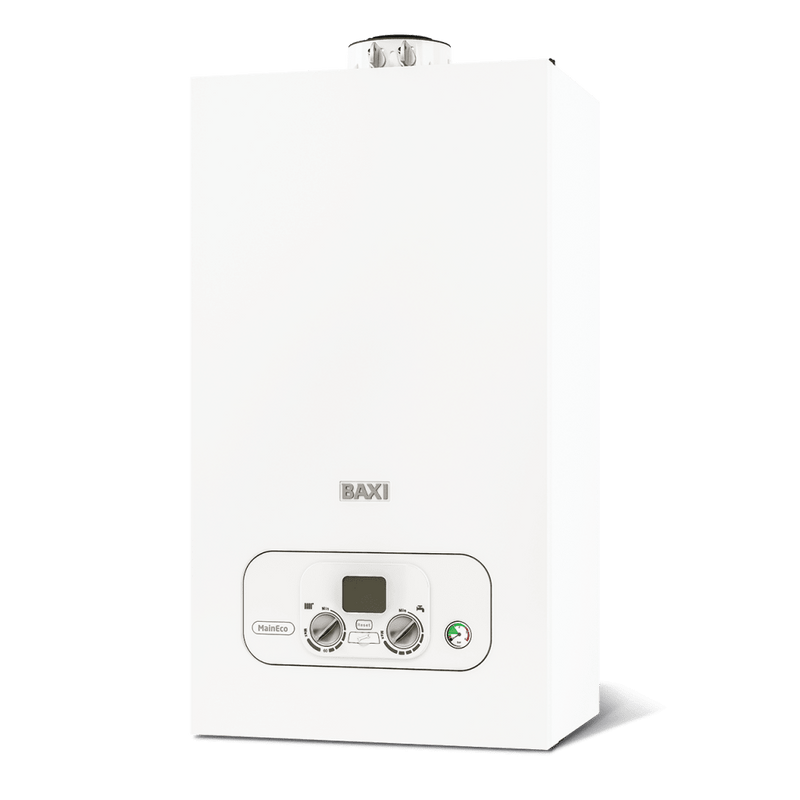

Baxi MainEco Compact 25kW Combi Boiler - 7906992
The Baxi MainEco Compact 25 is a cupboard-fit natural gas combi delivering 25kW of hot water output and 20kW to the heating circuit — the right size for a two to three bedroom home with one bathroom. It carries a stainless steel heat exchanger and brass hydraulics, weighs just 29kg on the wall and puts the pressure gauge on the front where you can see it.
Main is now Main by Baxi. Same boiler, new sales code 7906992 (formerly Main code 7714519).
Applications & suitability
Where it goes
A two to three bedroom home on mains gas with one bathroom. The 700 × 390 × 285mm casing is a genuine kitchen-cupboard fit with 5mm side clearances.
Typical job
A straight combi-for-combi replacement in a terrace or semi — heating and hot water from one box, no tanks, no cylinder.
Works with / replaces
Pairs with the Baxi OpenTherm RF thermostat for modulating control and accepts the Baxi Multifit pre-plumb jig, making it a like-for-like swap for an older Main or Baxi combi.
When not to choose this
One outlet at a time: at 10.2 l/min you will notice the drop if two showers run together. For a busier household step up to the 30kW model or pair a system boiler with a cylinder. Natural gas only — there is no LPG version.
Key specifications
| Identity | |
| Brand | Baxi |
| Model | MainEco Compact Combi 25 |
| Boiler type | Combi |
| Fuel | Natural gas (no LPG version) |
| Performance | |
| Output (central heating) | 20 kW |
| Output (DHW) | 25 kW |
| Flow rate at 35 °C rise | 10.2 l/min |
| ErP efficiency class | A |
| Seasonal space heating efficiency | 93% |
| NOx class | 6 |
| Physical | |
| Dimensions (H × W × D) | 700 × 390 × 285 mm |
| Weight | 29 kg |
| Flue type | Concentric 60/100 mm |
| Compatibility | |
| Controls compatibility | Baxi OpenTherm RF thermostat |
| Electrical supply | 230 V / 50 Hz |
| Warranty | 5 years (registration required) |
Installation & compatibility
This is a gas appliance: installation, commissioning and servicing must be carried out by a Gas Safe registered engineer. Choose the boiler-only or flue pack option above — the flue is not included with the boiler-only option. *The 5-year parts and labour warranty applies subject to registration with Baxi after installation.
Related products
Baxi MainEco Compact 30kW Combi
Higher 12.2 l/min flow for homes with heavier hot water use.
View 30kW CombiBaxi MainEco Compact System
For multi-bathroom homes running a hot water cylinder.
View System BoilerIdeal for
One-bathroom homes on mains gas that want heating and hot water from a single compact unit, and installers after a light, front-access boiler for straight swaps. Next-day delivery nationwide or click & collect from our Reading trade counter.
