Kartell K-Rad Type 11 Single Panel Single Convector Radiator 750mm x 1200mm
Need Help Choosing the Right Radiator?
Calculate the correct BTU output for your room in under a minute.
Calculate Your BTU →Free Local Shipping
Free Local Shipping on orders over £100. Standard delivery to most UK postcodes within 2-3 working days. Express options available at checkout.
Contact Us
Give Us A Call +44 118 958 8882 Our team is here to help. We will provide expert advice on specifications, compatibility, and delivery options.
30-day Easy Return
30 days Easy Return — no questions asked. If you're not completely satisfied, send it back within 14 days for a full refund.

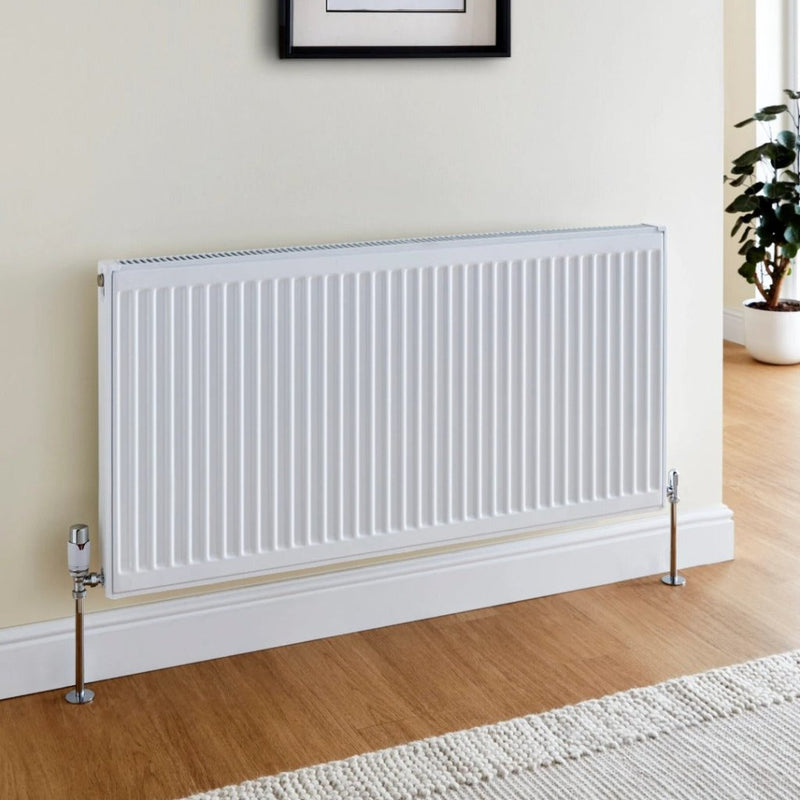

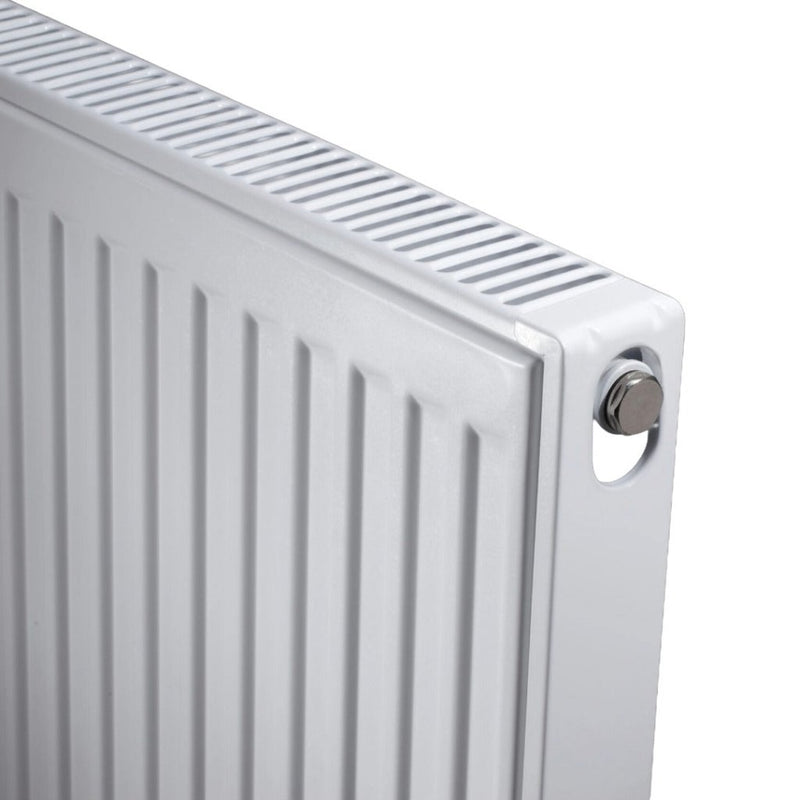

The Kartell K-Rad Kompact S712K is a Type 11 single panel, single convector radiator, 750 × 1200 mm, giving 1290 W (4403 BTU/h) at ΔT50. A single water-carrying panel with one bank of convector fins in a 56 mm case — the slimmest panel in the Kompact range, and the easiest to fit alongside pipework, furniture and door swings. Nett weight is 25.92 kg and it holds 3.6 litres of system water.
Applications & suitability
Key specifications
| Brand | Kartell |
| Model | K-Rad Kompact S712K |
| Radiator type | Type 11 — single panel, single convector |
| Heat output | |
| Output at ΔT50 | 1290 W (4403 BTU/h) |
| Output at ΔT60 | 1653 W (5640 BTU/h) |
| Size and weight | |
| Dimensions (H × W × D) | 750 × 1200 × 56 mm |
| Centre distance | 695 mm |
| Wall to centre | 40 or 55 mm |
| Weight | 25.92 kg |
| Water content | 3.6 l |
| Build and rating | |
| Max working pressure | 10 bar |
| Max working temperature | 120 °C |
| Finish | White enamel, RAL 9016 |
| Standard | EN 442 |
| Warranty | 10 years |
Installation & compatibility
Fix no lower than 100 mm from the finished floor. Allow 35 mm from the wall to pipe centre for a manual valve, or 45 mm for a TRV. Kartell requires the system to be cleansed and dosed with inhibitor to BS 7593:2019 — skipping it invalidates the guarantee, which covers product replacement only. Leave the protective packaging on until the radiator is fixed and the tappings are cut.
