Kartell K-Rad Type 11 Single Panel Single Convector Radiator 500mm x 2400mm

by Kartell
SKU S524K
£141.39 - £141.39
£141.39
£141.39 - £141.39
£141.39

Need Help Choosing the Right Radiator?

Calculate the correct BTU output for your room in under a minute.

Calculate Your BTU →

Free Local Shipping

Free Local Shipping on orders over £100. Standard delivery to most UK postcodes within 2-3 working days. Express options available at checkout.

Contact Us

Give Us A Call +44 118 958 8882 Our team is here to help. We will provide expert advice on specifications, compatibility, and delivery options.

30-day Easy Return

30 days Easy Return — no questions asked. If you're not completely satisfied, send it back within 14 days for a full refund.

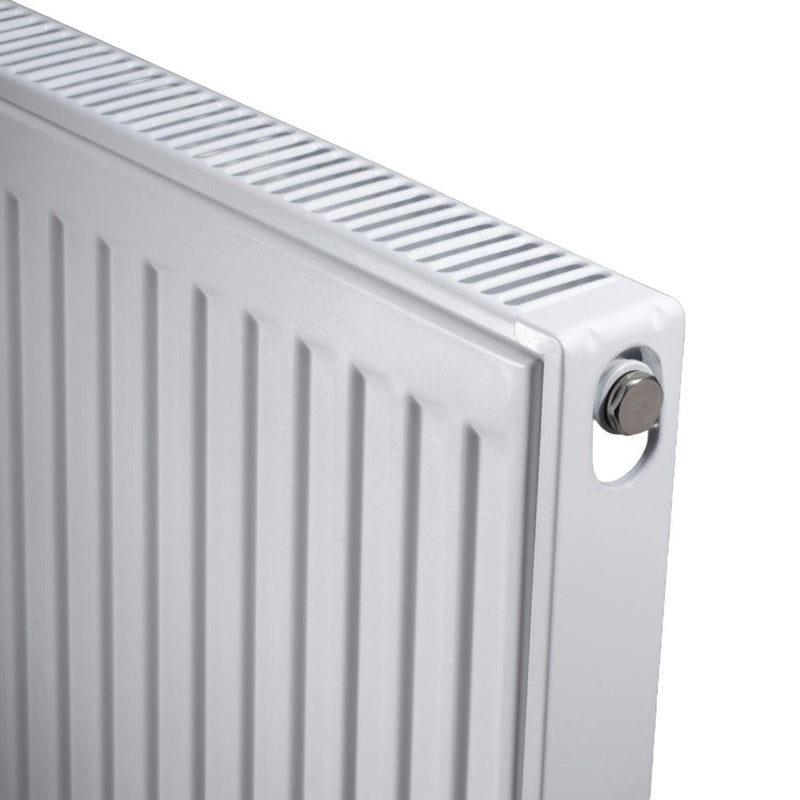

The Kartell K-Rad Kompact S524K is a Type 11 single panel, single convector radiator, 500 × 2400 mm, giving 1958 W (6682 BTU/h) at ΔT50. A single water-carrying panel with one bank of convector fins in a 56 mm case — the slimmest panel in the Kompact range, and the easiest to fit alongside pipework, furniture and door swings. At 2400 mm wide it is a long radiator — check the run of clear wall before ordering.

Type 11 single panel500 × 2400 × 56 mm1958 W at ΔT50EN 442 testedWhite enamel RAL 901610-year guarantee
6682 BTU/h
Output at ΔT50 — 1958 W
34.56 kg
Nett weight — holds 5.76 l
EN 442
Tested and certified
10 years
Manufacturer guarantee

Applications & suitability

Where it goes
Wall-hung on a sealed or open-vented wet heating system, fixed no lower than 100 mm off the finished floor. At 500 mm high it suits a wall where vertical space is tight.
Typical job
A room needing roughly 1958 W on a 70 °C mean water temperature, or 2508 W where the system runs at 80 °C. Straight swap for a tired 500 × 2400 single panel of the same size.
Works with / replaces
Pipe centres are 445 mm with a wall-to-centre of 40 or 55 mm, so it lines up with most existing 500 mm-high panels. Case depth is 56 mm against 70 mm for a Type 21 and 105 mm for a Type 22.
When not to choose this
The 1958 W figure is at ΔT50. Run a heat pump at low flow temperatures and it falls hard — Kartell’s own correction factor at ΔT30 is 0.515, so you would get about 1008 W from this radiator. Size at the ΔT you will actually run, and step up to a Type 21 or Type 22 at the same size if the load needs it.

Key specifications

Brand Kartell
Model K-Rad Kompact S524K
Radiator type Type 11 — single panel, single convector
Heat output
Output at ΔT50 1958 W (6682 BTU/h)
Output at ΔT60 2508 W (8558 BTU/h)
Size and weight
Dimensions (H × W × D) 500 × 2400 × 56 mm
Centre distance 445 mm
Wall to centre 40 or 55 mm
Weight 34.56 kg
Water content 5.76 l
Build and rating
Max working pressure 10 bar
Max working temperature 120 °C
Finish White enamel, RAL 9016
Standard EN 442
Warranty 10 years

Installation & compatibility

Fix no lower than 100 mm from the finished floor. Allow 35 mm from the wall to pipe centre for a manual valve, or 45 mm for a TRV. Kartell requires the system to be cleansed and dosed with inhibitor to BS 7593:2019 — skipping it invalidates the guarantee, which covers product replacement only. Leave the protective packaging on until the radiator is fixed and the tappings are cut.

Related & next steps

Need more output?
The Type 22 at the same 500 × 2400 mm gives 3826 W at ΔT50, in a 105 mm case.
View Type 22
Other sizes
Type 11 runs 300–900 mm high and up to 3000 mm wide, from 209 W to 2849 W at ΔT50.
