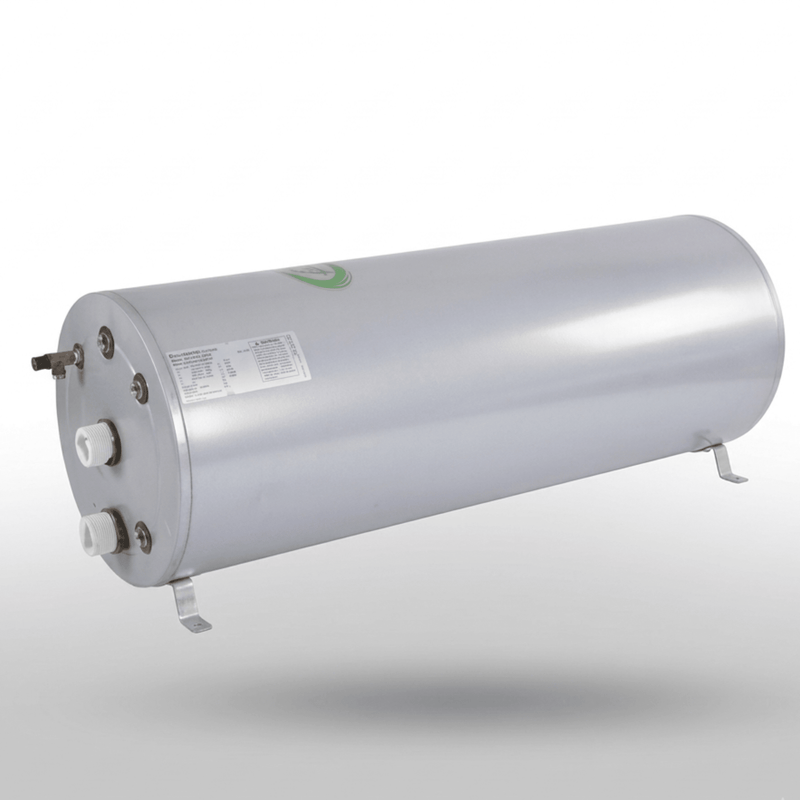

The Joule Cyclone Platinum 170L Indirect Horizontal Standard C Unvented Cylinder (TCIMHI-0170LFC) is a compact, space-saving horizontal indirect unvented hot water cylinder designed to provide reliable hot water for homes and apartments where vertical installation space is limited. With an actual capacity of 168 litres, it is suitable for systems heated through a primary boiler, heat pump or solar thermal loop.
Manufactured using LDX 2101 stainless steel with a coated mild-steel outer casing and dense PU foam insulation, the cylinder combines a durable construction with effective heat retention. Its single 316L stainless-steel coil provides a 20kW heat-transfer rating, while a 3kW immersion heater provision offers an additional heating option.
168L Actual Capacity
Horizontal Design
LDX 2101 Stainless Steel
20kW Coil
Cylinder Highlights
Actual Capacity
168L
Horizontal cylinder
Cylinder Material
LDX 2101
Stainless steel
Coil Rating
20kW
316L stainless-steel coil
Heat Loss
1.39 kWh/24h
Supplied product data
Indirect Horizontal Unvented Cylinder
The Joule Cyclone Platinum 170L Horizontal Standard C is an indirect unvented cylinder designed to work with a primary heating loop. The supplied product information identifies compatibility with primary heating from a central boiler, heat pump or solar thermal loop.
Its horizontal format makes it suitable for installations where a conventional vertical cylinder is difficult to accommodate. It can be considered for under-bench, cupboard or plant-room installations where the available space is better suited to a horizontal cylinder.
Stainless Steel Construction
The cylinder body is manufactured from LDX 2101 stainless steel, with a coated mild-steel outer casing. The supplied construction specification is designed around a durable stainless-steel cylinder with a protective outer casing.
Thermal insulation is provided by dense PU foam, with a supplied heat-loss figure of 1.39 kWh/24h. This supports heat retention during periods when hot water is stored in the cylinder.
316L Stainless-Steel Heat-Exchange Coil
A single 316L stainless-steel coil provides the cylinder's primary heat-exchange function. The coil has a rated output of 20kW and a surface area of 0.57m², providing the specified heat-transfer capacity for the indirect system.
Heat-Exchange Specification:
1 × 316L stainless-steel coil · 20kW rating · 0.57m² surface area · 3.5 bar maximum primary pressure.
Immersion Heater Provision
The Joule Cyclone Platinum 170L cylinder includes provision for one immersion heater, specified at 3kW @ 230V. This provides an additional heating provision alongside the cylinder's indirect primary coil.
Pressure & Operating Specifications
The supplied technical data specifies a maximum mains water pressure of 10 bar and an operating pressure of 7 bar. The coil has a listed maximum primary pressure of 3.5 bar, while the supplied safety valve temperature is 90°C.
Ideal Applications
- Small to medium residential homes.
- Flats and apartments with limited vertical installation space.
- Systems heated through a central boiler, heat pump or solar thermal primary loop.
- Under-bench, cupboard or plant-room installations where a horizontal cylinder is preferred.
- Renovation and retrofit projects requiring a compact indirect unvented cylinder.
- Installations prioritising efficient heat exchange and controlled standby heat loss.
Product Specifications
| Brand |
CYCLONE / Joule Cyclone Platinum |
| Model |
TCIMHI-0170LFC |
| Capacity |
167L rated / 168L actual |
| Product Group |
Horizontal |
| ERP Type |
Indirect Unvented |
| Cylinder Material |
LDX 2101 Stainless Steel |
| Outer Casing |
Coated Mild Steel |
| Thermal Insulation |
Dense PU Foam |
| Immersions |
1 |
| Immersion Specification |
3kW @ 230V |
| Heat Exchangers |
1 |
| Coil Material |
316L Stainless Steel |
| Coil Rating |
20kW |
| Coil Surface Area |
0.57m² |
| Coil Max Primary Pressure |
3.5 bar |
| Maximum Mains Water Pressure |
10 bar |
| Operating Pressure |
7 bar |
| Safety Valve Temperature |
90°C |
| Empty Weight |
36kg |
| Full Weight |
206kg |
| Heat Loss |
1.39 kWh/24h |
| Tested To |
BS EN 12897:2016 |
| Warranty |
1 year |
Technical Data Note:
The supplied source data lists coil resistance entries of 0.05 bar and 45 bar, along with foam thickness, operating temperature and other fields. These values have been retained in the technical specification only where directly relevant; their specific engineering meaning has not been inferred beyond the supplied data.
Frequently Asked Questions
What is the capacity of the Joule Cyclone Platinum 170L cylinder?
The cylinder has a 167L rated capacity and an actual capacity of 168L, according to the supplied product specifications.
Is this cylinder horizontal?
Yes. The TCIMHI-0170LFC is a horizontal indirect unvented cylinder, making it suitable for installations where vertical space is limited.
What is the cylinder made from?
The cylinder is manufactured from LDX 2101 stainless steel and has a coated mild-steel outer casing with dense PU foam insulation.
What type of coil does this cylinder have?
It has one 316L stainless-steel coil with a 20kW rating and a surface area of 0.57m².
Does the cylinder have an immersion heater provision?
Yes. The supplied specification lists one immersion heater with a rating of 3kW at 230V.
What is the warranty on the Joule Cyclone Platinum 170L?
The supplied product information specifies a 1-year warranty.
Compact Horizontal Hot Water Storage
The Joule Cyclone Platinum 170L Indirect Horizontal Standard C Unvented Cylinder combines a space-saving horizontal format with an LDX 2101 stainless-steel cylinder, 316L stainless-steel 20kW coil and 3kW immersion heater provision. With an actual capacity of 168L and a heat loss figure of 1.39 kWh/24h, it is designed for compatible indirect hot water systems where horizontal installation is required.
