Joule Cyclone Direct Unvented 300L Cylinder TCEMVD-0300NFC
Shipping time: 2–7 days
Please call us for precise delivery dates.
Description

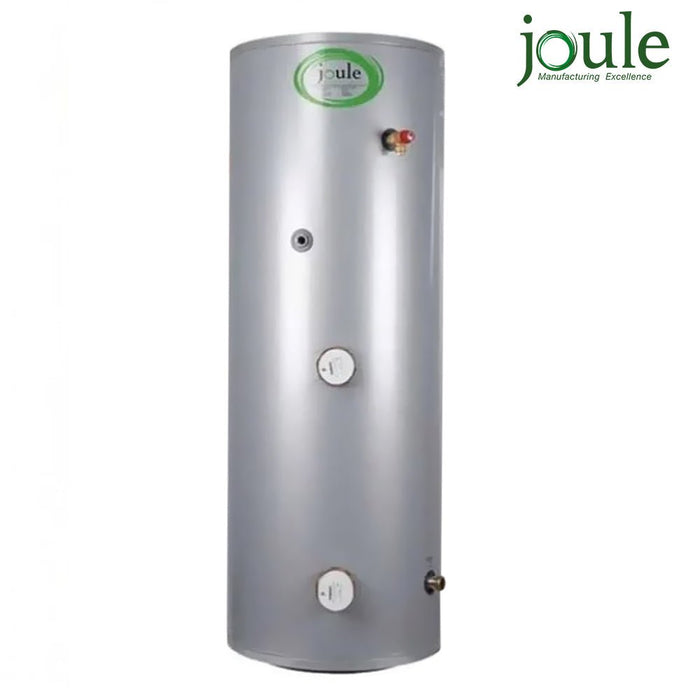

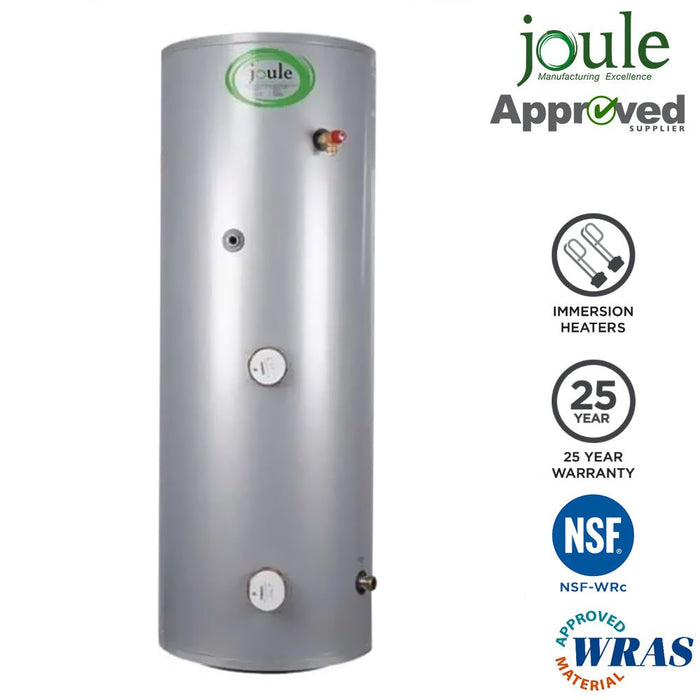

The Joule Cyclone Direct Unvented 300L Cylinder (TCEMVD-0300NFC) is a high-capacity, direct unvented hot water cylinder engineered to supply reliable mains-pressure hot water for large residential properties and light-commercial installations. Constructed from LDX 2101 stainless steel with a coated mild-steel outer casing and dense PU foam insulation, it provides excellent corrosion resistance, efficient heat retention and fast recovery. Designed for demanding hot-water loads, it meets British standards and includes a long 25-year warranty for peace of mind.
Key Features
- 294 L actual capacity (nominal 300 L) for large households or light-commercial use
- Direct unvented design compatible with mains-pressure systems
- Cylinder material: LDX 2101 stainless steel for durability and corrosion resistance
- Outer casing: coated mild steel for protection and a neat finish
- Dense PU foam insulation to minimise heat loss (2.21 kWh/24h)
- Two immersion heaters; immersion spec: 3 kW @ 230 V for rapid recovery
- Maximum mains water pressure: 10 bar; operating pressure: 7 bar
- Safety temperature up to 90 °C
- Tested to BS EN 12897:2016 standard
- 25-year warranty
Ideal Use Cases
- Large residential homes with multiple bathrooms or high simultaneous hot-water demand
- Small commercial properties (guest houses, offices, staff facilities)
- New-builds or renovation projects requiring a high-capacity mains-pressure cylinder
- Installations prioritising low heat loss, durability and long service life
- Systems specified to meet British standards (BS EN 12897:2016)
Product Specifications
| Specification | Value |
|---|---|
| Model | TCEMVD-0300NFC |
| Brand | CYCLONE |
| Capacity (L) | 300 (rated) |
| Actual capacity (Ltr) | 294 |
| Product Group Code | DIRECT |
| Item Category Code | Stainless |
| ERP Type | DirectUnvented |
| Cylinder material | LDX 2101 (stainless steel) |
| Outer casing | Coated mild steel |
| Thermal insulation | Dense PU foam |
| Foam thickness (mm) | 0 |
| No immersions | 2 |
| Immersion spec | 3 kW @ 230 V |
| Max mains water pressure (bar) | 10 |
| Operating pressure (t & p) (bar) | 7 |
| Safety temp (°C) | 90 |
| Unit weight empty (kg) | 53 |
| Unit weight full (kg) | 353 |
| Heat loss (kWh/24h) | 2.21 |
| Tested to standard | BS EN 12897:2016 |
| Warranty terms (years) | 25Y |
