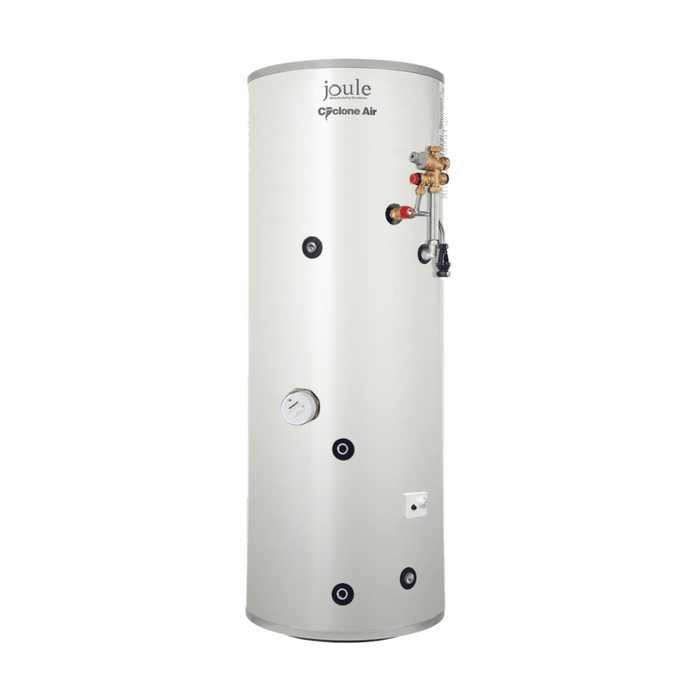

The Joule Cyclone Air 200L Indirect Standard Unvented Hot Water Cylinder (TCEMVA-0200LFC) is designed for dependable domestic hot water storage in indirect heating systems. Part of the Joule Cyclone Air range, it features an internal expansion vessel for a neat, all-in-one cylinder installation. The cylinder combines an LDX 2101 stainless steel vessel, 316L stainless steel heating coil, coated mild steel outer casing and a 3kW electric immersion backup for flexible hot water performance.
188 L Actual Capacity
Indirect Unvented
Internal Expansion Vessel
Joule Cyclone Air
Capacity
188 L actual capacity
Heating Coil
21 kW, 316L stainless steel
Heat Loss
1.944 kWh/24h
Backup Immersion
1 × 3kW @ 230V
Applications & suitability
Indirect Heating Systems
Designed for suitable indirect heating systems using the integrated 316L stainless steel coil.
Domestic Hot Water
The 188 L actual capacity provides domestic hot water storage for residential applications.
All-in-One Installation
The internal expansion vessel provides a neat cylinder installation without the need for a separate external expansion vessel.
Flexible Hot Water Heating
A 3kW electric immersion heater provides additional heating capability when required.
Key specifications
| Model Name/Number |
TCEMVA-0200LFC |
| Product Type |
Hot Water Cylinder (Indirect Unvented) |
| Range |
Joule Cyclone Air |
| Actual Capacity |
188 L |
| Height |
1490 mm |
| Diameter |
540 mm |
| Unit Weight Empty |
46 kg |
| Unit Weight Full |
243 kg |
| Cylinder Material |
LDX 2101 stainless steel |
| Outer Casing |
Coated mild steel |
| No. of Immersions |
1 |
| Immersion Specification |
3kW @ 230V |
| Coil Material |
316L stainless steel |
| Foam Thickness |
0 |
| Max Mains Water Pressure |
10 bar |
| Operating Temperature |
60 °C |
| Operating Pressure |
7 bar |
| Safety Temperature Valve |
95 °C |
| No. of Heat Exchangers |
1 |
| Heat Loss |
1.944 kWh/24h |
| Coil Rating |
21 kW |
| Coil Surface Area |
0.67 m² |
| Coil Max Primary Pressure |
3.5 bar |
| Coil Resistance |
0.07 bar |
Installation & compatibility
The Joule Cyclone Air 200L Indirect Unvented Cylinder is compatible with suitable indirect heating systems using its internal coil-based connection. The internal expansion vessel provides an integrated cylinder arrangement. Due to the specified pressure and temperature ratings, professional installation is required. Always ensure the installation is suitable for the cylinder's operating parameters before commissioning.
Design & performance benefits
Internal Expansion Vessel
The integrated expansion vessel creates a neat, all-in-one cylinder installation.
LDX 2101 Stainless Steel
The cylinder uses LDX 2101 stainless steel construction with a coated mild steel outer casing.
316L Stainless Steel Coil
The 21kW internal heating coil provides indirect heat exchange with a 0.67 m² surface area.
Insulated Construction
The insulated cylinder has a specified heat loss of 1.944 kWh/24h.
Additional installation features
All-in-One Cylinder Design
The internal expansion vessel helps maintain a compact and integrated installation arrangement.
Electric Backup
One 3kW immersion heater rated at 230V provides additional electric heating capability.
Pressure & Temperature Ratings
Specified for 10 bar maximum mains water pressure, 7 bar operating pressure, 60 °C operating temperature and 95 °C safety temperature valve setting.
Ideal for
The Joule Cyclone Air 200L Indirect Unvented Hot Water Cylinder is ideal for domestic hot water installations requiring an indirect coil-heated cylinder with an internal expansion vessel. Its 188 L actual capacity, 21 kW 316L stainless steel coil, 3kW immersion backup and integrated expansion arrangement make it suitable for dependable domestic hot water storage where a neat all-in-one cylinder installation is preferred.
