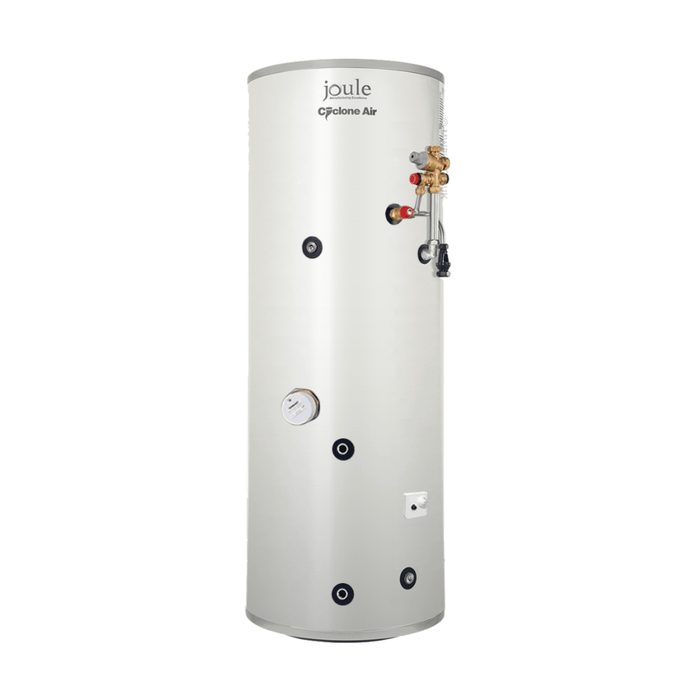

Joule Cyclone Air 170L Indirect Standard Unvented Cylinder TCEMVA-0170LFB
Shipping time: 2–7 days
Please call us for precise delivery dates.
Get Free Delivery on Orders Over £60
For more details, please refer to our Shipping Information.
Description

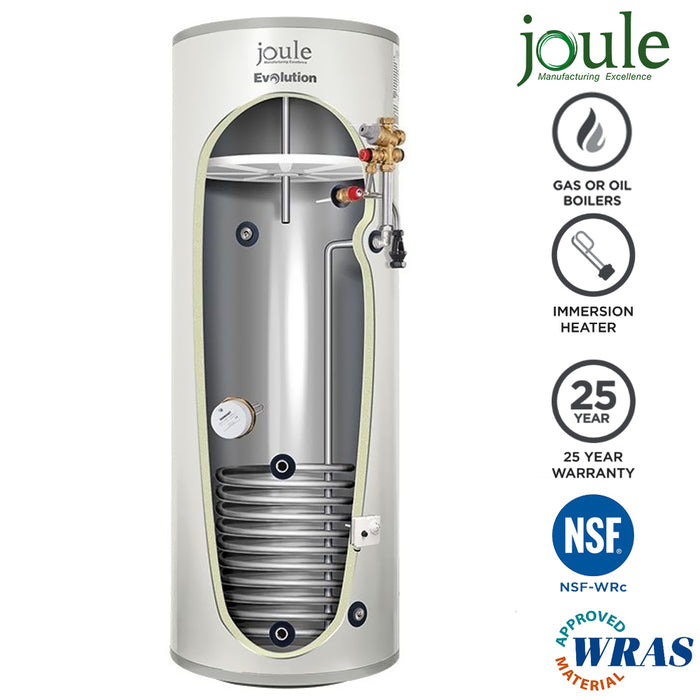

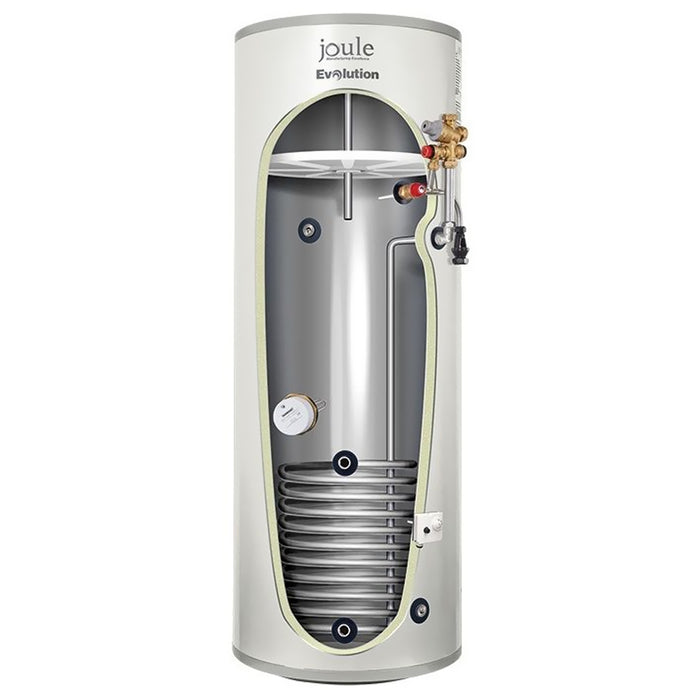

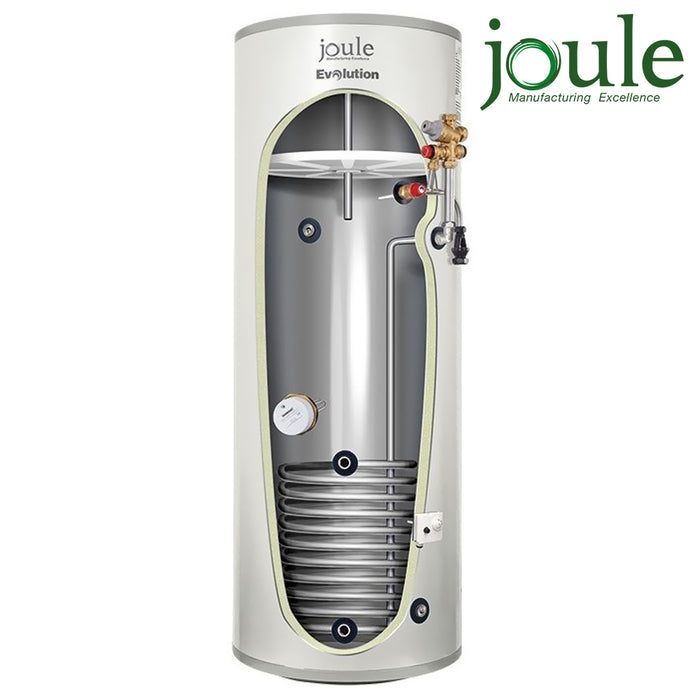

The Joule Cyclone Air range of cylinders features an internal expansion vessel (similar to the Megaflo range from Heatrae Sadia). This provides a neat, all-in-one cylinder installation that’s very popular with both customers and installers. The cylinder is manufactured with strong, precise construction for dependable domestic hot water storage.
This is an indirect standard unvented cylinder with internal heating via a stainless steel coil and electric immersion backup. It uses a 316L stainless steel coil to provide indirect heating from the boiler, with an immersion heater rated at 3kW @ 230V for added hot water support. The unit is built with an LDX 2101 cylinder and a coated mild steel outer casing, with insulation designed to help reduce heat loss.
| Specification | Value |
|---|---|
| Model name/number | TCEMVA-0170LFB |
| Product Type | Hot Water Cylinder (Indirect Unvented) |
| Range | Joule Cyclone Air |
| Actual Capacity (Ltr) | 168 L |
| Height | 1310 mm |
| Diameter | 540 mm |
| Unit Weight Empty | 43 kg |
| Unit Weight Full | 210 kg |
| Cylinder Material | LDX 2101 |
| Outer Casing | Coated Mild Steel |
| No Immersions | 1 |
| Immersion Spec | 3kW @ 230V |
| Coil Material | 316L Stainless Steel |
| Foam Thickness | 0 |
| Max Mains Water Pressure | 10 bar |
| Operating Temp | 60 °C |
| Operating Pressure | 7 bar |
| Safety Temp Valve | 95 °C |
| No Heat Exchangers | 1 |

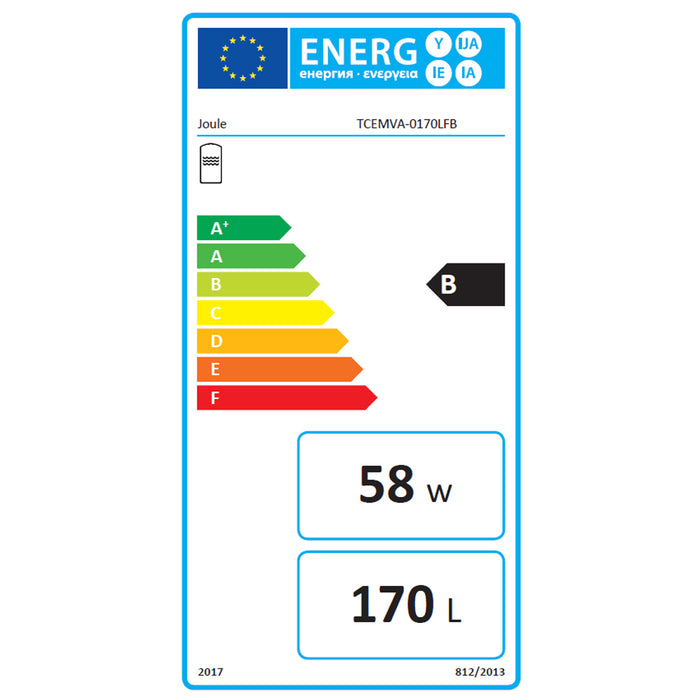

| Heat Loss | 1.392 |
| Coil 1 Rating (kW) | 20 kW |
| Coil 1 Surface Area (m²) | 0.58 m² |
| Coil 1 Max Prim Pressure | 3.5 bar |
| Coil 1 Resistance | 0.05 bar |
