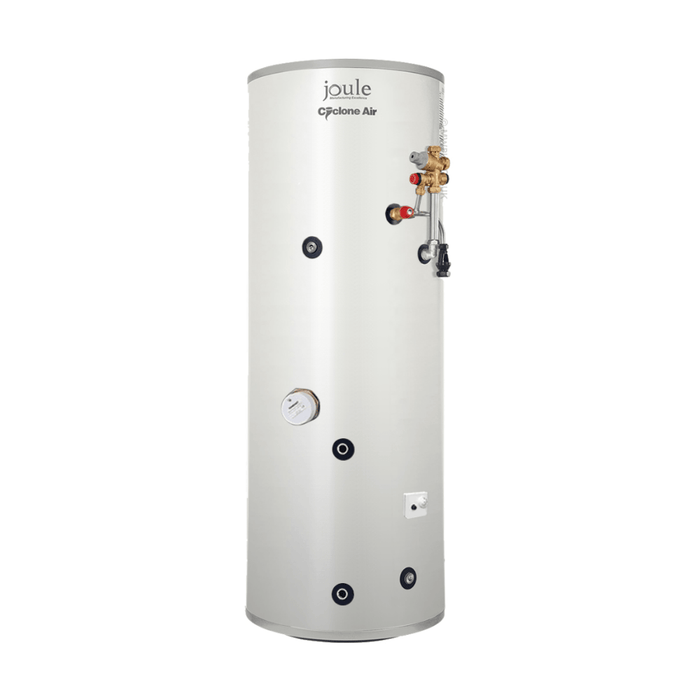

Joule Cyclone Air 150L Indirect Standard Unvented Cylinder TCEMVA-0150LFB
Shipping time: 2–7 days
Please call us for precise delivery dates.
Get Free Delivery on Orders Over £60
For more details, please refer to our Shipping Information.
Description
The Joule Cyclone Air range of cylinders features an internal expansion vessel (similar to the Megaflo range from Heatrae Sadia). This is very popular with customers and installers because it provides for a neat, all-in-one cylinder installation. The cylinder is built for reliable domestic hot water storage with indirect heating and electric immersion backup.
This model is an indirect standard unvented cylinder with internal heating via a stainless steel coil (316L) heated by the boiler, and a 3kW @ 230V immersion heater (1 immersion) for additional hot water capacity when required. It has an LDX 2101 stainless steel cylinder with a coated mild steel outer casing, helping provide durability and efficient insulation to reduce heat loss.
| Specification | Value |
|---|---|
| Model name/number | TCEMVA-0150LFB |
| Product Type | Hot Water Cylinder (Indirect Unvented) |
| Range | Joule Cyclone Air |
| Actual Capacity (Ltr) | 147 L |

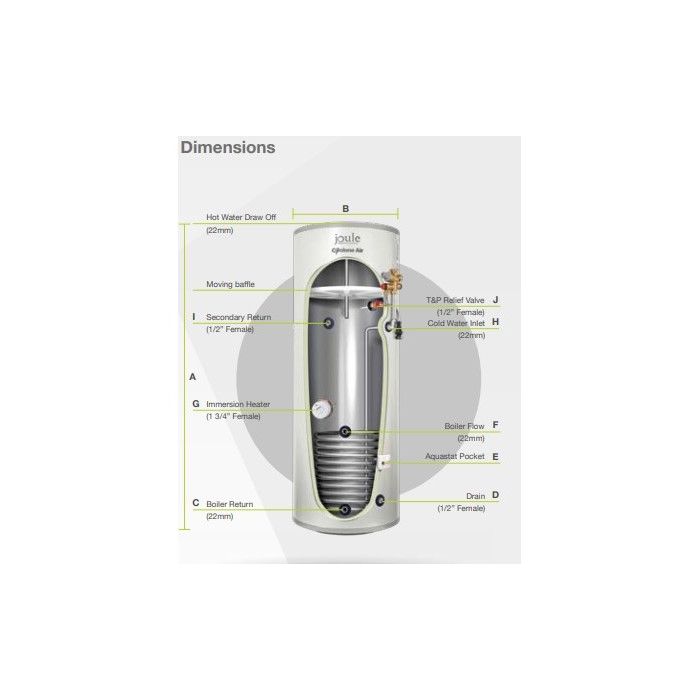

| Height (mm) | 1190 mm |
| Diameter (mm) | 540 mm |
| Unit Weight Empty (kg) | 29 kg |
| Unit Weight Full (kg) | 187 kg |
| Cylinder Material | LDX 2101 |
| Outer Casing | Coated Mild Steel |
| No Immersions | 1 |
| Coil Material | 316L Stainless Steel |
| Immersion Spec | 3kW @ 230V |
| Foam Thickness | 0 |
| Max Mains Water Pressure (Bar) | 10 bar |
| Operating Temp (C) | 60 °C |
| Operating Pressure (Bar) | 7 bar |
| Safety Temp Valve (C) | 95 °C |
| No Heat Exchangers | 1 |
| Heat Loss | 1.32 |
| Coil 1 Rating (kW) | 20 kW |
| Coil 1 Surface Area (m²) | 0.58 m² |
| Coil 1 Max Prim Pressure (Bar) | 3.5 bar |
| Coil 1 Resistance (Bar) | 0.05 bar |
