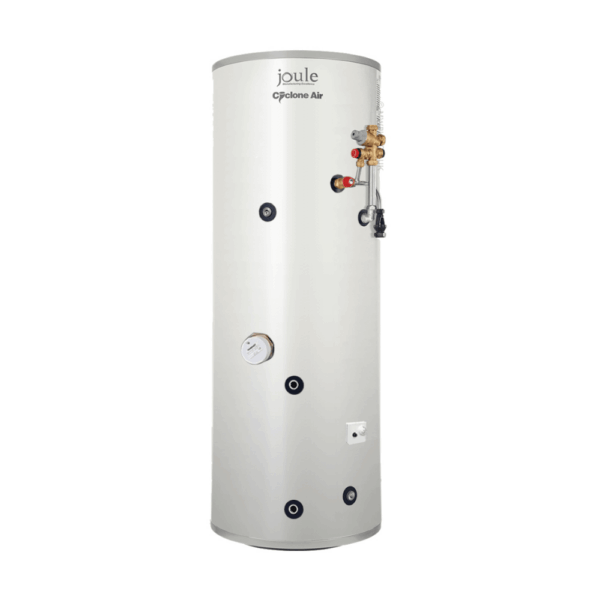

Joule Cyclone Air 125L Indirect Standard Unvented Cylinder TCEMVA-0125LFB
Shipping time: 2–7 days
Please call us for precise delivery dates.
Get Free Delivery on Orders Over £60
For more details, please refer to our Shipping Information.
Description
The Joule Cyclone Air range of cylinders features an internal expansion vessel (similar to the Megaflo range from Heatrae Sadia). This provides a neat, all-in-one cylinder installation that’s very popular with customers and installers. The cylinder is manufactured with quality construction and precision for dependable domestic hot water storage.

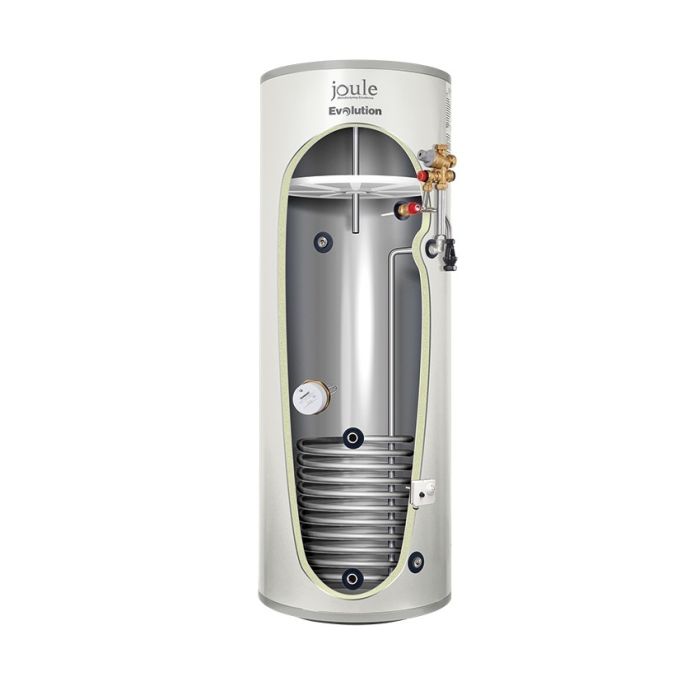

This model is an indirect standard unvented cylinder that heats water via an internal stainless steel coil (316L) connected to the boiler, with electric immersion support for additional flexibility. It has a 3kW @ 230V immersion heater (1 immersion), an LDX 2101 stainless steel cylinder body, and a coated mild steel outer casing designed to help protect the unit and support efficient thermal performance.
| Specification | Value |
|---|---|
| Model name/number | TCEMVA-0125LFB |
| Product Type | Hot Water Cylinder (Indirect Unvented) |
| Range | Joule Cyclone Air |
| Actual Capacity (Ltr) | 124 L |

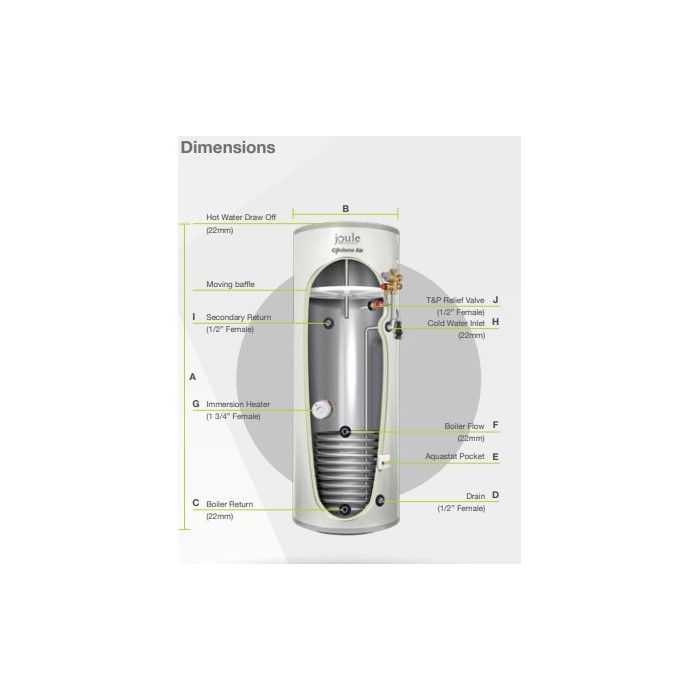

| Height (mm) | 1030 mm |
| Diameter (mm) | 540 mm |
| Unit Weight Empty (kg) | 35 kg |
| Unit Weight Full (kg) | 158 kg |
| Cylinder Material | LDX 2101 |
| Outer Casing | Coated Mild Steel |
| No Immersions | 1 |
| Coil Material | 316L Stainless Steel |
| Immersion Spec | 3kW @ 230V |
| Foam Thickness | 0 |
| Max Mains Water Pressure (Bar) | 10 bar |
| Operating Temp (C) | 60 °C |
| Operating Pressure (Bar) | 7 bar |
| Safety Temp Valve (C) | 95 °C |
| No Heat Exchangers | 1 |
| Heat Loss | 1.248 |
| Coil 1 Rating (kW) | 20 kW |
| Coil 1 Surface Area (m²) | 0.58 m² |
| Coil 1 Max Prim Pressure (Bar) | 3.5 bar |
| Coil 1 Resistance (Bar) | 0.05 bar |
