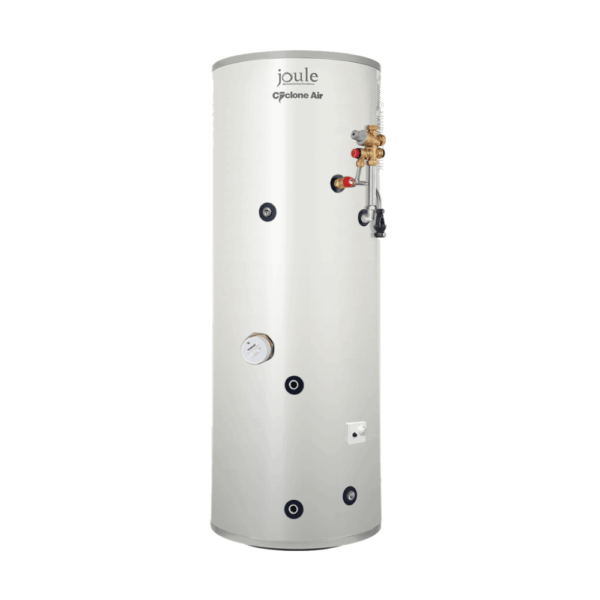

Joule Cyclone Air 100L Indirect Standard Unvented Cylinder TCEMVA-0100LFB
Shipping time: 2–7 days
Please call us for precise delivery dates.
Get Free Delivery on Orders Over £60
For more details, please refer to our Shipping Information.
Description
The Joule Cyclone Air range of cylinders features an internal expansion vessel (similar to the Megaflo range from Heatrae Sadia). This provides a neat, all-in-one cylinder installation that’s very popular with customers and installers. The unit is manufactured with quality and precision for reliable domestic hot water storage.
This model is an indirect standard unvented cylinder with heating via an internal stainless steel coil (316L) connected to the boiler, and electric immersion backup for added hot water flexibility. It has a 3kW @ 230V immersion heater (1 immersion). The cylinder uses an LDX 2101 material with a coated mild steel outer casing to help protect the unit and reduce heat loss.
| Specification | Value |
|---|---|
| Model name/number | TCEMVA-0100LFB |
| Product Type | Hot Water Cylinder (Indirect Unvented) |
| Range | Joule Cyclone Air |
| Actual Capacity (Ltr) | 95 L |

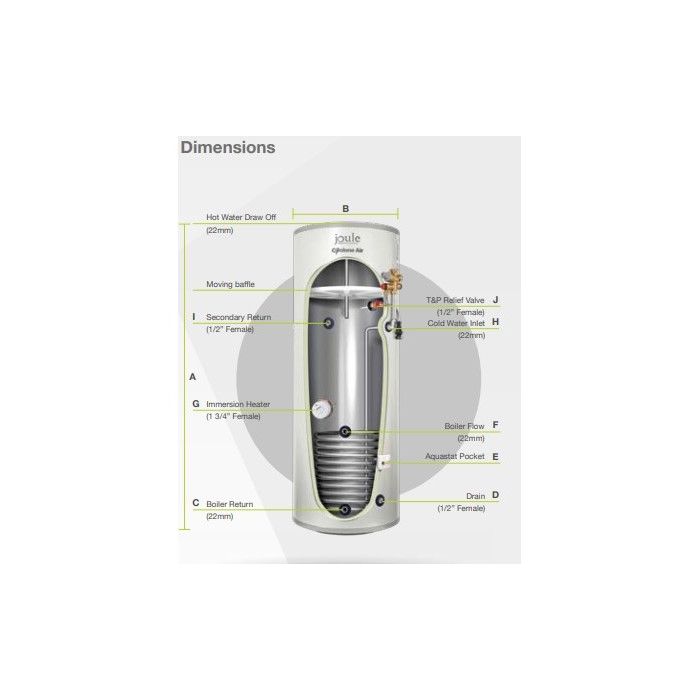

| Height (mm) | 950 mm |
| Diameter (mm) | 540 mm |
| Unit Weight Empty (kg) | 32 kg |
| Unit Weight Full (kg) | 131 kg |
| Cylinder Material | LDX 2101 |
| Outer Casing | Coated Mild Steel |
| No Immersions | 1 |
| Coil Material | 316L Stainless Steel |
| Immersion Spec | 3kW @ 230V |
| Foam Thickness | 0 |
| Max Mains Water Pressure (Bar) | 10 bar |
| Operating Temp (C) | 60 °C |
| Operating Pressure (Bar) | 7 bar |
| Safety Temp Valve (C) | 95 °C |
| No Heat Exchangers | 1 |
| Heat Loss | 1.056 |
| Coil 1 Rating (kW) | 20 kW |
| Coil 1 Surface Area (m²) | 0.58 m² |
| Coil 1 Max Prim Pressure (Bar) | 3.5 bar |
| Coil 1 Resistance (Bar) | 0.05 bar |
