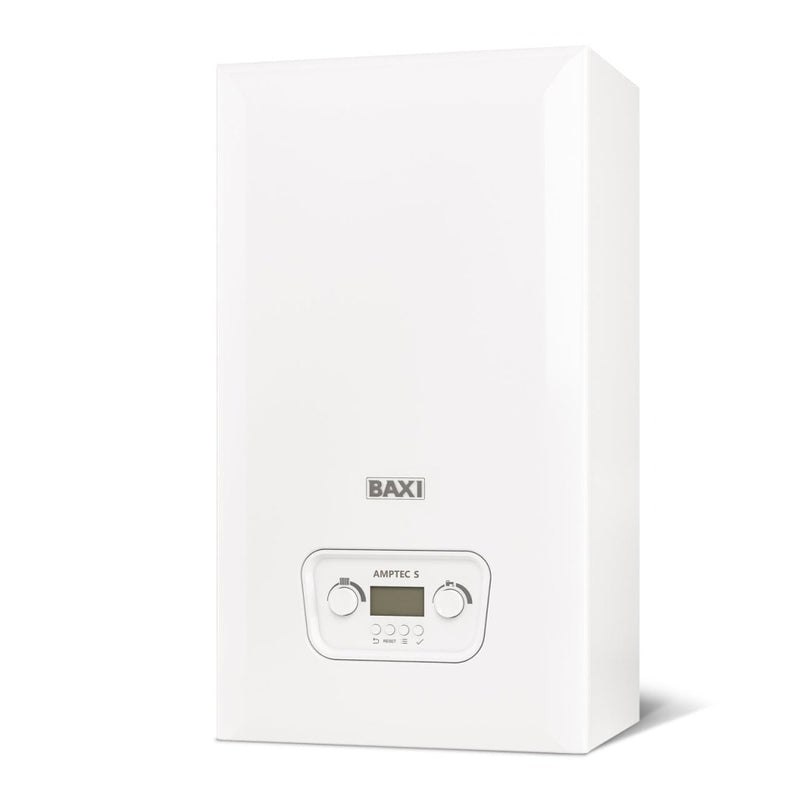

The Baxi Amptec S12 is a 12 kW electric system boiler for wet central heating — now sold under the Baxi brand, previously Heatrae Sadia. The largest single-phase model in the Amptec S range, it needs no gas supply and no flue, runs both radiators and underfloor heating, and carries its circulation pump, expansion vessel and HMI display inside one compact, UK-built unit that fits a 290 mm deep cupboard.
Applications & suitability
Sealed wet central heating in homes without a gas supply. Runs radiators or underfloor circuits from 30–80 °C, and with pump, expansion vessel and controls built in it drops into a 290 mm deep cupboard with no flue to route.
A new electric heating installation or a like-for-like electric boiler refurbishment — larger flats and houses off the gas grid, social housing and landlord upgrades. Baxi state it can also be used in conjunction with a solar PV battery.
Certified OpenTherm, so it pairs with OpenTherm controls including the Baxi uSense 2 for best efficiency. As a system boiler it works with a separate hot water cylinder, and it joins Baxi’s existing Amptec and Electromax electric range.
Not a combi — stored hot water needs a separate cylinder. This is the top of the single-phase range: if the heat loss calculation comes out above 12 kW, you need the three-phase S14 or S18 and a property with a three-phase supply.
Key specifications
| General | |
| Brand | Baxi |
| Model | Amptec S12 |
| Boiler type | Electric system boiler |
| Output (central heating) | 12 kW |
| Power supply | Single phase |
| Performance | |
| Flow temperature (max) | 80 °C (adjustable from 30 °C) |
| Modulation ratio | Up to 9:1 |
| Controls compatibility | Certified OpenTherm (incl. Baxi uSense 2) |
| Dimensions & weight | |
| Packaged dimensions (H × W × D) | 889 × 444 × 350 mm |
| Lift weight (dry) | 21.5 kg |
| Installed weight (filled) | 23 kg |
| Packaged weight | 24.7 kg |
| Warranty & provenance | |
| Warranty | 2 years |
| Country of manufacture | United Kingdom |
Installation & compatibility
No gas and no flue, so no Gas Safe engineer is needed. The fixed electrical connection must be made by a qualified electrician — in England and Wales this work falls under Part P of the Building Regulations. A filling loop and rear pipework kit are available separately.
Related & next steps
For filling and pressurising the sealed system at install.
View filling loopRoutes pipework behind the boiler for a tidier first fix.
View pipework kitAlso available in 4 kW, 6 kW, 8 kW, and three-phase 14 kW and 18 kW models.
Ideal For
Mid-size to larger homes off the gas grid that want the most output available on a standard single-phase supply, from a compact, flueless unit — with next-day national delivery or click & collect from our Reading trade counter.
