FlexiGas 22mm Double-Sleeved Flexible Gas Pipe (DS-22) – 75m Spool is a pre-sleeved, twin-layer CSST gas pipe supplied on a 75-metre spool. Its pipe-in-pipe construction is designed to provide an integrated sleeve, while the flexible stainless-steel tube can be routed in continuous runs by a qualified installer using the current manufacturer instructions.
The supplied product information lists BSI Kitemark KM 598726, EN 15266 and a maximum operating pressure of 0.5 bar. FlexiGas currently says its DS range is in transition and directs installers to its technical team to confirm availability, documentation and the appropriate product for a job. Confirm these details before specifying or using the pipe; do not treat older product descriptions as current installation guidance.
22mm / DN22
75m Spool
Double-Sleeved CSST
Silicone Tape Included
At a Glance
Pipe Length
75 Metres
Spool format
Maximum Pressure
0.5 bar
As listed for BS/EN 15266
Warranty
1 Year
Subject to manufacturer’s terms

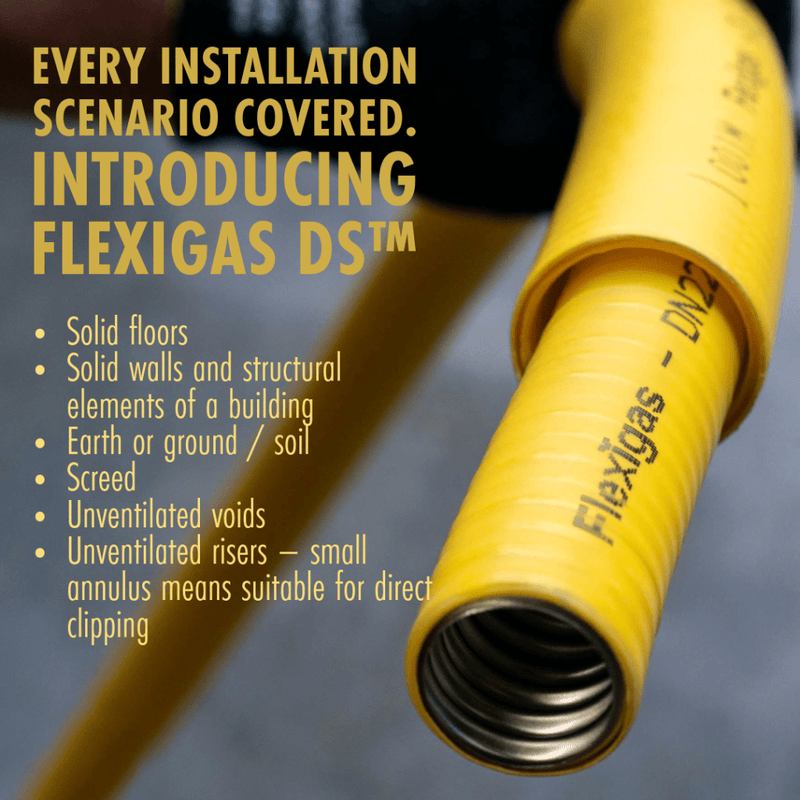

Applications & Suitability
The DS-22 is aimed at professional installers working with compatible 22mm gas pipework. Its pre-sleeved construction is intended for routes where a sleeve is required, but suitability depends on the specific installation, applicable requirements and current manufacturer guidance. Contact FlexiGas technical support to confirm the correct product and documentation for the planned route.
Important DS Guidance:
FlexiGas states that the DS range is in transition. Check current availability, technical documentation and suitability with its technical team before specifying. Gas work must be carried out by a suitably qualified Gas Safe registered engineer.
Key Features

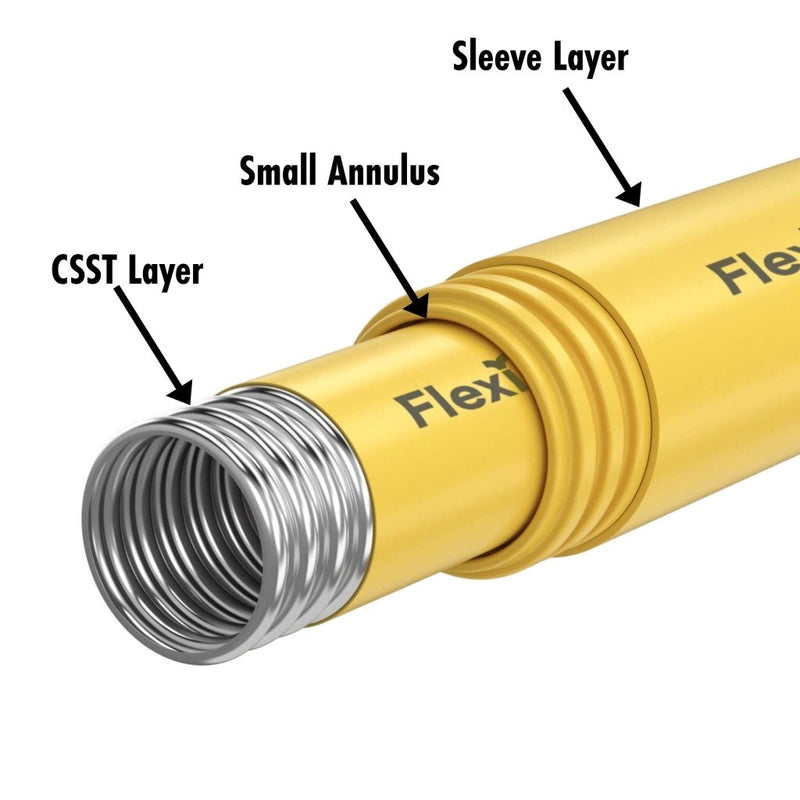

Pipe-in-Pipe Design
The supplied description specifies an inner corrugated stainless-steel gas pipe with a yellow PE cover inside an outer corrugated sleeve in a slidable configuration.
Flexible Routing
The CSST can be bent by hand in accordance with the current installation instructions, helping installers plan continuous runs with fewer joints.
Compatible FGLink™ Fittings
The supplied information states compatibility with the FlexiGas FGLink™ fitting range. Confirm fitting selection and system compatibility using current manufacturer documentation.
Practical Spool Format
The 75-metre spool is intended for contractor use across multiple installations. Metre markings and a high-visibility yellow jacket are listed in the supplied product information.
What’s Included
75m FlexiGas DS-22 Pipe
One 22mm double-sleeved CSST spool.
Silicone Tape
One roll is included. Use only as directed by the current manufacturer instructions.
Key Specifications
| Product |
FlexiGas 22mm Double Sleeved Flexible Gas Pipe (DS-22) – 75m Spool |
| Manufacturer / MPN |
FlexiGas™ / DS-22-75 |
| Pipe Size |
DN22 (22mm), double sleeved |
| Length |
75 metres |
| CSST Outer / Internal Diameter |
25.6mm / 21.4mm |
| Maximum Diameter Including Sleeve |
35mm |
| Tubing Material |
1.4404 / 1.4541 stainless steel (BS/EN 10088), as supplied |
| Maximum Operating Pressure |
0.5 bar (BS/EN 15266), as supplied |
| Certification Listed |
BSI Kitemark KM 598726; EN 15266 |
| Fire Performance Listed |
EN 1775 Annex A & B passed; jacket B-s1 d0, UV resistant, as supplied |
| Colour |
Yellow |
| Warranty |
1 year, subject to the manufacturer’s terms and conditions |
Who Is This Spool For?
The 75-metre spool is intended for contractors and Gas Safe registered engineers undertaking repeated, compatible 22mm gas-pipework installations. The supplied information identifies the FlexiGas spool roller, DS end caps and FGLink™ fittings as associated products. Check current DS availability, compatibility and installation requirements with FlexiGas before ordering or specifying.
Installation & Use
1
Confirm current DS guidance: Ask FlexiGas technical support to confirm availability, documentation and suitability for the job.
2
Use compatible system components: Confirm the correct fittings and accessories using the current manufacturer guidance; do not assume fittings from another CSST system are compatible.
3
Use a qualified gas engineer: Installation, connections and testing must follow current instructions and applicable requirements and be carried out by a suitably qualified Gas Safe registered engineer.
Frequently Asked Questions
What is included with the 75m spool?
The supplied product information lists one 75m 22mm double-sleeved DS-22 spool and one roll of silicone tape.
What is the maximum operating pressure?
The supplied specification lists a maximum operating pressure of 0.5 bar.
Does the DS pipe suit every installation route?
Do not assume it is suitable for every route. FlexiGas says the DS range is in transition; confirm current availability, documentation and route suitability with its technical team before specifying.
Which fittings should be used?
The supplied information specifies compatibility with the FlexiGas FGLink™ range. Confirm the correct fittings and current system guidance with the manufacturer.
Who should install this pipe?
Gas work should be completed by a suitably qualified Gas Safe registered engineer, following current manufacturer instructions and applicable requirements.
A 75m Double-Sleeved CSST Spool
The FlexiGas DS-22-75 combines 22mm flexible CSST with a double-sleeved design in a 75-metre spool format, with a roll of silicone tape listed as included. Since the DS range is currently described by the manufacturer as being in transition, confirm availability, suitability and the latest technical guidance before specifying it for a project.
