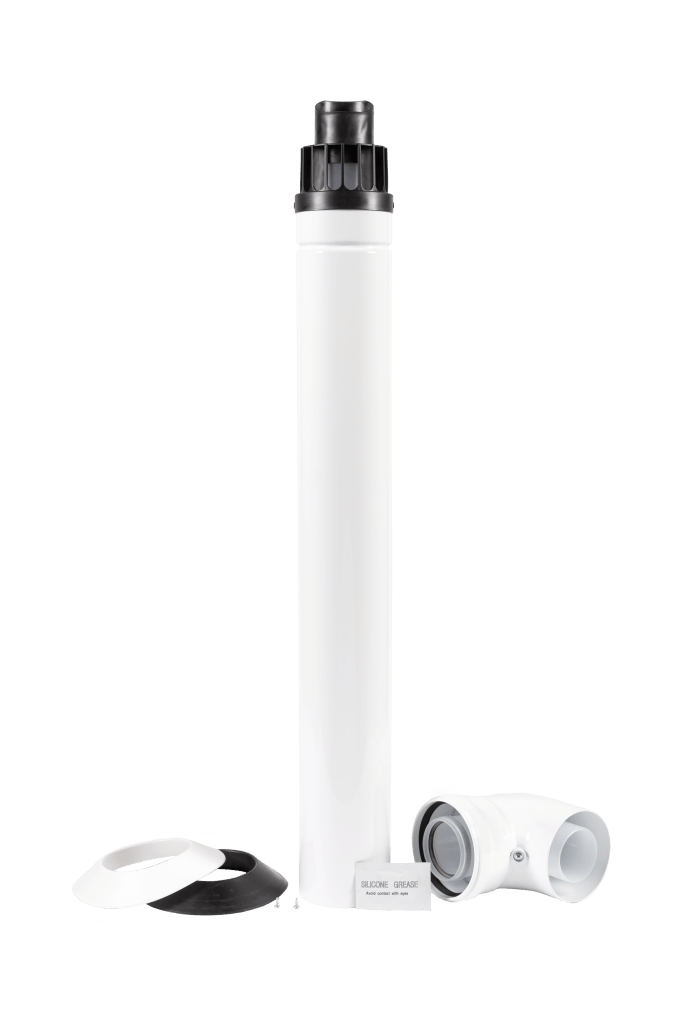

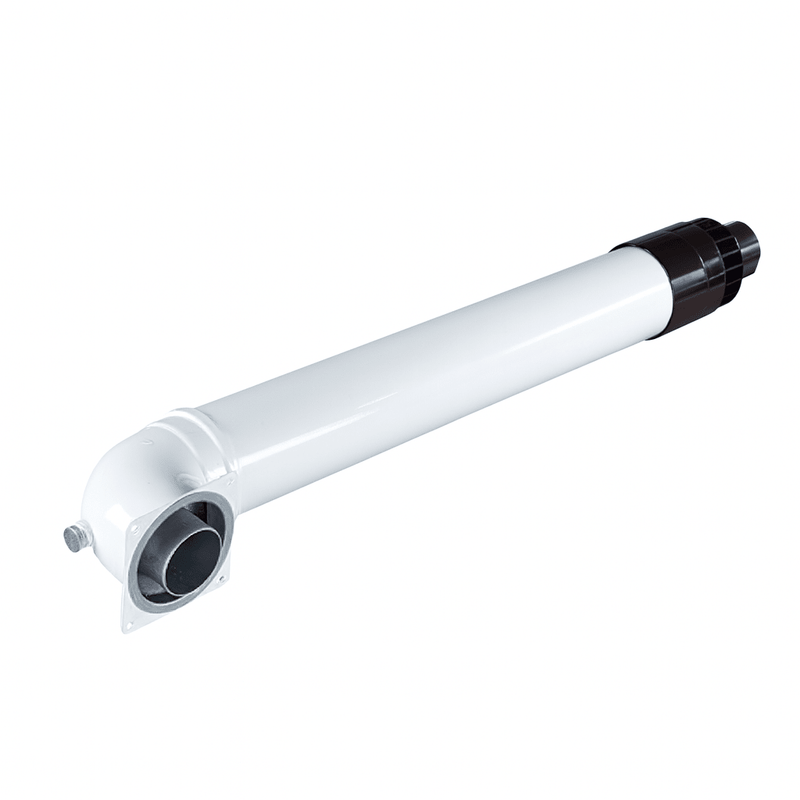

The Baxi Multifit 60/100 Horizontal Flue with Low Profile Elbow (stock code 7222019) is a complete concentric flue kit designed for use with compatible Baxi, Main and Potterton boilers. This kit provides a safe and compact horizontal flue solution, featuring a low profile elbow to minimise external projection from the wall.
Product Application
Suitable for use with Baxi, Main and Potterton boilers that use the 60/100 concentric flue system, this kit allows safe discharge of combustion gases and intake of air supply through a horizontal wall exit. The low profile elbow makes it ideal for installations where space and aesthetics are important considerations.
Product Specifications
| Attribute |
Value |
| Brand |
Baxi |
| Range / Family |
Multifit 60/100 Flue System |
| Product Type |
Horizontal flue kit with low profile elbow |
| MPN |
7222019 |
| Size / Model |
60/100 concentric (60 mm inner / 100 mm outer) |
| Dimensions |
Main flue length approx. 685 mm (excluding elbow) |
| Material / Finish |
Polymer composite / aluminium (flue system grade) |
| Connection / Compatibility |
Compatible with Baxi, Main and Potterton boilers using the Multifit 60/100 flue system |
| Pack Qty |
1 kit (flue, low profile elbow, seals and fixings) |
| Warranty |
|
| Compliance / Certifications |
Meets Gas Safety (Installation & Use) Regulations and BS 5440-1 (installer must verify) |
| Country of Manufacture |
|
| EAN |
5033313028220 |
Key Features
- Manufacturer stock code 7222019, EAN 5033313028220
- Approved for use with Baxi, Main and Potterton boilers
- Low profile elbow reduces projection from the external wall

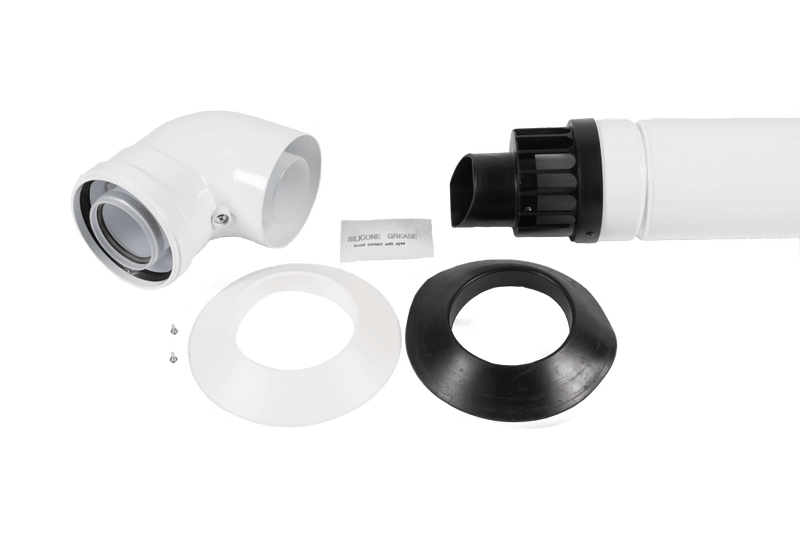

- Supplied complete with seals, elbow and fixings
- Compatible with 60/100 concentric flue systems
- Main flue pipe length approx. 685 mm
- Can be extended or adapted with approved Multifit flue extensions and bends
The Baxi Multifit 60/100 Horizontal Flue with Low Profile Elbow is a versatile kit approved for Baxi, Main and Potterton boilers, delivering a neat and efficient wall termination. Order online from GetPlumb UK for fast, reliable delivery and expert support.
