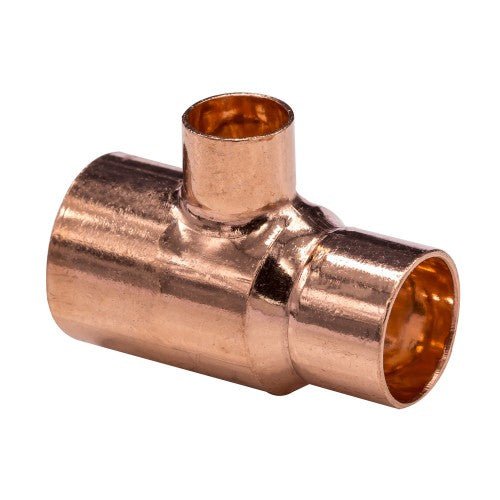

The 22mm × 15mm × 15mm End Feed Reducing Tee connects 22mm and 15mm in line (the run) with a 15mm branch at 90°. A reduced end-and-branch tee — off the 22mm inlet, one run end steps down to 15mm and the branch is 15mm too. Soldered capillary joints on all three ends. Manufactured to BS EN 1254-1 and fits copper tube to BS EN 1057.

This is a reduced end-and-branch tee — a run end (15mm) and the branch (15mm) are both reduced from the 22mm end.

Also known as: reducing tee, end and branch reduced tee, double reducing tee, unequal tee, 22x15x15 tee, endfeed reducing tee.

• Manufactured to BS EN 1254-1 for capillary (solder) fittings
• Reduced end-and-branch tee — 22mm × 15mm × 15mm
• Fits copper tube to BS EN 1057
• WRAS approved
• Solder and flux required — not supplied
• Sold individually — buy exactly what the job needs
• Suitable for hot and cold water and heating services

End feed means a capillary joint: clean the tube and fitting, apply flux, heat evenly and feed lead-free solder to the mouth of the fitting until a ring forms. See our guide: How to solder end feed fittings.

Also in this range: equal tees, couplers and the full end feed range. Ordering for a whole job? Use the bulk fittings matrix.
