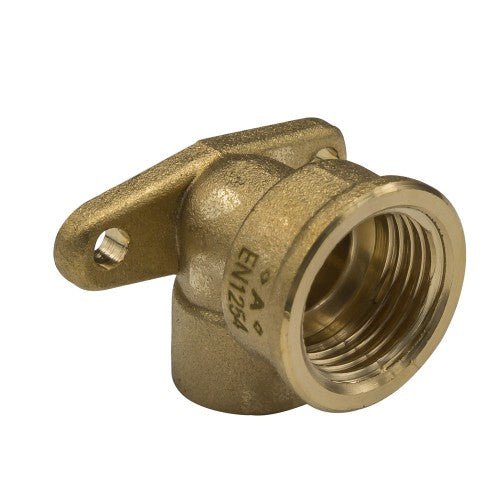

The 15mm × ½" End Feed Wallplate Elbow turns 15mm copper through 90° onto a ½" BSP female thread, with a backplate that screws to the wall or joinery. The fixing for outside taps, bib taps and shower drops where the fitting needs solid mechanical support. Soldered capillary joint on the copper end; female parallel thread in the plate. Manufactured to BS EN 1254 and fits copper tube to BS EN 1057.

Also known as: wallplate elbow, back plate elbow, wall plate elbow, bib tap wall plate, WP elbow, tap backplate.

• Manufactured to BS EN 1254 for capillary (solder) fittings
• Wallplate elbow — 15mm copper × ½" BSP female thread, 90°, screw-fixing backplate
• Fits copper tube to BS EN 1057
• WRAS approved
• Solder and flux required — not supplied; PTFE tape or jointing compound for the threaded joint
• Sold individually — buy exactly what the job needs
• Suitable for hot and cold water and heating services

End feed means a capillary joint: clean the tube and fitting, apply flux, heat evenly and feed lead-free solder to the mouth of the fitting until a ring forms. See our guide: How to solder end feed fittings.

Also in this range: couplers, elbows and the full end feed range. Ordering for a whole job? Use the bulk fittings matrix.
