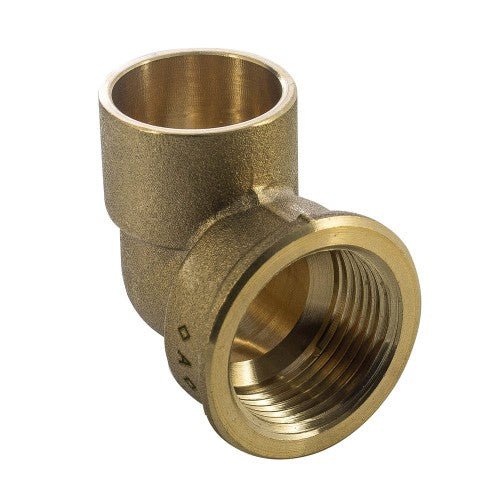

The 15mm × ½" End Feed Female Iron Elbow turns 15mm copper through 90° onto a ½" BSP female thread — soldered capillary joint on the copper end, female parallel thread on the other. For making a right-angle connection from 15mm pipework onto a threaded male tail or fitting. Manufactured to BS EN 1254 and fits copper tube to BS EN 1057.

Also known as: female iron elbow, FI elbow, female BSP elbow, threaded elbow, copper to iron elbow.

• Manufactured to BS EN 1254 for capillary (solder) fittings
• Female iron elbow — 15mm copper × ½" BSP female thread, 90°
• Fits copper tube to BS EN 1057
• WRAS approved
• Solder and flux required — not supplied; PTFE tape or jointing compound for the threaded joint
• Sold individually — buy exactly what the job needs
• Suitable for hot and cold water and heating services

End feed means a capillary joint: clean the tube and fitting, apply flux, heat evenly and feed lead-free solder to the mouth of the fitting until a ring forms. See our guide: How to solder end feed fittings.

Also in this range: couplers, elbows and the full end feed range. Ordering for a whole job? Use the bulk fittings matrix.
