McAlpine Trapped Shower Gully 50mm Seal - 110mm Vertical Outlet with 1 1/2" Side Inlet, 150mm Square Stainless Steel Tile, No Screws - TSG3-T150SS
Free Local Shipping
Free Local Shipping on orders over £100. Standard delivery to most UK postcodes within 2-3 working days. Express options available at checkout.
Contact Us
Give Us A Call +44 118 958 8882 Our team is here to help. We will provide expert advice on specifications, compatibility, and delivery options.
30-day Easy Return
30 days Easy Return — no questions asked. If you're not completely satisfied, send it back within 14 days for a full refund.

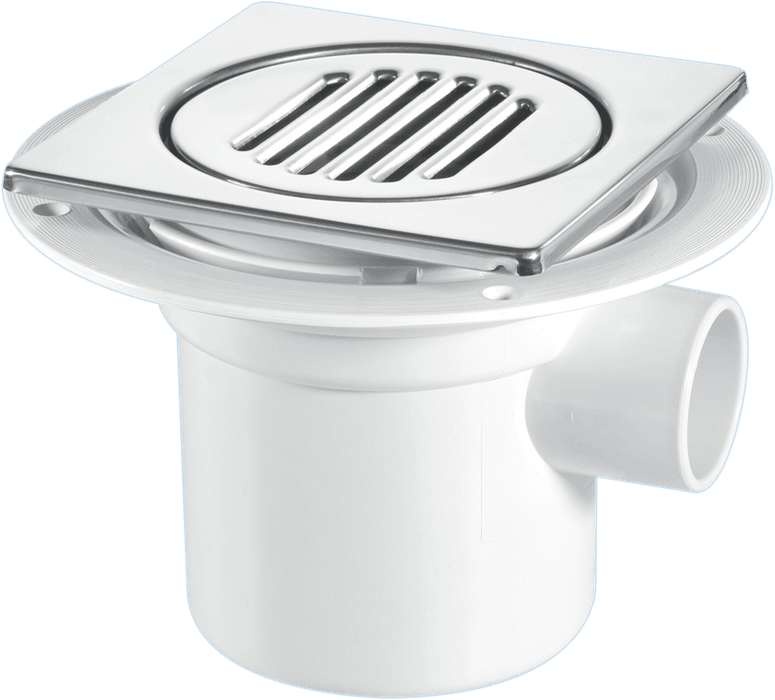

McAlpine TSG3-T150SS
The McAlpine TSG3-T150SS is a trapped shower gully with a 50mm water seal, a 110mm vertical outlet and a 1 1/2" side inlet for a separate waste pipe, for wet rooms and level-access showers. Supplied with a 150mm square polished stainless steel tile, no securing screws.
Specification
| Manufacturer part number | TSG3-T150SS |
|---|---|
| Water seal | 50mm |
| Outlet | 110mm or 1 1/2" solvent weld vertical |
| Side inlet | 1 1/2" solvent weld to BS EN 1329-1:2020 |
| Cover plate / grating | 150mm square polished stainless steel tile, no securing screws |
| Flow rate | 48 litres per minute |
| Overall height | 130mm |
| Body material | High quality ABS |
| Standards | BS EN 1253-1:2015 and BS EN 1253-2:2015 |
Features
- Top access for cleaning without lifting the gully.
- Removable sediment cup and dip tube assembly.
- Clamp ring secured by four M6 stainless steel screws.
- Suitable for concrete and suspended timber floors.
- Suits domestic wet rooms, disabled and student accommodation, bathroom pods, care homes, hotels, hospitals, sport and leisure.
The 1 1/2" side inlet is for a separate inlet ONLY. It may be blanked off if not used.
Trap seal depth is the responsibility of the installer or specifier under Building Regulations. Check the required seal depth before installation.
Do not pour drain cleaner into this product. Do not use acetoxy silicone with this product.
