McAlpine TSG3-R125SS

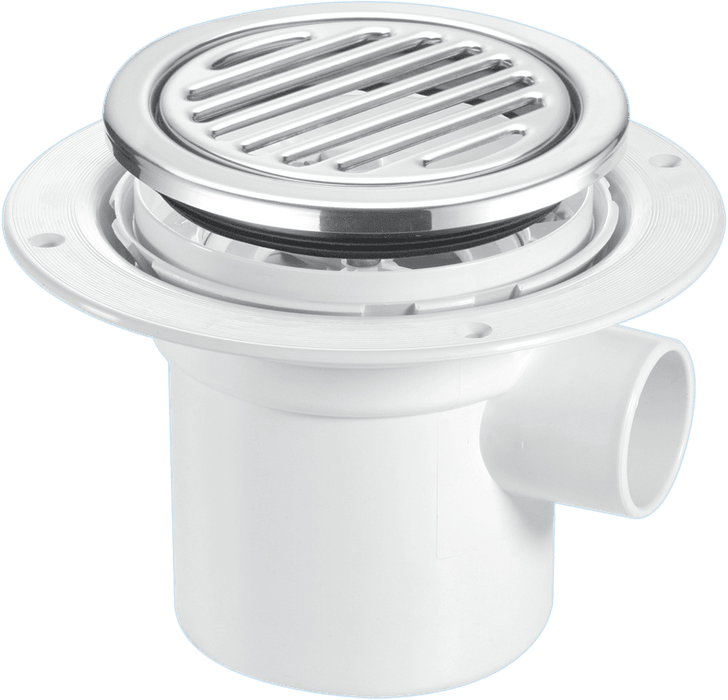

The McAlpine TSG3-R125SS is a trapped shower gully with a 50mm water seal, a 110mm vertical outlet and a 1 1/2" side inlet for a separate waste pipe, for wet rooms and level-access showers. Supplied with a 125mm circular polished stainless steel grating.
Specification
| Manufacturer part number | TSG3-R125SS |
|---|---|
| Water seal | 50mm |
| Outlet | 110mm or 1 1/2" solvent weld vertical |
| Side inlet | 1 1/2" solvent weld to BS EN 1329-1:2020 |
| Cover plate / grating | 125mm circular polished stainless steel grating |
| Flow rate | 48 litres per minute |
| Overall height | 130mm |
| Body material | High quality ABS |
| Standards | BS EN 1253-1:2015 and BS EN 1253-2:2015 |
Features
- Top access for cleaning without lifting the gully.
- Removable sediment cup and dip tube assembly.
- Clamp ring secured by four M6 stainless steel screws.
- Suitable for concrete and suspended timber floors.
- Suits domestic wet rooms, disabled and student accommodation, bathroom pods, care homes, hotels, hospitals, sport and leisure.
The 1 1/2" side inlet is for a separate inlet ONLY. It may be blanked off if not used.
Trap seal depth is the responsibility of the installer or specifier under Building Regulations. Check the required seal depth before installation.
Do not pour drain cleaner into this product. Do not use acetoxy silicone with this product.
