McAlpine TSG1SS-SL-SC

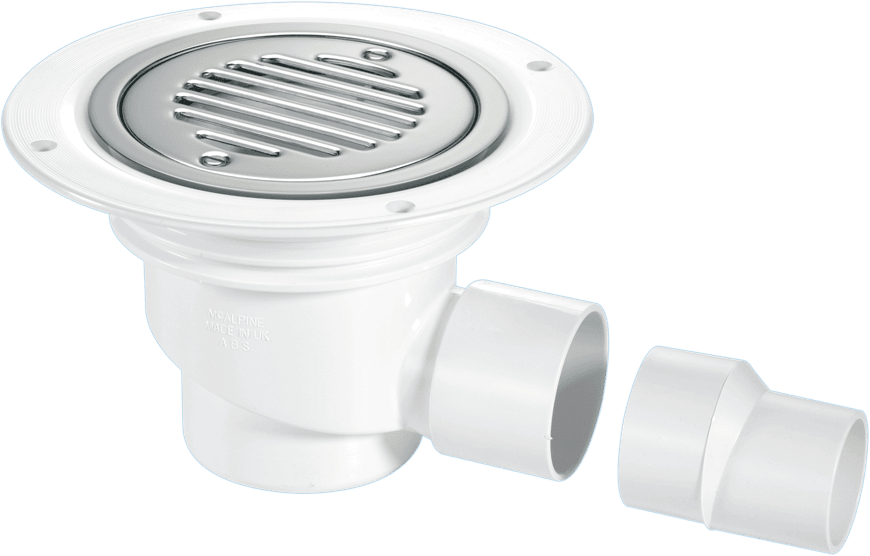

The McAlpine TSG1SS-SL-SC is a trapped shower gully with a 75mm water seal and a 2" horizontal outlet, for wet rooms and level-access showers. Supplied with a chrome plated brass cover plate with securing screws.
Specification
| Manufacturer part number | TSG1SS-SL-SC |
|---|---|
| Water seal | 75mm |
| Outlet | 2" horizontal |
| Socket reducer | 2" x 1 1/2" supplied |
| Cover plate / grating | Chrome plated brass cover plate with securing screws |
| Flow rate | 54 litres per minute |
| Overall depth | 130mm |
| Body material | High quality ABS |
| Standards | BS EN 1253-1:2015 and BS EN 1253-2:2015 |
Features
- Top access for cleaning without lifting the gully.
- Removable sediment cup and dip tube assembly.
- Clamp ring secured by four M6 stainless steel screws.
- Temporary cover plate included for air testing and protection during the build.
- Suitable for concrete and suspended timber floors.
Trap seal depth is the responsibility of the installer or specifier under Building Regulations. Check the required seal depth before installation.
Do not pour drain cleaner into this product. Do not use acetoxy silicone with this product.
