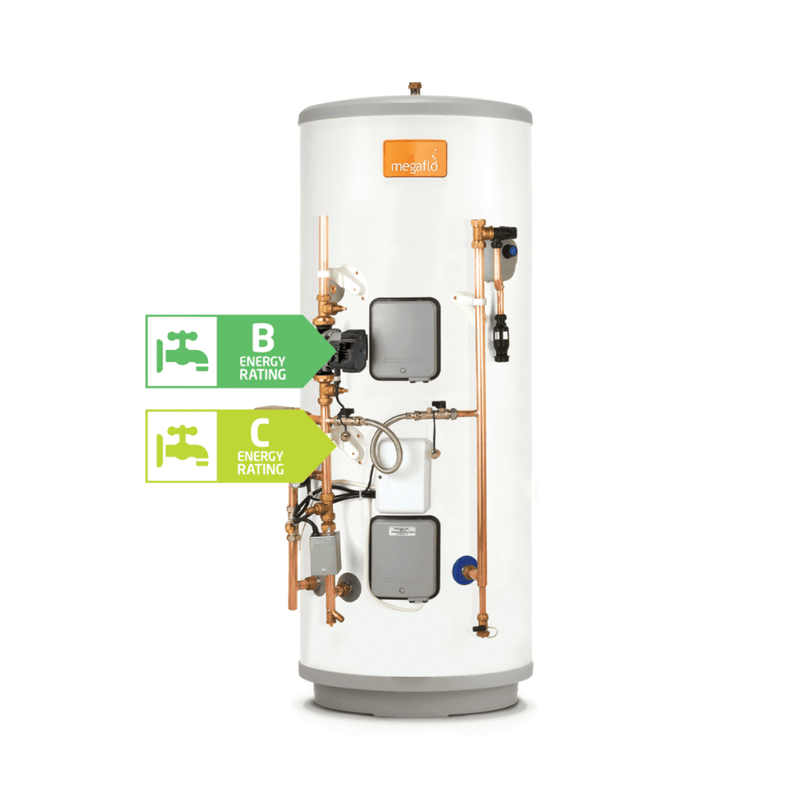

Megaflo Eco SystemFit 210SF Indirect Unvented Hot Water Cylinder - Getplumb

Megaflo Eco SystemFit 210SF Indirect Unvented Hot Water Cylinder

by Megaflo
SKU 95050453
£2,452.64 - £2,452.64
£2,452.64
£2,452.64 - £2,452.64
£2,452.64

Free Local Shipping

Free Local Shipping on orders over £100. Standard delivery to most UK postcodes within 2-3 working days. Express options available at checkout.

Contact Us

Give Us A Call +44 118 958 8882 Our team is here to help. We will provide expert advice on specifications, compatibility, and delivery options.

30-day Easy Return

30 days Easy Return — no questions asked. If you're not completely satisfied, send it back within 14 days for a full refund.

The Megaflo Eco SystemFit 210SF 210-litre indirect unvented hot water cylinder is designed for installation with a heat-only (regular) boiler. It builds on the standard Megaflo Eco design with factory-fitted plumbing and wiring, helping reduce installation time while providing a consistently neat and organised installation.

210L Capacity Indirect Unvented ERP Rating B Product Code 95050453
Capacity
210 Litres
Height
1486mm
Heat-Up Time
28 Minutes
ERP Rating
B

Applications & suitability

Heat-Only Boiler Systems
Designed specifically for installation with compatible heat-only (regular) boiler systems.
210-Litre Hot Water Storage
Provides a 210-litre nominal capacity for unvented hot water storage.
Factory-Fitted System
Factory-fitted plumbing and wiring help streamline installation and provide a neat finished appearance.
Unvented Installation
An indirect unvented cylinder with factory-integrated controls and system components.

Key specifications

Nominal Capacity 210 litres
Height 1486mm
Width 630mm
Depth 720mm
Weight Empty / Full 55kg / 254kg
Standing Heat Loss 1.42 kWh/24h
Maximum Flow at 3 bar 76 l/min
Maximum Flow at 1 bar 45 l/min
Heat-Up Time 28 min (15 l/min, 80°C primary, 15°C–60°C)
Recovery – 70% Draw-Off 19 min
Backup Immersion 1 × 3kW @ 240V
Operating Pressure 3 bar (0.3 MPa)
Maximum Mains Pressure 16 bar (1.6 MPa)
Minimum Recommended Supply Pressure 1.5 bar / 20 l/min
Inner Vessel High grade duplex stainless steel
Insulation 60mm CFC/HCFC-free polyurethane foam
ERP Rating B
Product Code 95050453

Installation & compatibility

The Megaflo Eco SystemFit 210SF is supplied with factory-fitted plumbing and wiring, including three 22mm 2-port motorised valves, a Grundfos UPM3 Auto L 25-70 primary circulation pump, wiring centre, lock shield flow balancing valve and automatic differential bypass valve. It is designed for use with a compatible heat-only (regular) boiler. The cylinder also incorporates an internal floating baffle expansion vessel, removing the requirement for a separate DHW expansion vessel.

Design & performance benefits

Factory-Fitted Plumbing & Wiring

Pre-fitted plumbing and wiring help reduce installation time and provide a consistently neat appearance.

Integrated Primary Pump

A factory-fitted Grundfos UPM3 Auto L 25-70 primary circulation pump is included as part of the SystemFit configuration.

Duplex Stainless Steel Vessel

The inner vessel is manufactured from high grade duplex stainless steel and surrounded by 60mm CFC/HCFC-free polyurethane foam insulation.

Internal Expansion Vessel

The internal floating baffle expansion vessel is built into the cylinder shell, eliminating the need for a separate DHW expansion vessel.

Additional installation features

Integrated Thermal Controls

Includes a pre-wired 1 × 3kW Superloy 825 alloy sheathed immersion heater with thermal controls.

Factory-Fitted Safety Components

Supplied with a 90°C / 10 bar T&P relief valve, insulation kit, 15/22mm tundish, 8 bar pressure relief valve with check valve and drain valve.

Cold Water Inlet Kit

Includes a 3 bar pressure reducing valve incorporating a strainer and check valve, compliant with BS EN 1567, BS EN 1491 and EN 13959.

Ideal for

The Megaflo Eco SystemFit 210SF 210L indirect unvented hot water cylinder is ideal for installations using a compatible heat-only (regular) boiler where factory-fitted plumbing and wiring can help streamline the installation process. With integrated motorised valves, primary circulation pump, safety components, thermal controls and internal expansion vessel, the SystemFit configuration provides a comprehensive cylinder solution in a compact 210-litre format.

Specifications

BrandMegaflo
Part Number95050453
Capacity210 litres
Height1486mm
Diameter630mm
Weight (empty)55kg
Weight (full)254kg
Standing Loss65W
Reheat Time28 mins
ErP Energy ClassB
DimensionsH: 1486mm × W: 630mm × D: 720mm
Warranty30 years inner tank, 2 years product
