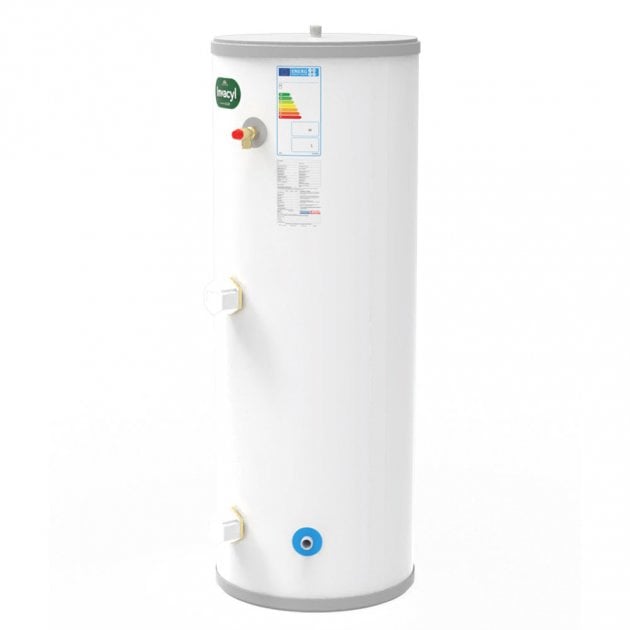

Joule Invacyl Unvented 150L Direct Cylinder Standard Stainless Steel - TRBMVD-0150LFB
Shipping time: 2–7 days
Please call us for precise delivery dates.
Get Free Delivery on Orders Over £60
For more details, please refer to our Shipping Information.
Description
The Joule Invacyl Unvented 150L Direct Cylinder (TRBMVD-0150LFB) is a high-performance, stainless steel indirect hot water cylinder designed for reliable domestic hot water storage. Built for unvented systems, it delivers consistent, controlled hot water at mains pressure for multiple outlets. Ideal for modern homes and renovation projects, it offers long-term durability, efficient thermal insulation and low heat loss to reduce running costs.
Key Features
- 150-litre capacity suitable for family-sized households
- LDX 2101 stainless steel cylinder for corrosion resistance and longevity
- Dense PU foam insulation (50 mm) for low heat loss (1.63 kWh/24h)
- Two immersion heaters (3 kW @ 230 V) for fast water recovery
- Coated mild steel outer casing for added protection and neat finish
- High mains pressure capability (up to 10 bar) and operating pressure 7 bar for reliable flow to multiple outlets
- Safety temperature up to 90°C and tested to BS EN 50440:2015 standard
- 25-year warranty for long-term peace of mind
Ideal Use Cases
- Residential homes needing mains-pressure hot water for showers, taps and appliances
- Renovation and retrofit projects replacing old vented cylinders with an unvented system
- Commercial buildings or small offices requiring dependable hot water storage
- Kitchens and bathrooms where multiple outlets may be used simultaneously
- Properties seeking a durable, low-maintenance cylinder with efficient heat retention
Product Specifications
| Specification | Value |
|---|---|
| Product model | TRBMVD-0150LFB |
| Actual capacity (L) | 150 |
| Unit weight empty (kg) | 33 |
| Unit weight full (kg) | 183 |
| Cylinder material | LDX 2101 (stainless steel) |
| Outer casing | Coated mild steel |
| Thermal insulation | Dense PU foam |
| Foam thickness (mm) | 50 |
| No. of immersions | 2 |
| Immersion spec (kW @ 230 V) | 3 kW @ 230 V |
| Max mains water pressure (Bar) | 10 |
| Operating pressure (T & P) (Bar) | 7 |
| Safety temperature (°C) | 90 |
| Heat loss (kWh/24h) | 1.63 |
| Tested to standard | BS EN 50440:2015 |
| Warranty terms (years) | 25Y |
