Joule Invacyl Unvented 120L Direct Cylinder Standard Stainless Steel - TRBMVD-0120LFB
Shipping time: 2–7 days
Please call us for precise delivery dates.
Get Free Delivery on Orders Over £60
For more details, please refer to our Shipping Information.
Description

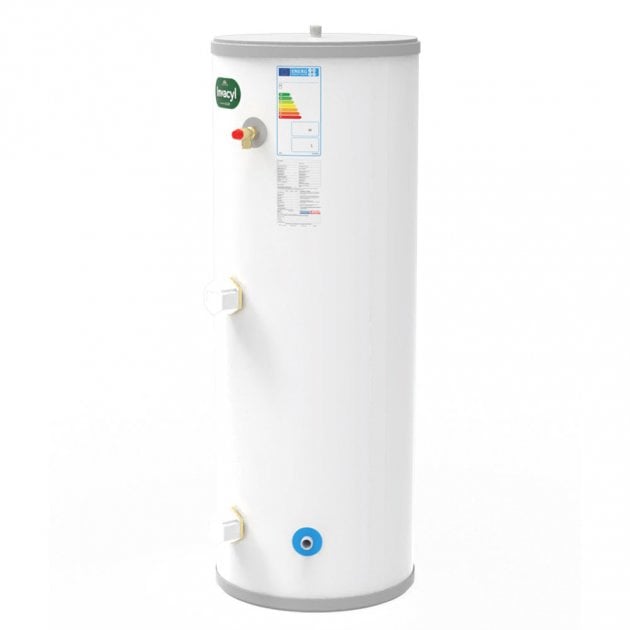

The Joule Invacyl Unvented 120L Direct Cylinder (TRBMVD-0120LFB) is a robust stainless-steel hot water storage cylinder designed for unvented systems. It provides mains-pressure hot water for multiple outlets with efficient thermal retention and reliable performance. Suited to family homes and retrofit projects, it combines durable construction, low heat loss and long-term warranty protection.
Key Features
- 120-litre capacity ideal for small to medium households
- LDX 2101 stainless steel cylinder for corrosion resistance and long life
- Dense PU foam insulation (50 mm) for excellent heat retention (1.44 kWh/24h)
- Two immersion heaters for fast recovery (3 kW @ 230 V)
- Coated mild steel outer casing for protection and neat appearance
- Supports high mains pressure (up to 10 bar) with operating pressure 7 bar for consistent flow
- Safety temperature up to 90°C; tested to BS EN 50440:2015
- 25-year warranty for lasting peace of mind
Ideal Use Cases
- Residential homes needing reliable mains-pressure hot water for showers, taps and appliances
- Renovation or retrofit projects replacing vented cylinders with an unvented solution
- Small commercial premises or offices requiring dependable hot water storage
- Kitchens and bathrooms where simultaneous use of multiple outlets occurs
- Properties seeking a low-maintenance, energy-efficient cylinder
Product Specifications
| Specification | Value |
|---|---|
| Product model | TRBMVD-0120LFB |
| Actual capacity (L) | 120 |
| Unit weight empty (kg) | 26 |
| Unit weight full (kg) | 146 |
| Cylinder material | LDX 2101 (stainless steel) |
| Outer casing | Coated mild steel |
| Thermal insulation | Dense PU foam |
| Foam thickness (mm) | 50 |
| No. of immersions | 2 |
| Immersion spec (kW @ 230 V) | 3 kW @ 230 V |
| Max mains water pressure (Bar) | 10 |
| Operating pressure (T & P) (Bar) | 7 |
| Safety temperature (°C) | 90 |
| Heat loss (kWh/24h) | 1.44 |
| Tested to standard | BS EN 50440:2015 |
| Warranty terms (years) | 25Y |
