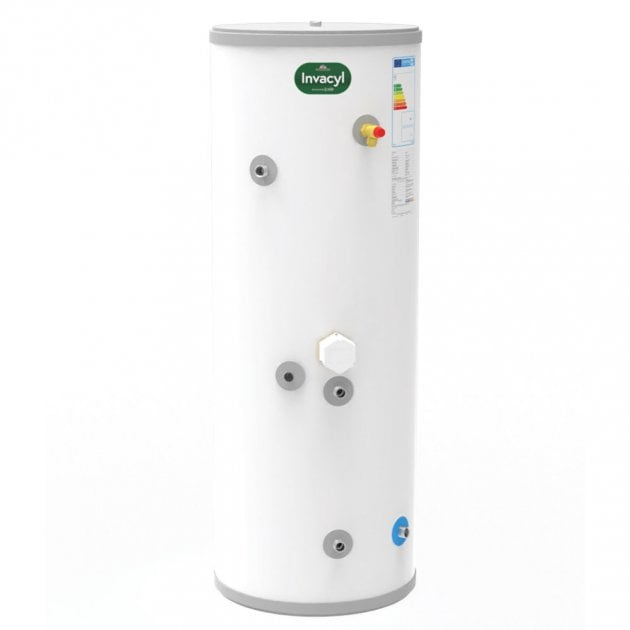

Joule Invacyl Standard In-Direct Unvented Cylinder 210 Litre - Stainless Steel

by Joule
SKU TRBMVI-0210LFC
Original price £561.49 - Original price £561.49
Original price
£561.49
£561.49 - £561.49
Current price £561.49

Free Local Shipping

Free Local Shipping on orders over £100. Standard delivery to most UK postcodes within 2-3 working days. Express options available at checkout.

Contact Us

Give Us A Call +44 118 958 8882 Our team is here to help. We will provide expert advice on specifications, compatibility, and delivery options.

30-day Easy Return

30 days Easy Return — no questions asked. If you're not completely satisfied, send it back within 14 days for a full refund.

The Joule Invacyl Standard In-Direct Unvented Cylinder 210 Litre is a durable stainless-steel hot water storage cylinder designed for mains-pressure hot water systems. Providing 205.3 litres of actual storage capacity, it uses a 316L stainless-steel indirect coil to transfer heat from a primary heating source such as a boiler, heat pump or solar thermal system. Manufactured with an LDX 2101 stainless-steel cylinder and coated mild steel outer casing, the Invacyl combines robust construction with dense PU foam insulation to help minimise heat loss. With a 7 bar operating pressure, 10 bar maximum mains water pressure and a 25-year warranty, it is suited to long-term domestic and light commercial hot water installations.

205.3L Actual Capacity Indirect 316L Coil 7 Bar Operating Pressure 25 Year Warranty
Actual Capacity
205.3L
Hot water storage
Coil Rating
12.67kW
316L stainless steel
Max Mains Pressure
10 bar
Mains water pressure
Warranty
25 Years
Warranty terms

Applications & suitability

Family Homes & Apartments

Suitable for homes and apartments requiring reliable mains-pressure hot water storage with 205.3 litres of actual capacity.

Boilers, Heat Pumps & Solar Thermal

The indirect 316L stainless-steel coil can be used with primary heating systems including boilers, heat pumps or solar thermal sources.

New-Build & Renovation

A practical standard-sized unvented cylinder option for renovation projects and new-build installations.

Utility & Plant Rooms

Suitable for utility rooms and compact plant rooms requiring durable, insulated hot water storage.

Key specifications

Product Model Joule Invacyl Standard In-Direct Unvented Cylinder 210 Litre
Product Type Indirect Unvented Hot Water Cylinder
Actual Capacity 205.3 litres
Max Mains Water Pressure 10 bar
Operating Pressure 7 bar
Operating Temperature 60°C
Safety Valve Temperature 90°C
Unit Weight Empty 45kg
Unit Weight Full 250kg
Cylinder Material LDX 2101 Stainless Steel
Outer Casing Coated Mild Steel
Thermal Insulation Dense PU Foam
Foam Thickness 0
Heat Loss 1.536 kW/24h
Coil Material 316L Stainless Steel
Coil Rating 12.67kW
Coil Surface Area 0.67m²
Coil Max Primary Pressure 6 bar
Coil Resistance 0.2 bar
Immersion Specification 3kW @ 230V
Number of Immersions 1
Number of Heat Exchangers 1
Tested to Standard BS EN 12897:2016
Warranty 25 Years

Installation & compatibility

Indirect mains-pressure installation: The Joule Invacyl Standard In-Direct is designed for unvented hot water systems and uses a 316L stainless-steel coil to heat stored water indirectly from a primary heating source. The cylinder has a maximum mains water pressure of 10 bar and an operating pressure of 7 bar, with a 90°C safety valve temperature. Its 3kW @ 230V immersion specification provides an additional immersion heating provision.

Design & performance benefits

LDX 2101 Stainless Steel

The cylinder uses LDX 2101 stainless steel for its inner vessel, combined with a coated mild steel outer casing.

316L Stainless-Steel Coil

The 316L stainless-steel indirect coil has a 12.67kW rating and 0.67m² surface area for indirect hot water heating.

Mains-Pressure Operation

Designed for mains-pressure hot water systems with 7 bar operating pressure and up to 10 bar maximum mains water pressure.

Long-Term Warranty

Supplied with a 25-year warranty according to the stated warranty terms.

Additional installation features

Indirect Heating Coil

A single 316L stainless-steel heat exchanger coil is supplied with a 12.67kW rating and 6 bar maximum primary pressure.

Immersion Provision

Includes a 3kW @ 230V immersion specification with one immersion provision.

BS EN 12897:2016

The cylinder is tested to BS EN 12897:2016 according to the supplied product specification.

Ideal for

The Joule Invacyl Standard In-Direct Unvented Cylinder 210 Litre is ideal for family homes, apartments and light commercial settings requiring reliable mains-pressure hot water storage. Its 205.3-litre actual capacity, 316L stainless-steel indirect coil, LDX 2101 stainless-steel vessel and dense PU foam insulation make it a suitable option for new-build and renovation projects. With compatibility with primary heating sources such as boilers, heat pumps and solar thermal systems, plus a 3kW immersion specification and 25-year warranty, it provides a durable solution for long-term hot water storage.

Specifications

BrandJoule
Part NumberTRBMVI-0210LFC
EAN5060518967658
Capacity210 litres
Height1470mm
Diameter545mm
Weight (empty)45kg
Weight (full)250kg
Standing Loss80W
Reheat Time45 mins
Primary Coil Rating12.67kW
ErP Energy ClassC
Power3kW / 230V AC ~50Hz / Single Phase
ModesOFF, ECO, MANUAL, OPK (Off Peak)
MountingFloor Standing (Vertical)
FinishCoated Mild Steel Outer Casing / Stainless Steel Cylinder
DimensionsH: 1470mm / Diameter: 545mm
Warranty25 Years
