Certified under the BSI Kitemark scheme (KM 598726) and manufactured to BS/EN 15266, the FlexiGas DS-50 bends easily by hand to create long continuous runs. The pipe-in-pipe design combines an inner corrugated stainless steel gas pipe with a yellow PE cover inside a V0 fire-rated corrugated sleeve, providing a slidable configuration that allows the CSST to be inserted and withdrawn.
DN50 / 50mm
25m Boxed Coil
BSI Kitemark KM 598726
0.5 bar Max Pressure
50mm CSST
DN50 flexible corrugated stainless steel gas pipe with a 50mm internal diameter.

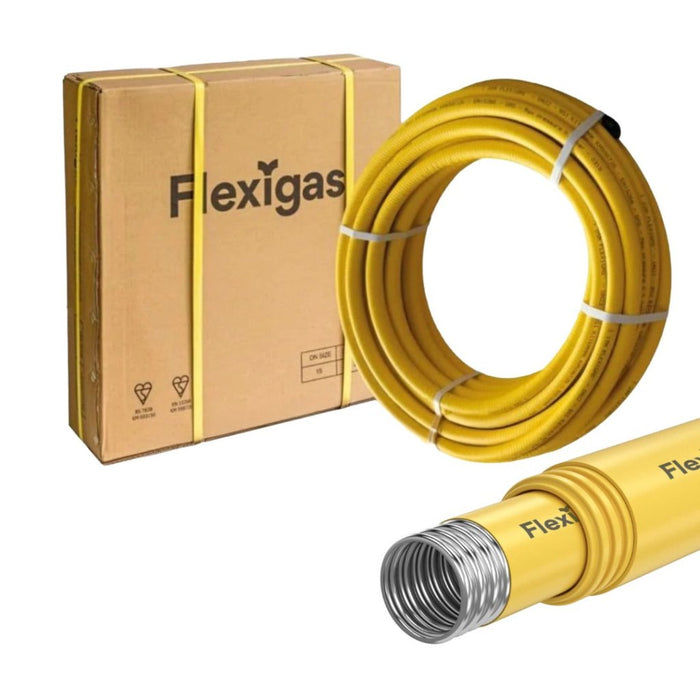

25m Continuous Run
Supplied as a 25-metre boxed coil for long continuous installations.
Built-In Sleeve
Pre-sleeved design for the specified installation environments without additional sleeving.
Fire Tested
EN 1775 Annex A & B fire tested with a B-s1 d0 UV-resistant jacket.
Applications & suitability
Plant Rooms
Suitable for commercial and industrial gas installations running 50mm mains to plant rooms.
Commercial Kitchens
Designed for larger gas installations serving commercial kitchen applications.
Multi-Appliance Systems
Suitable for installations where a 50mm gas supply serves multiple appliances.
Challenging Routes
Can be routed through walls, floors, screed, soil and specified unventilated areas.
Key specifications
| Manufacturer / MPN |
FlexiGas™ / DS-50-25 |
| Size |
DN50 (50mm) |
| Length |
25 metres – boxed coil |
| CSST Outer / Internal Diameter |
60mm / 50mm |
| Total Maximum Diameter Including Sleeve |
73mm |
| Maximum Operating Pressure |
0.5 bar (BS/EN 15266) |
| Tubing Material |
1.4404 / 1.4541 stainless steel (BS/EN 10088) |
| Fire Performance |
EN 1775 Annex A & B passed; jacket B-s1 d0, UV resistant |
| Certification |
BSI Kitemark KM 598726, EN 15266 |
| Colour |
Yellow |
| Warranty |
1 year (subject to manufacturer's T&Cs) |
Installation & compatibility
The FlexiGas DS-50 features a patent-pending pipe-in-pipe configuration consisting of an inner corrugated stainless steel gas pipe with yellow PE cover, positioned inside a V0 fire-rated corrugated sleeve. The slidable configuration allows the CSST to be inserted and withdrawn.

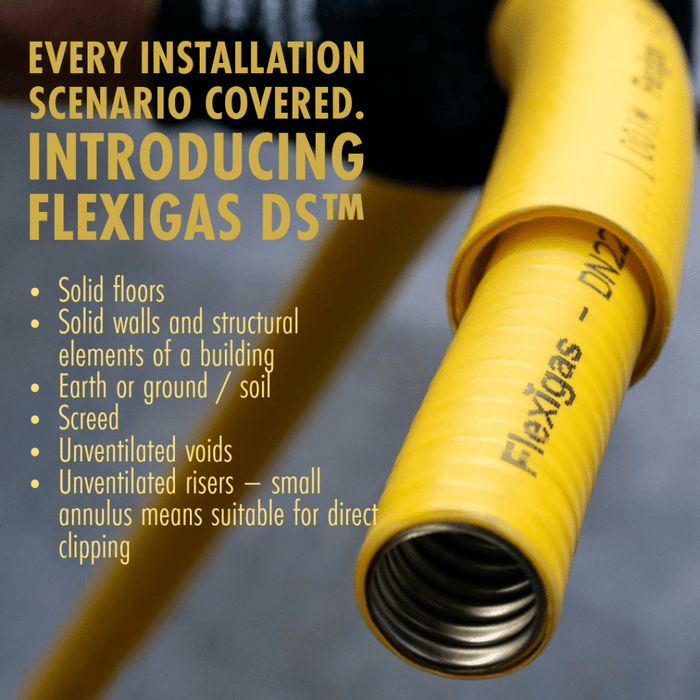

The integrated sleeve is specified for installation through solid floors, solid walls, structural elements, earth/soil, screed, unventilated voids and unventilated risers. For connections, the pipe pairs with FlexiGas™ DN50 male BSP adaptors and straight unions in dezincification-resistant brass. Installation must comply with applicable gas installation regulations and manufacturer requirements.
Design & performance benefits

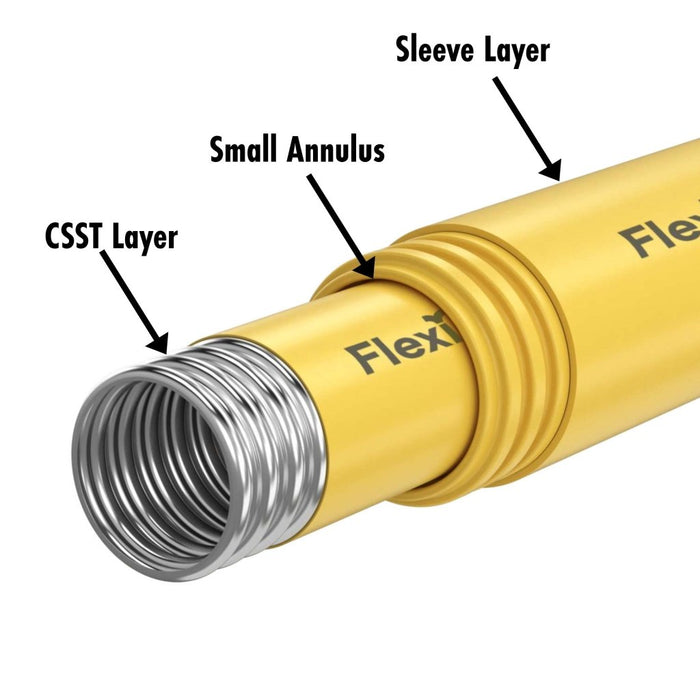

Pipe-in-Pipe Design
Twin-layer construction combines the flexible CSST gas pipe with an integrated corrugated protective sleeve.
Hand-Bendable CSST
The flexible tubing bends by hand to help create long continuous gas pipe runs.
Metal-to-Metal Seal
Designed to pair with FlexiGas DN50 male BSP adaptors and straight unions for secure connections.
Fire Performance
Passed EN 1775 Annex A & B fire testing with a B-s1 d0 UV-resistant jacket.
Additional installation features
Integrated Earthing Ready
FG Bond™ ready when paired with the integrated earthing terminal certified to BS 951:2009.
Metre-Marked Tubing
Metre markings help provide convenient measurement during installation.
Silicone Tape Included
Each box includes one free roll of silicone tape for on-site use.
Ideal for
The FlexiGas 50mm Double Sleeved Flexible Gas Pipe DS-50 – 25m Box is ideal for commercial and industrial gas engineers installing 50mm gas mains to plant rooms, commercial kitchens and multi-appliance installations. Its integrated sleeve, flexible CSST construction, fire-tested design and compatibility with FlexiGas DN50 fittings make it suited to installations requiring flexible routing through walls, floors, screed and specified unventilated areas without additional sleeving.
