FlexiGas 22mm Double Sleeved Flexible CSST Gas Pipe - 50m Spool

by FlexiGas
SKU DS-22-50
£592.74 - £592.74
£592.74
£592.74 - £592.74
£592.74

Free Local Shipping

Free Local Shipping on orders over £100. Standard delivery to most UK postcodes within 2-3 working days. Express options available at checkout.

Contact Us

Give Us A Call +44 118 958 8882 Our team is here to help. We will provide expert advice on specifications, compatibility, and delivery options.

30-day Easy Return

30 days Easy Return — no questions asked. If you're not completely satisfied, send it back within 14 days for a full refund.

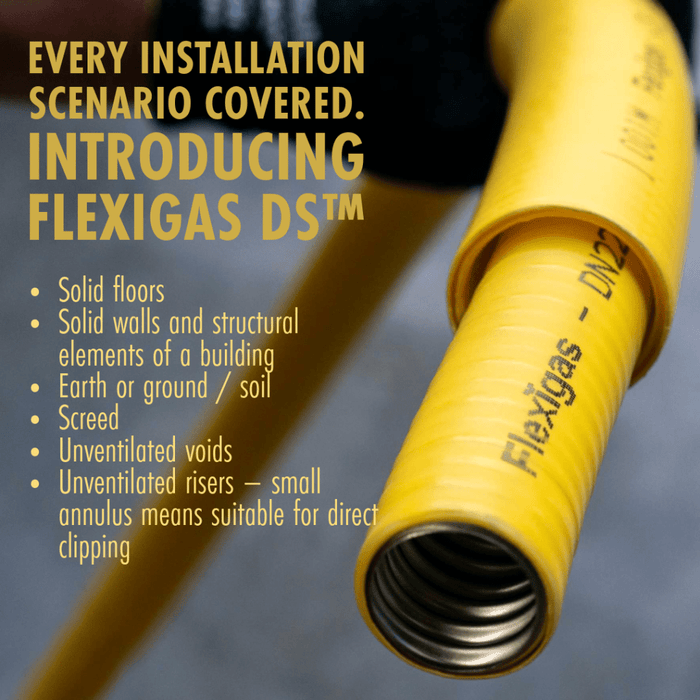

The FlexiGas 22mm Double Sleeved Flexible Gas Pipe (DS-22) – 50m Spool is a pre-sleeved, twin-layer CSST gas pipe designed to cover a wide range of UK installation scenarios directly from the spool. It can be routed through solid walls, solid floors, screed, soil, unvented voids and unventilated risers without requiring additional sleeving on site.

Manufactured to BS/EN 15266 and certified under the BSI Kitemark scheme KM 598726, the FlexiGas DS-22 bends easily by hand for long continuous runs. Its pipe-in-pipe construction, reduced number of joints and flame-free installation can help make installation faster than traditional copper or rigid steel pipework.

DN22 / 22mm 50m Spool BSI Kitemark KM 598726 BS/EN 15266
Pipe Size
22mm / DN22
Spool Length
50 metres
Max Operating Pressure
0.5 bar
Warranty
1 Year

Applications & suitability

Boiler Installations

A 22mm flexible gas pipe solution suited to regular boiler installation work and long continuous runs.

Solid Walls & Floors

The built-in sleeve allows installation through solid walls and solid floors without additional sleeving on site.

Screed, Soil & Voids

Designed for use through screed, soil, unvented voids and unventilated risers within the stated installation requirements.

Multiple Installation Jobs

The 50m spool is suitable for Gas Safe engineers and contractors carrying out regular 22mm gas installation work.

Key specifications

Manufacturer / MPN FlexiGas™ / DS-22-50
Product Type Double Sleeved Flexible Gas Pipe
Size DN22 (22mm)
Length 50 metres – Spool
CSST Outer Diameter 25.6 mm
CSST Internal Diameter 21.4 mm
Total Maximum Diameter Including Sleeve 35 mm
Maximum Operating Pressure 0.5 bar (BS/EN 15266)
Tubing Material 1.4404 / 1.4541 Stainless Steel (BS/EN 10088)
Fire Performance EN 1775 Annex A & B Passed; Jacket B-s1 d0, UV Resistant
Certification BSI Kitemark KM 598726, EN 15266
Colour Yellow
Warranty 1 Year (subject to manufacturer's T&Cs)

Installation & compatibility

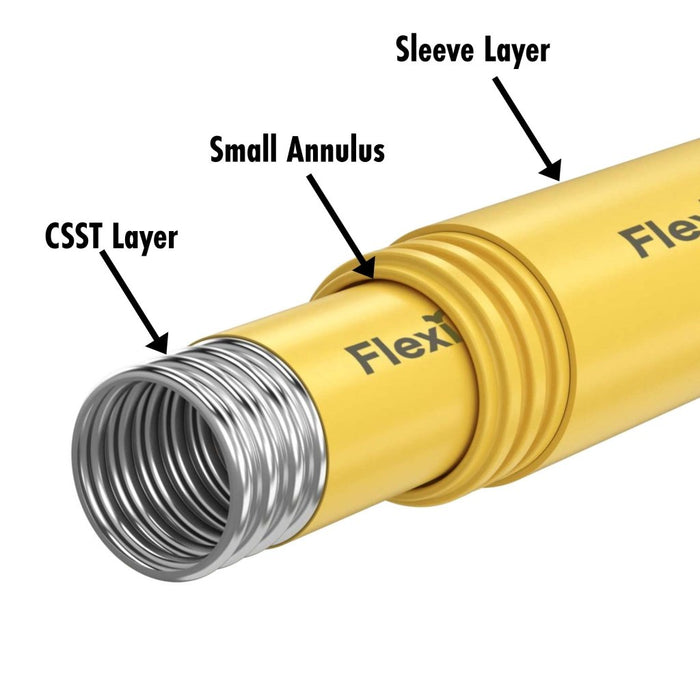

The FlexiGas DS-22 features a patent-pending pipe-in-pipe construction consisting of a corrugated stainless steel gas pipe with a yellow PE cover, positioned inside a V0 fire-rated corrugated sleeve in a slidable configuration. The built-in sleeve is designed to meet the stated sleeve requirements of BS 6891 and IGEM/UP/2, 3 & 7, allowing the pipe to be used across the specified installation scenarios without additional sleeving.

Design & performance benefits

Fast, Flame-Free Installation

The pipe bends by hand and can form long continuous runs without soldering, sealants or specialist tools.

Pipe-in-Pipe Construction

The slidable pipe-in-pipe design allows the CSST to be inserted and withdrawn within the protective sleeve.

Fewer Joints

Flexible continuous runs can reduce the number of joints and potential leak points compared with traditional rigid pipework.

FGLink™ Compatible

Compatible with the FlexiGas FGLink™ range of 130+ dezincification-resistant brass fittings.

Additional installation features

FG Bond™ Ready

Features an integrated earthing terminal certified to BS 951:2009 for compatibility with the FG Bond™ system.

Easy Identification

The pipe features metre markings and a high-visibility yellow jacket for easier identification and installation.

Silicone Tape Included

Each 50m spool includes one free roll of silicone tape.

Ideal for

The FlexiGas 22mm Double Sleeved Flexible Gas Pipe DS-22 – 50m Spool is ideal for Gas Safe engineers and contractors carrying out regular 22mm boiler and gas installation work. The 50m spool is designed for multiple installation jobs and can help reduce wastage while providing a practical solution for long continuous runs. It pairs with the FlexiGas spool roller, DS end caps and FGLink™ fittings for a complete installation system.

Specifications

BrandFlexiGas
Part NumberDS-22-50
EAN5060951310578
Warranty1 Year
